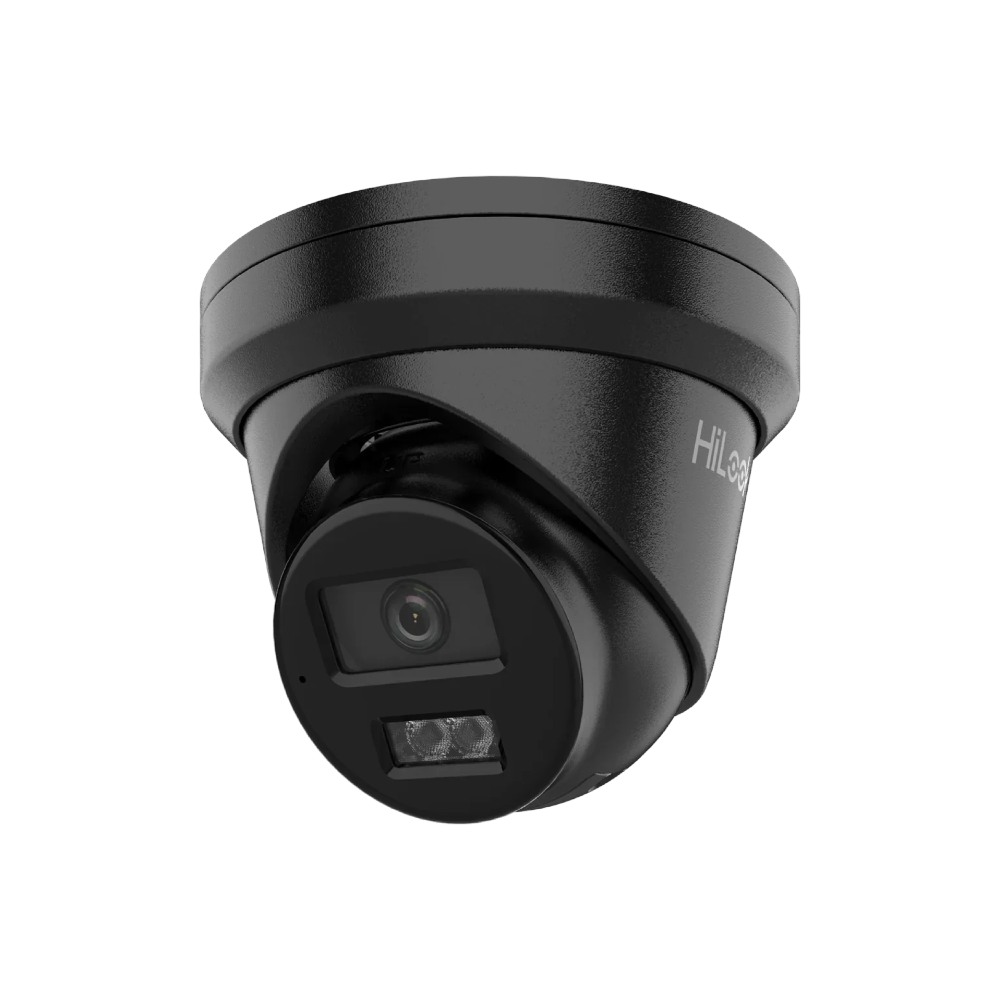

HiLook IPC-T361H-MU-BLK-2.8MM

Camera

• Image Sensor: 1/2.4″ Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region Of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32kHz/48kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 11; Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• Built-In Microphone: Yes
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
• Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion; Support alarm triggering by specified target types (human and vehicle)

General

• Power: 12 VDC ± 25%, 0.66 A, max. 8W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.5W
• Material: Metal
• Dimension: Ø127.3 mm × 96.3 mm (Ø5.0″ × 3.8″)
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 515 g (1.1 lb.)
• With Package Weight: Approx. 755 g (1.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, flash-log, anti-banding, mirror, password protection, password reset via email, pixel counter

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015

• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1

• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006

• Protection: IP67: IEC 60529-2013
