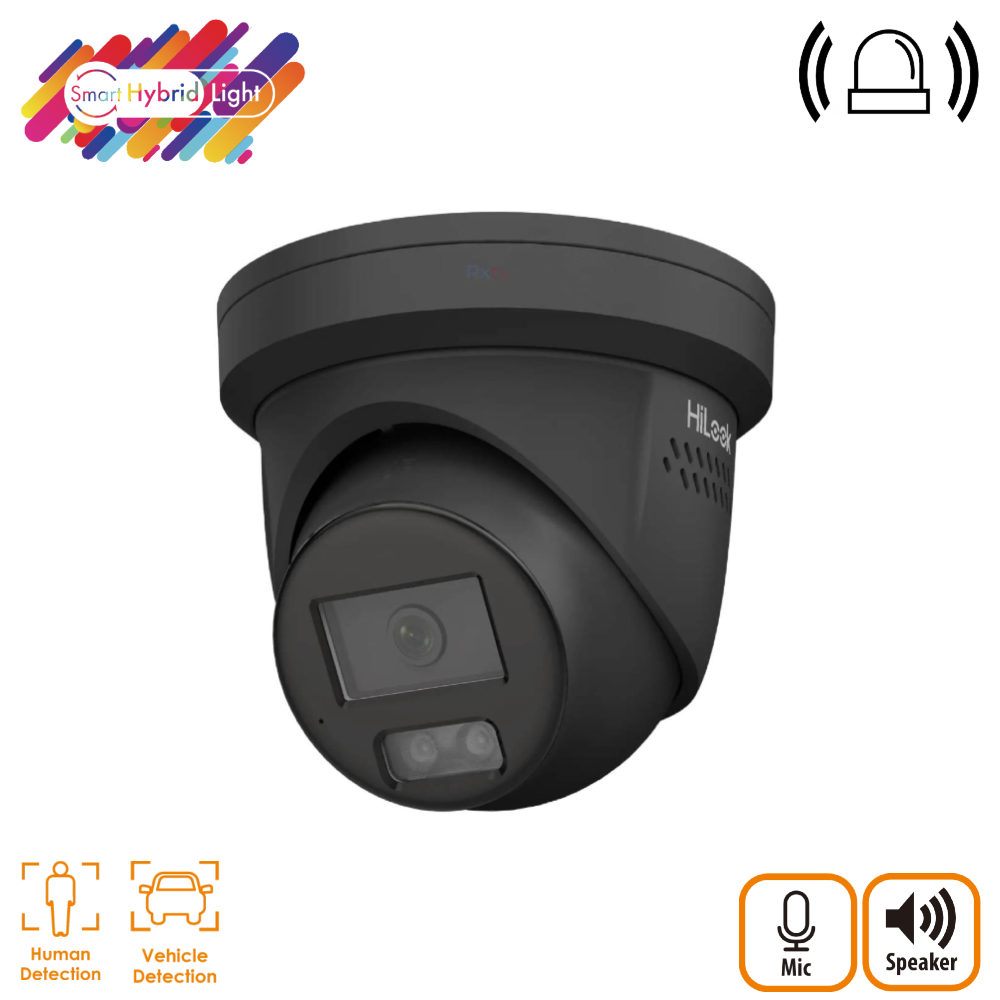

HiLook IPC-T269H-MU/SL-BLK-2.8MM

HiLook IPC-T269H-MU/SL-BLK-2.8MM Ai Deep-Learning H265 6MP Dual-Light (30m IR + 30m White-Light) Full-Colour 120dB True-WDR Low-Light (0.003 Lux Colour) Active-Deterrence (Strobe + Siren) Weatherproof Eyeball BLACK Turret Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker

  • Hikvision DS-1280ZJ-DM21-BLACK

    Hikvision DS-1280ZJ-DM21-BLACK Weatherproof Junction Box - Black

  • Hikvision DS-1273ZJ-140-BLACK

    Hikvision DS-1273ZJ-140-BLACK Weatherproof Wall-mount Bracket - Black Colour

  • Hikvision DS-1275ZJ-SUS-BLK

    Hikvision DS-1275ZJ-SUS-BLK Stainless Steel Weatherproof Universal Vertical Pole-mount Bracket - BLACK Colour

This product is currently unavailable.

HiLook IPC-T269H-MU/SL-BLK-2.8MM Ai Deep-Learning H265 6MP Dual-Light (30m IR + 30m White-Light) Full-Colour 120dB True-WDR Low-Light (0.003 Lux Colour) Active-Deterrence (Strobe + Siren) Weatherproof Eyeball BLACK Turret Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker

Features :-

  • Active Colour Deterrence 6MP high resolution camera
  • Alarms, notifications, any audio clips can be broadcasted by camera when event occurs. Users can use Mobile App to customize audio message easily.
  • Working with Intelligent human & vehicle classification technology to reduce FALSE alarm.
  • Strobe light alarm and Audio alarm to warn intruders off in real-time
  • The All-in-One camera has colourful images at night with White light supplement
  • Working with Hilook NVR (new firmware needed), you can simply control alarms with one tap on the easy-to-use mobile APP HiLookVision
  • IP67 Ingress Protection
  • One Tap to Alarm / Disarm with Mobile APP

Camera

  • Image Sensor: 1/2.4″ Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with white light B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

  • Lens Type: Fixed lens, 2.8, 4, and 6 mm optional
  • Iris Type: Fixed
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
  • Aperture: F1.6
  • Lens Mount: M12

Illuminator

  • Supplement Light Type: White light & IR
  • Supplement Light Range: IR Range: Up to 30m ; White light Range: Up to 30m
  • Smart Supplement Light: Yes

Video

  • Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • User/Host: Up to 32 users 3 levels: administrator, operator, and user
  • Network Storage: Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


  • Day/Night Switch: Day,Night,Auto,Schedule
  • Image Enhancement: BLC,HLC,3D DNR
  • Image Settings: Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser
  • Privacy Mask: 4 regions of privacy masks
  • Wide Dynamic Range (WDR): 120 dB

Interface

  • Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Built-In Microphone: Yes
  • Built-In Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Reset Key: Yes
  • Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection(human and vehicle targets classification)
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password protection, password reset via email
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power: 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.7 W
  • Material: Metal except for trim ring
  • Dimension: Ø 138.3 mm× 112.1 mm (Ø 5.4″ × 4.4″)
  • Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
  • Weight: Approx. 820 g (1.8 lb.)
  • With Package Weight: Approx. 1150 g (2.5 lb.)

Approval

  • EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
  • Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013
