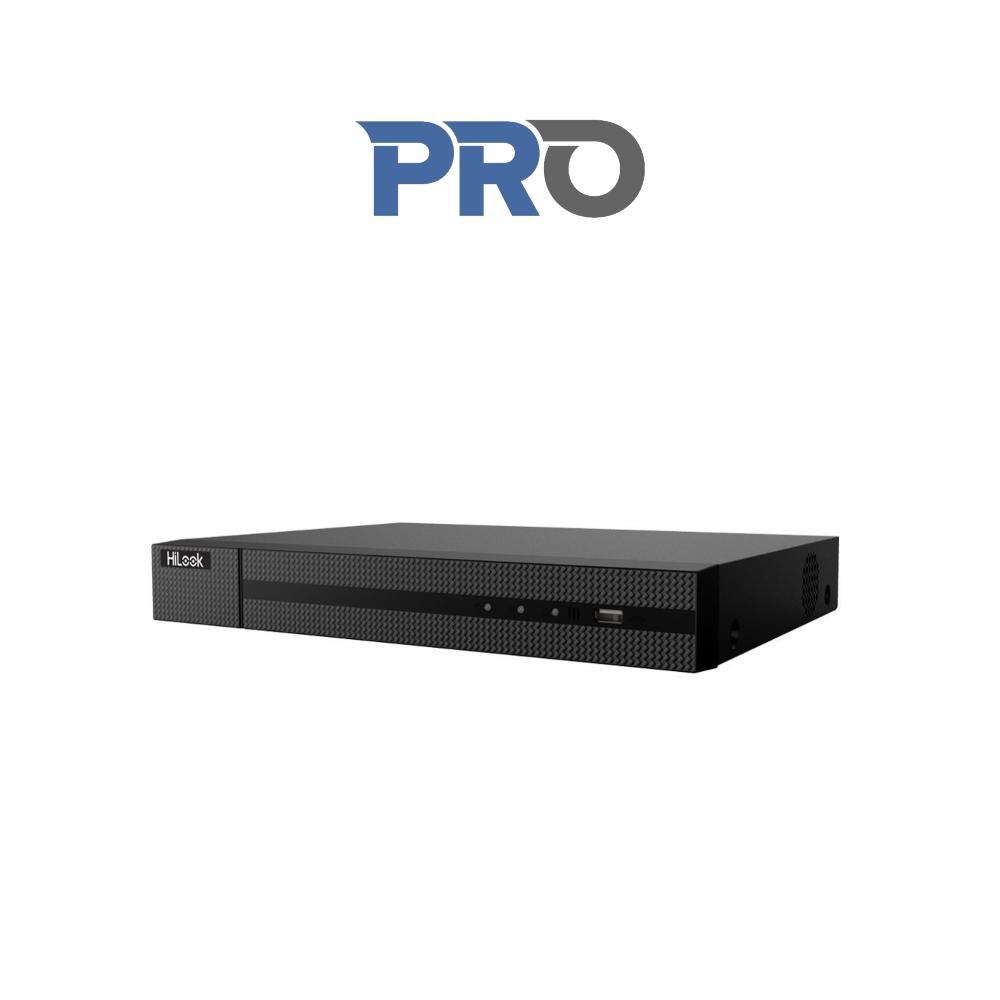

HiLook NVR-216MH-K/16P

Intelligent Analytics

• AI by Device: Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance: 1-ch, 8MP
• Face Picture Comparison: 4-ch

Motion Detection 2.0

• By Camera: All channels

Perimeter Protection

• By Device: 2-ch, 4MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera: All channels

Video and Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI / VGA independent output
• CVBS Output: N/A
• Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format: H.265/H.265+/H.264+/H.264
• Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous playback: 16-ch
• Decoding Capability:
  • • AI on: 2-ch @ 12MP (30 fps) / 3-ch @ 8MP (30 fps) / 6-ch @ 4MP (30 fps) / 12-ch @ 1080p (30 fps)
    • AI off: 2-ch @ 12 MP (30 fps) / 4-ch@ 8MP (30 fps) / 8-ch @ 4MP (30 fps) / 16-ch @ 1080p (30 fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

• Remote Connection: 128
• API: ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16* RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 200 W
• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 2* SATA interfaces
• Capacity: Up to 16TB capacity for each HDD
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out: 4/1

General

• GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight: ≤ 3 kg (without HDD, 6.6 lb.)

Certification

• CEL EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
