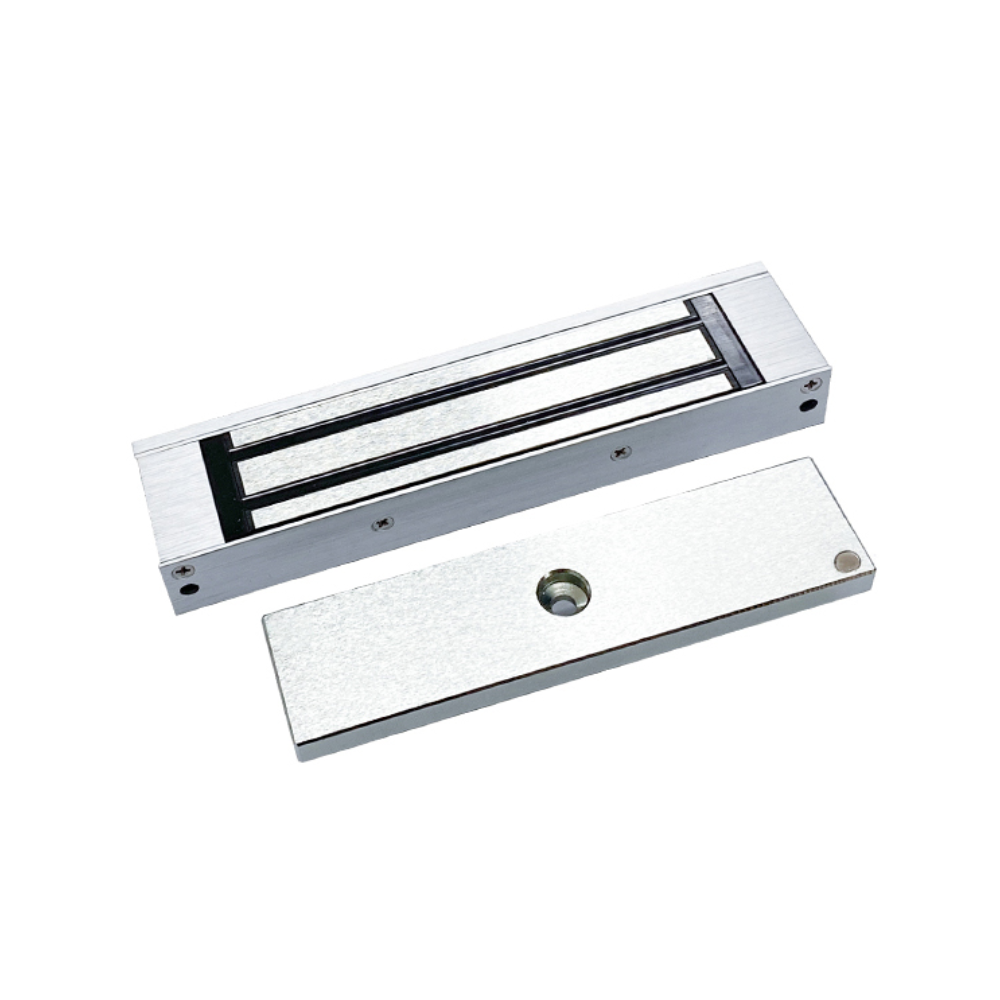

OneTop CCW30S DSS Single Door Surface-Mount Electromagnetic Lock – Micro / Mini Size – 12VDC/24VDC Powered – 165KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating
SKU: CCW30S DSS
Categories: Access Control, Electronic Locks, Locks, Mag Locks & Accessories
Tags: Access Control, Black, Electromagnetic Lock, Fail-safe, Lock, Maglock, Onetop
OneTop CCW30S DSS Single Door Surface-Mount Electromagnetic Lock – Micro / Mini Size – 12VDC/24VDC Powered – 165KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating
Key Features :-
- * Dimensions: 165L x 38.5W x 21D (mm)
* Holding Force: Up to 165Kg
* Dual voltage 12/24VDC
* Current draw: 360mA 122VDC, 180mA 24VDC
* 2 Hour fire rating
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
* Surface Finish – Anodized Aluminium housing Zinc plated for anti-corrosion
Specifications
- Fail Safe: Power to lock
- Dimension: Lock body: L 166 x W 38.5 x H 21.5mm (Single); Armature Plate : L 130 x W 32 x H 8.5mm
- Weight: 1Kg
- Operating Voltage: 12/24VDC ±10%
- Operating Current: 12VDC – 370mA; 24VDC – 185mA
- Holding Force: 165Kg
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Output Signals:
- Lock Status Sensor (LSS): COM/NO/NC: Max 24VDC; Max 2A
- Door Status Sensor (DSS): COM/NO: Max 24VDC; Max 0.3A
- Backlight: Red/Green/Of
- Surface Finishes: Anodized Aluminum Housing – High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)
