Wi-Tek WI-CGS5018

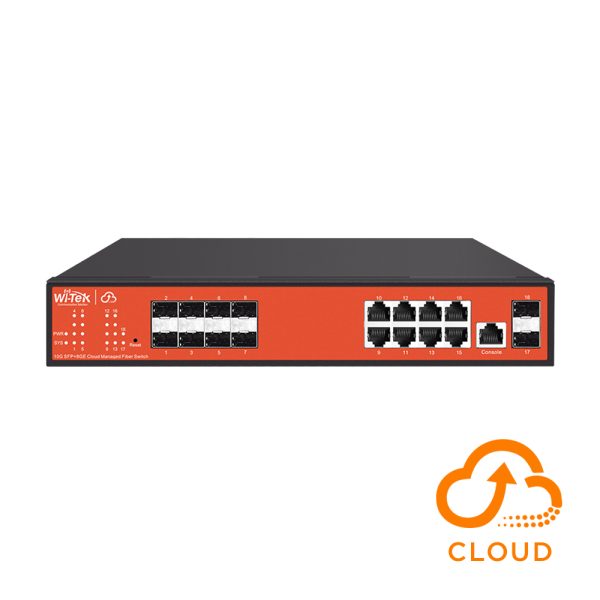

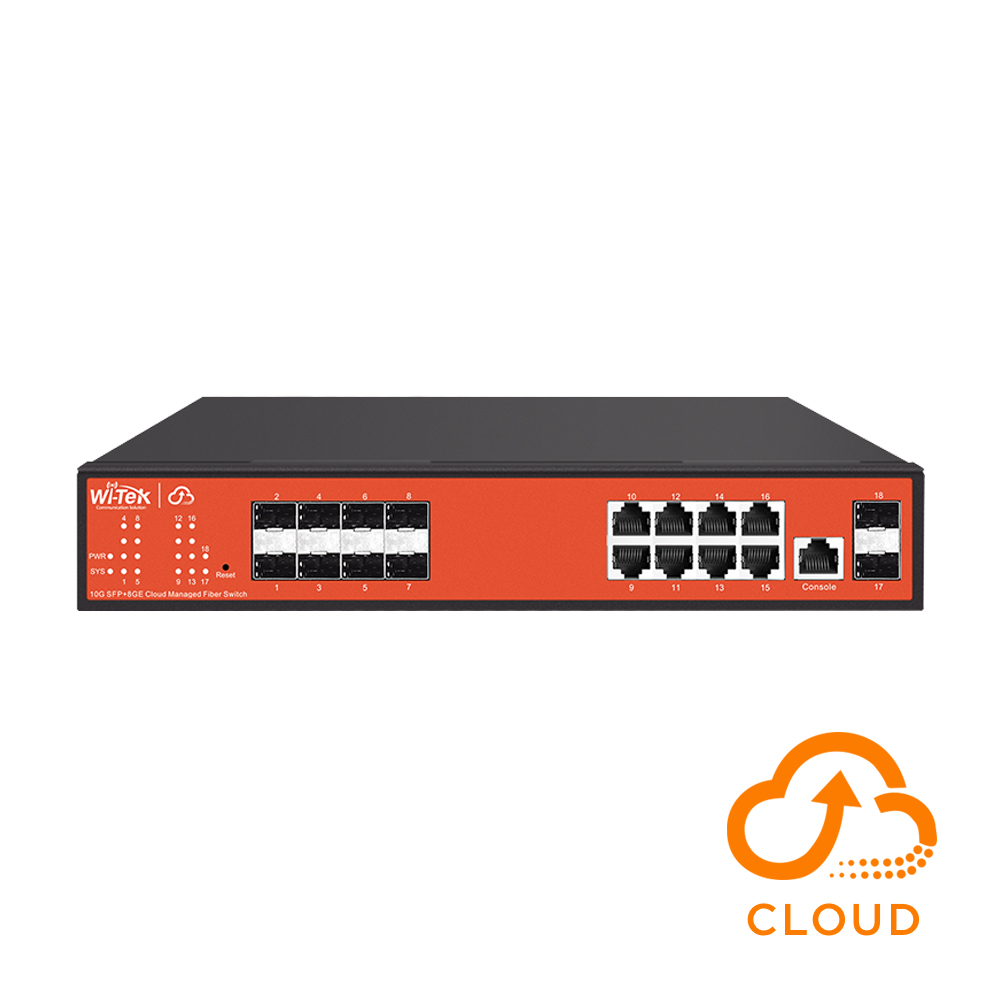

Wi-Tek WI-CGS5018 Cloud L2 Managed Fiber Switch -10 * Gigabit SFP Ports + 8 * Gigabit Ethernet Ports

SKU: WI-CGS5018 Categories: , Tags: , , , , , , , , , ,

Wi-Tek WI-CGS5018 Cloud L2 Managed Fiber Switch -10 * Gigabit SFP Ports + 8 * Gigabit Ethernet Ports

Features :-

  • 8 Gigabit ports and 10 Gigabit SFP Slots
  • Supports cloud management, easy to maintain and manage
  • Supports IGMP Snooping, Link Aggregation, Loop Prevention
  • QoS and IGMP snooping function optimize voice, video applications
  • Supports Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities

Wi-Tek Product Link -> WI-CGS5018

Hardware Specifications
Hardware Version V1
Interface 10x1000Mbps SFP Slots

1xConsole Port

8×10/100/1000Mbps RJ45 Ports

Port Standard IEEE 802.3i:10BASE-T Ethernet;

IEEE 802.3u:100BASE-X Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber)

Power Supply 100-240 V AC~50/60 Hz
Switching Capacity 36Gbps
Packet Forwarding Rate 26.78Mpps
Jumbo Frame 10KB
MAC Address Table 8K
Dimensions ( W x D x H ) 280*180*44mm
Fan Quantity 1 Fan
Protection Level Common Mode ± 4KV, Differential Mode ± 2KV
Electrostatic Standard Contact 6KV Air 8KV
Transmission Mode Store— Forward
Installation Rack- Mounted
Software Features
Spanning Tree IEEE  802.1D – STP
IEEE  802.1w – RSTP
IEEE  802.1s – MSTP
BPDU Guard
STP Root Guard
Loop Detection
VLAN Management VLAN
Private VLAN
Voice VLAN
Monitor VLAN
Q- in-Q
Protocol- Based VLAN
MAC- Based VLAN
Port LACP
Static
EEE
Jumbo Frame
Error- Disable
Port mirroring( One-to-One Many-to-One Tx/Rx/Both)
Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group)
Security Port Isolation
IEEE802.1x AAA
ACL support L2+/L3/ L4  IPv6 ACL
Dynamic ARP Protection
Broadcast Storm
RADIUS/TACACS+
RADIUS Authentication ( RFC2138)
SSH v1.5/v2 .0
Anti- DDoS Attack
DHCP Snooping
QOS Ipv4 QoS (QCEs)
Ipv6 QoS (QCEs)
Priority Algorithm(WRR ,Absolute Priority, DSCP & CS)
Class of Service(Port- Based ,802.1p CoS  DSCP  IP Priority, TCP/ UDP IPv4/ IPv6 )
Bandwidth(Input /Output)
L2 M ulticast IGMP  Snooping v1/v2/v3
MLDS nooping v1/v2
MVR
IPV6 Ipv6/IPv4
Ipv6 Web/SSL
Ipv6 SNTP
Ipv6 Telnet/SSH
Ipv6 Ping/Traceroute
Ipv6 TFTP
Ipv6 RADIUS/TACACS+
Ipv6 SNMP
Management SNMP (v1 , v2c , v3 )
RMON ( 1 , 2 , 3 & 9 )
Firmware Upgrade
Configuration Export/import
DHCP (Option 82, Option 66, Option 67)
System Log Supports Event/Error Log
Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet)
LLDP ( IEEE802.1AB)
LLDP- MED
UDLD
DNS Client
Traceroute
Ping
DDMI
NTP/ SNTP ( RFC2030)
Advanced Features ONVIF (ONVIF Detection , ONVIF Server(NLM) )
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Automatic Device Discovery
Support Cloud Management
Support Remote Management
Support Cloud VLAN Configuration
Support Topology Display
Support Cloud Control Port Configuration
Others
Certfication CE , FCC , RoHS
Package Contents Gigabit Switch
Power Cord
Quick Installation Guide
Rubber Feet
Environment Operating Temperature: 0–40 ℃
Storage Temperature: -40– 70 ℃
Operating Humidity: 10– 90% RH non-condensing
Storage Humidity: 5– 90% RH non-condensing
