OneTop ES2012

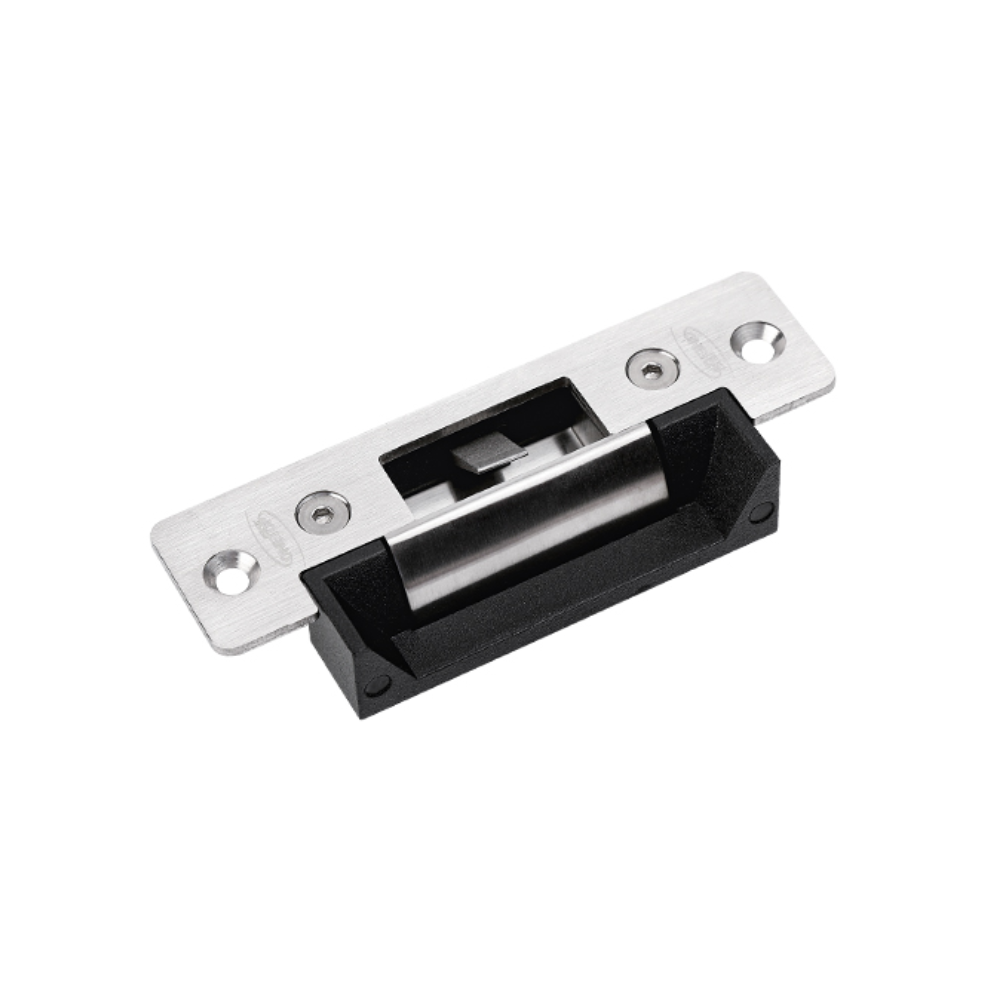

OneTop ES2012 IP56-Rated Outdoor-Rated Electric Strike Lock – Fail-Safe / Fail-Secure – No-Monitoring – 12VDC / 24VDC Powered – 750Kgs Holding Force
SKU: ES2012
Categories: Electronic Locks, Locks, Strike Locks & Accessories
Tags: Access Control, Electric Strike Lock, Fail-safe, Fail-secure, IP56 Rated, Lock, Onetop, Outdoor, Weatherproof
OneTop ES2012 IP56-Rated Outdoor-Rated Electric Strike Lock – Fail-Safe / Fail-Secure – No-Monitoring – 12VDC / 24VDC Powered – 750Kgs Holding Force
Key Features :-
- Fail Safe / Fail Secure – Interchangeable
- Lock Operating Voltage – 12VDC / 24VDC +/- 10%
- Lock Operating Current – 12VDC @ 200mA, 24VDC @ 100mA
- Static Strength – Up to 750Kg
- Impact Resistance – Up to 160J
- Life Cycle Test – 1 million operations
- Weight – 0.52Kg
- Surface Finish – Brush stainless steel faceplate. Stainless steel keeper. Powder coated black housing
- Warranty – 2 years
Specifications
- Fail Safe / Fail Secure: Interchangeable – Power To Open / Power To Lock
- Dimensions:
- Lock Body: L 84.5 x W 43.4 x D 35mm
- Face Plate: L 123.7 x W 31.7 x D 3mm(ES2012)
- Weight: 0.5Kg
- Operating Voltage: 12/24VDC ±10%
- Operating Current: 12VDC – 200mA; 24VDC – 100mA
- Holding Force: 750Kg
- Impact Energy: 200J
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Surface Finishes: High Quality Finish for Anti-corrosion; (96 Hrs Salt Spray Corrosion Tested)
