TP-Link Omada EAP650 D120-Outdoor
TP-Link Omada EAP650 D120-Outdoor Dual-Band (5GHz + 2.4GHz) AX3000 Indoor/Outdoor WiFi 6 Wireless Access Point – Up To 3Gbps – 120° Directional Antenna – Supports Omada EAP Mesh and Fast Roaming
SKU: EAP650 D120-Outdoor
Categories: Mesh WiFi, Networking Products, Outdoor WAP, Wireless Access Points
Tags: 2.4GHz Wireless, 5GHz Wireless, EAP Mesh, Fast Roaming, Gigabit, IP, Network, Omada, Omada Mesh, Omada SDN, Omada WiFi 6, Outdoor, PoE, TP-Link, Weatherproof, WiFi, WiFi 6, Wireless, Wireless Access Point
TP-Link Omada EAP650 D120-Outdoor Dual-Band (5GHz + 2.4GHz) AX3000 Indoor/Outdoor WiFi 6 Wireless Access Point – Up To 3Gbps – 120° Directional Antenna – Supports Omada EAP Mesh and Fast Roaming
Key Features :-
- Superior Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.*
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.§
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.§
- EAP650 D120-Outdoor: Features a 120∘ directional antenna, suitable for broader, sector-based coverage.
- EAP650 D120-Outdoor: Ideal for large outdoor areas, open warehouses, or campus environments needing wider signal spread.
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- Supports Fast Roaming: Enables wireless devices to switch between APs quickly and seamlessly also preventing connection drops during transitions ensuring a strong stanle signal.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE • 48V Passive PoE |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |

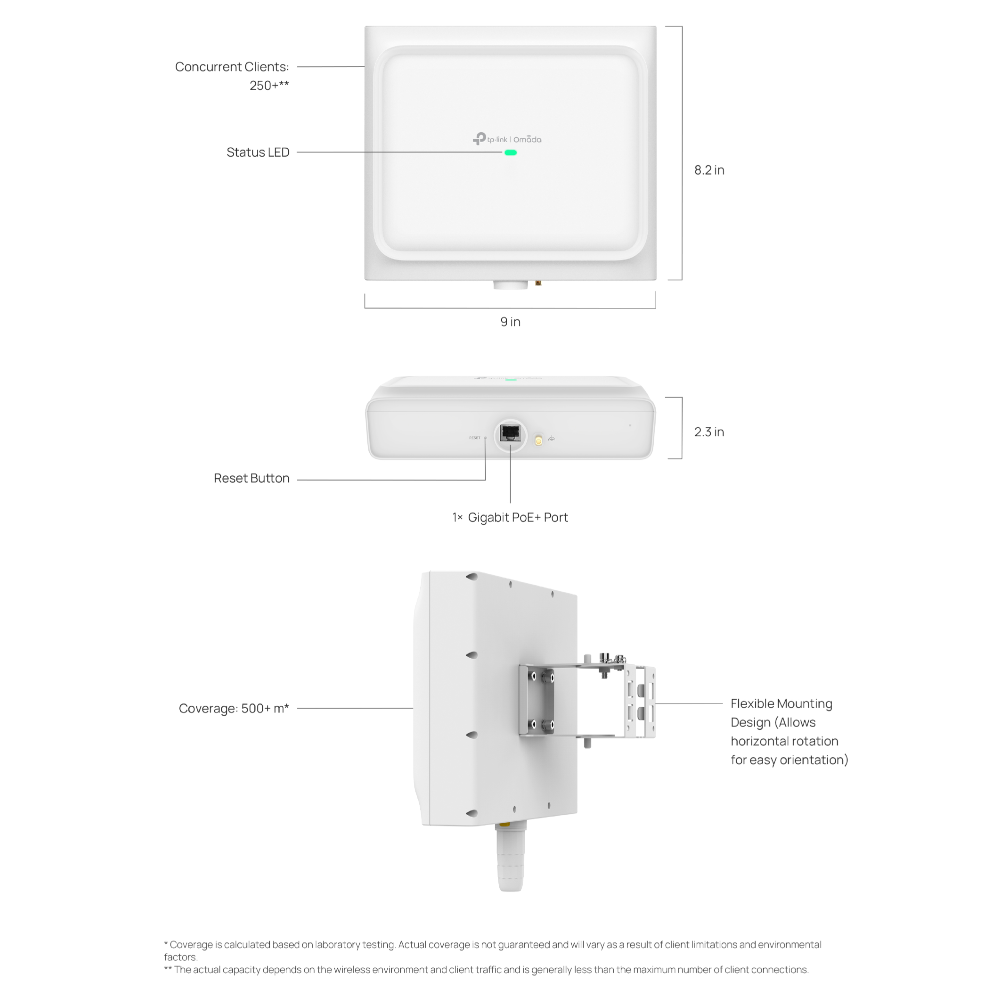

| Dimensions ( W x D x H ) | 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
| Antenna | Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-110: Supports vertical ±180°, horizontal ±45° adjustment Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately |
| WIRELESS FEATURES | |
|---|---|
| Coverage | • 2.4 GHz: 200+ m* • 5 GHz: 500+ m* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| Wireless Functions | • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP |
| Cloud Access | Yes, through • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
