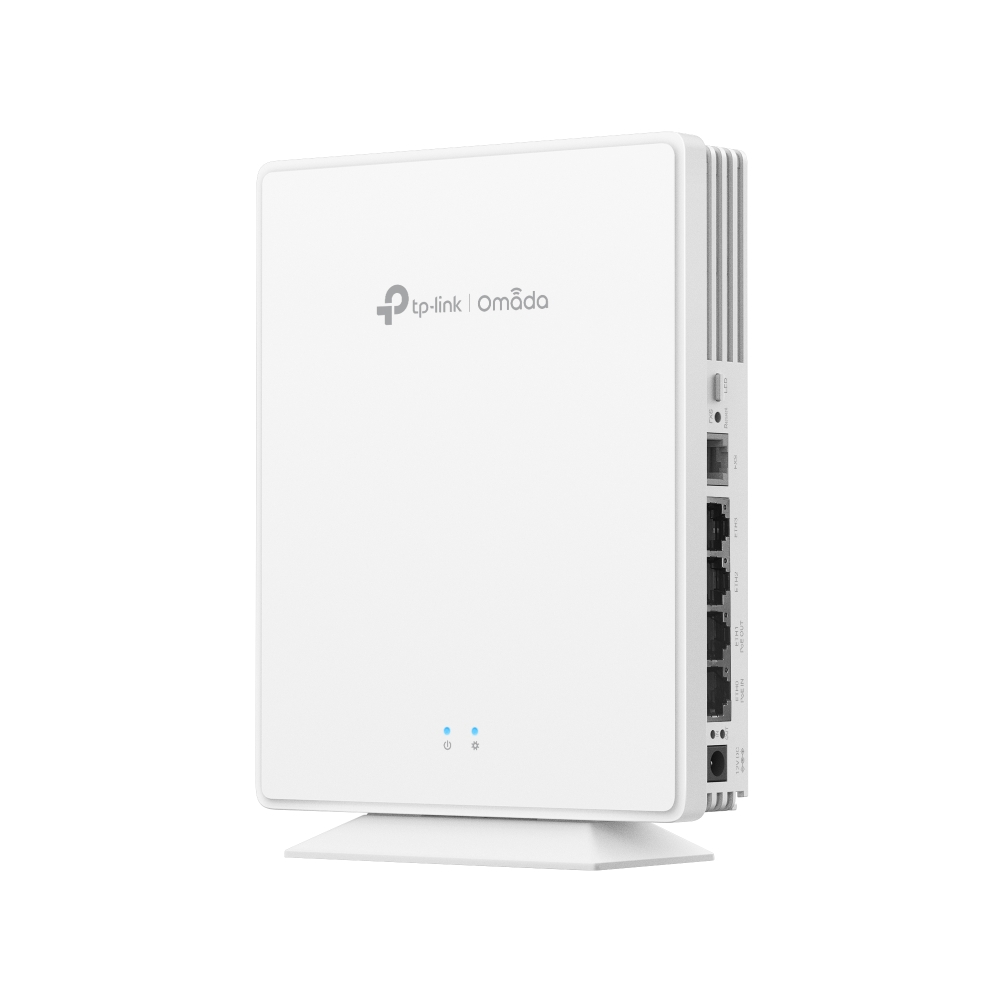

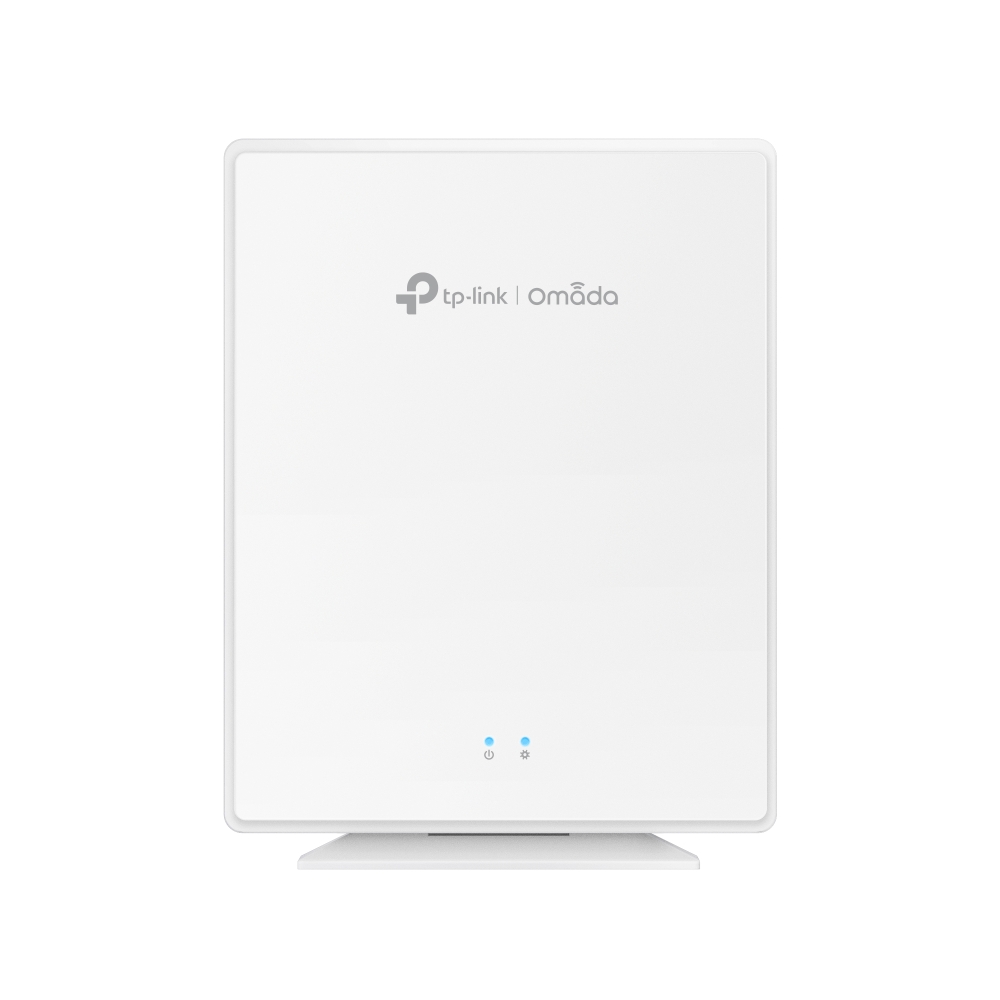

TP-Link Omada EAP650-Desktop

TP-Link Omada EAP650-Desktop AX3000 Desktop WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 3Gbps – Supports PoE Input & PoE Output

TP-Link Omada EAP650-Desktop AX3000 Desktop WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 3Gbps – Supports PoE Input & PoE Output

Blazing-Fast AX3000 Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps Wi-Fi speeds. ^†
Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
No Installation needed: Supports desktop installation without the need for additional setup.
High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.^§
Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management. ^§
5 years limited b2b warranty

HARDWARE FEATURES

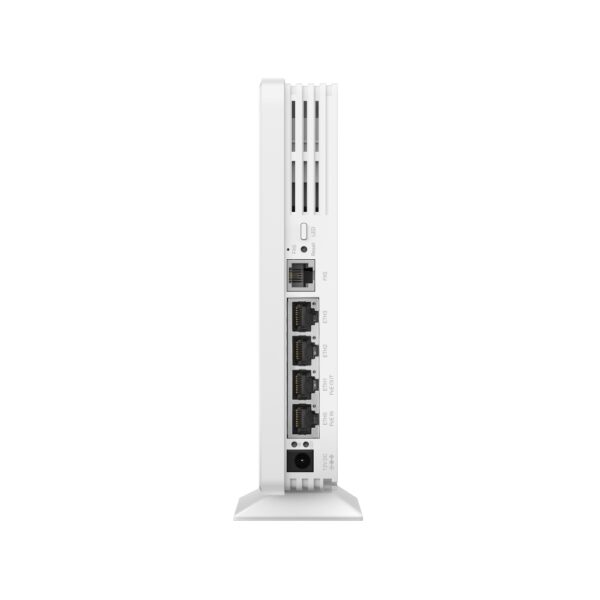

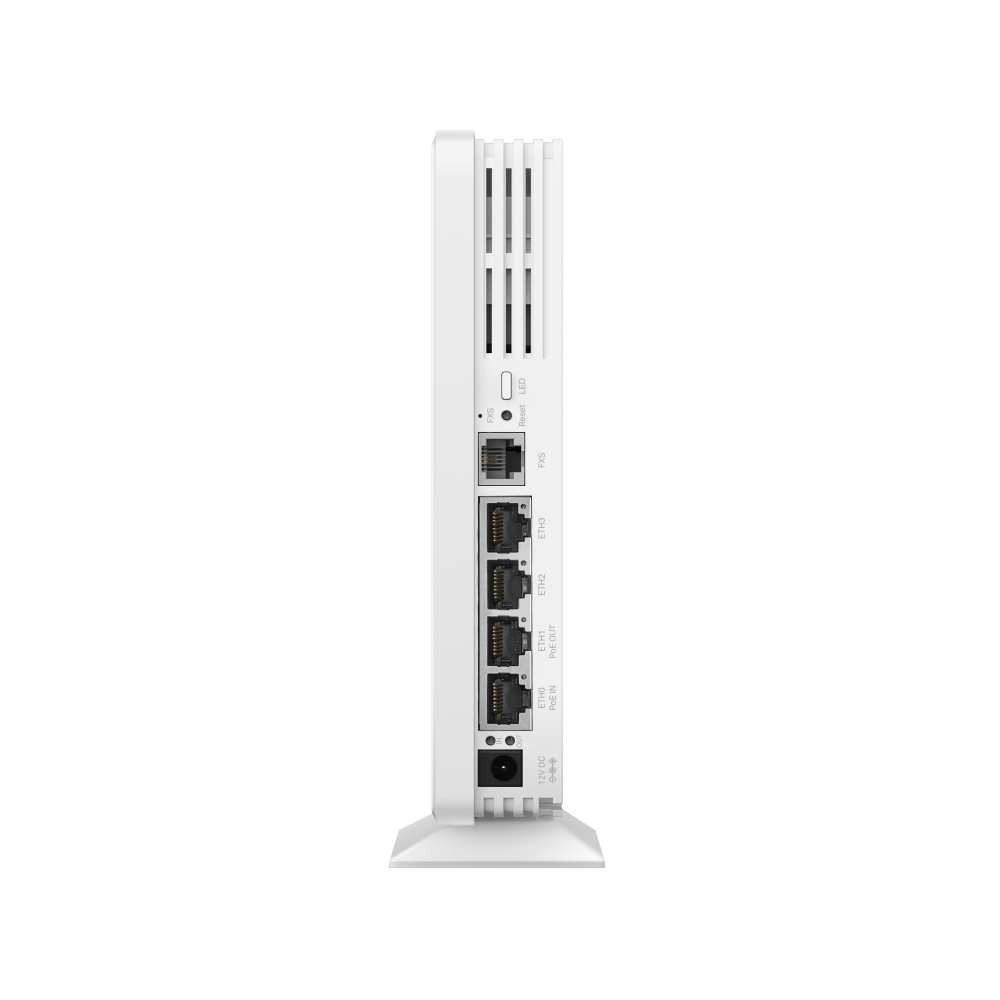

Interface	4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button	• Reset • LED
Power Supply	802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply
Max. Power Consumption	17.3W (PoE Out Off)
Weight	452g (excluding mounting base)
Dimensions ( W x D x H )	6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi
Range	140㎡(1500 ft²)*
Mounting	Desktop / Wall mouting (Kits included)

WIRELESS FEATURES
Concurrent Clients	250+^*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: 2402 Mbps^† • 2.4 GHz: 574 Mbps
Wireless Functions	• 2×2 (2.4G & 5G) MU-MIMO^‡ • HE160 (160 MHz Bandwidth)^‡ • OFDMA^‡ • Seamless Roaming ^§ • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP)• FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes.Reauire the use of Omada Cloud-Based controller

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide • Power Adapter
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
