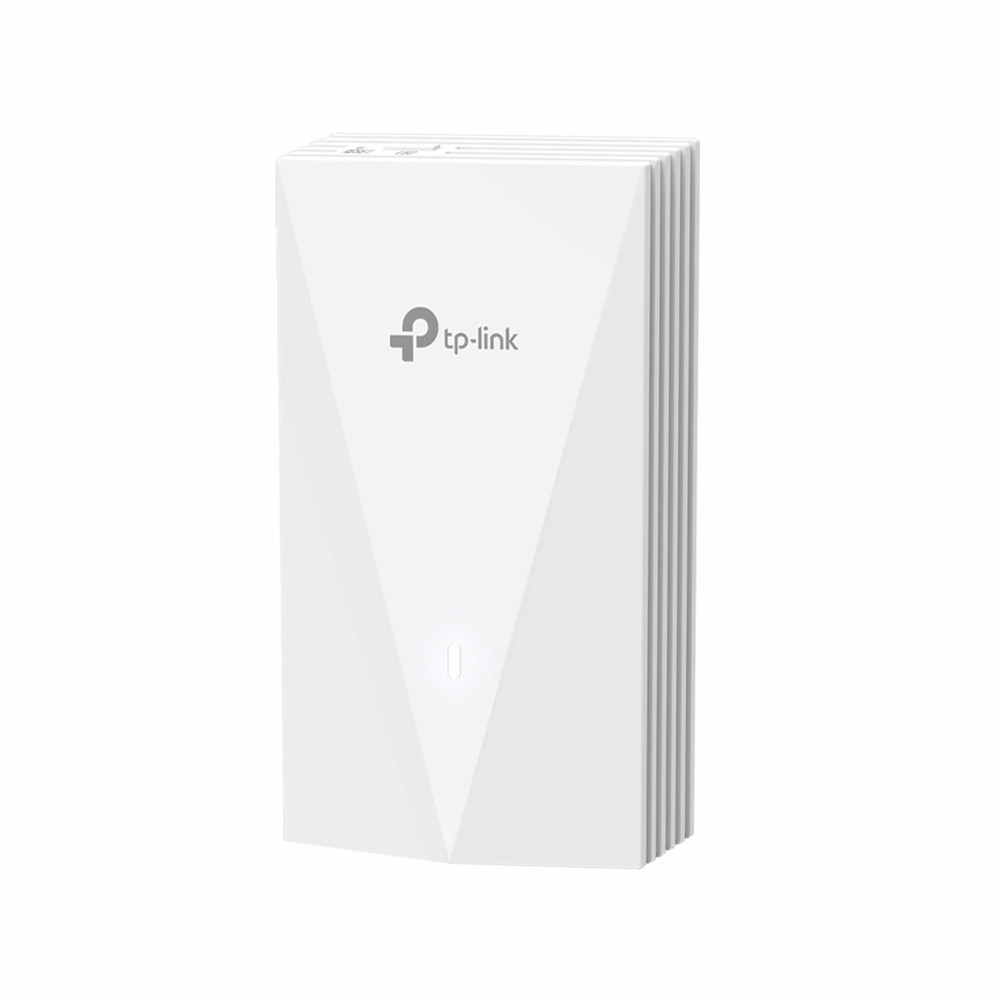

TP-Link Omada EAP655-Wall

TP-Link Omada EAP655-Wall AX3000 Wall-Plate WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 3Gbps – PoE Input & PoE Output

TP-Link Omada EAP655-Wall AX3000 Wall-Plate WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 3Gbps – PoE Input & PoE Output

Superior Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps Wi-Fi speeds.^†
High-Performance Connectivity: Deliver data to more devices at the same time with less lag through OFDMA and MU-MIMO.^‡
Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage in each room.

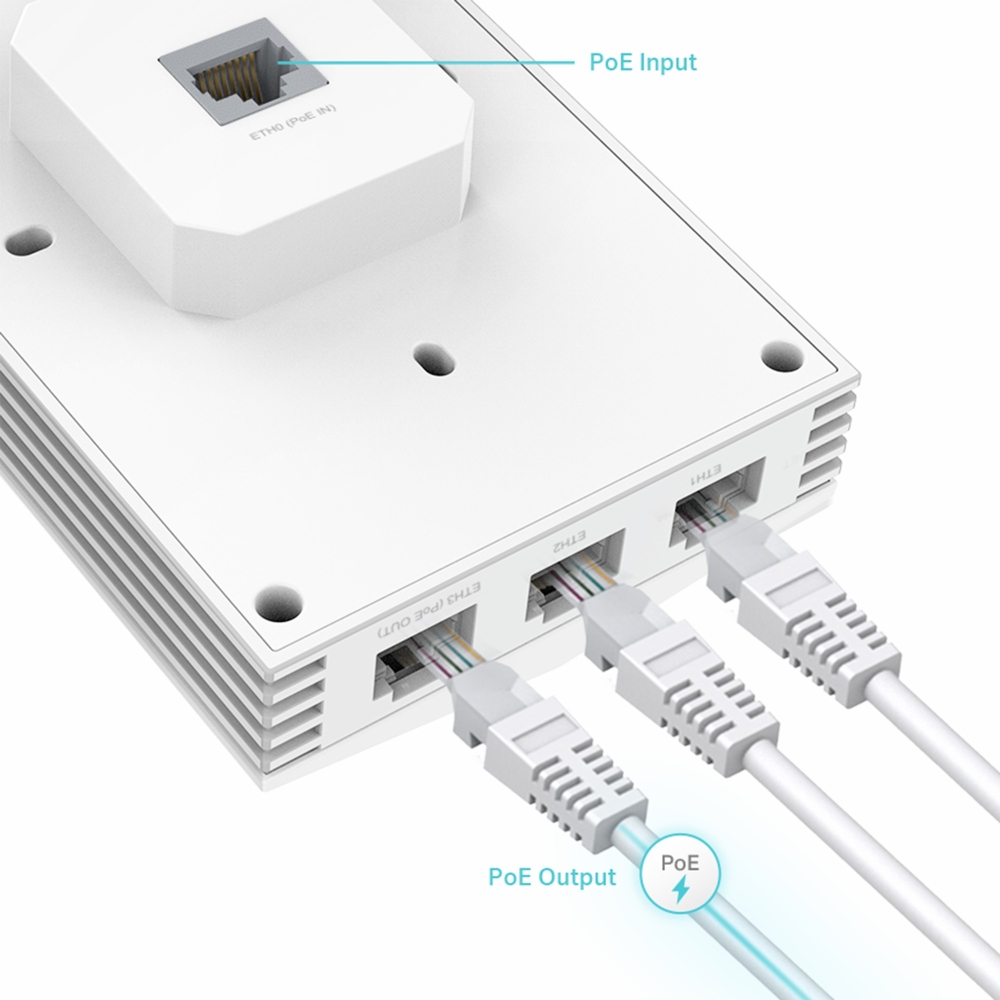

Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Implement multiple authentication options (SMS/ Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.^§

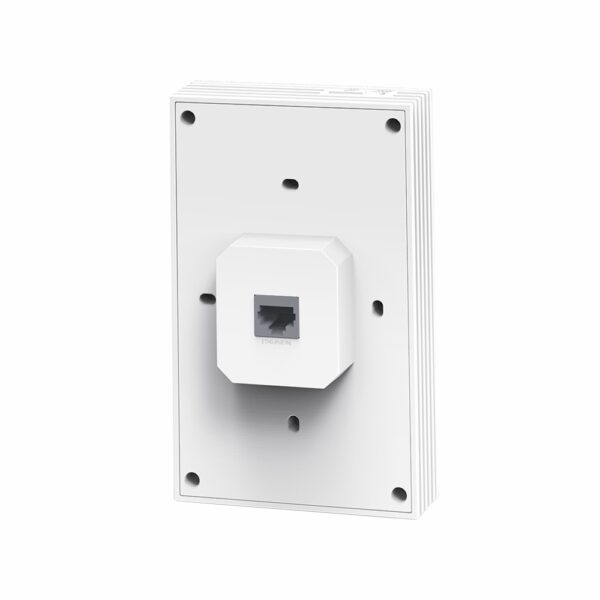

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3at PoE support.
5 years limited b2b warranty

HARDWARE FEATURES
Interface	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock	No
Button	Reset, LED
Power Supply	802.3af/at PoE
Max. Power Consumption	• EU: 12W (802.3at PoE, PoE Out off) • US: 12.6W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H )	143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna	2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi
Mounting	Wall Plate Mounting (Kits included)

WIRELESS FEATURES
Coverage	50㎡(600 ft²)^***
Concurrent Clients	100+ △
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP)• FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	FCC, RoHS
Package Content	• AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall • Installation Guide • Mounting Kits
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
