TP-Link Omada EAP683 UR

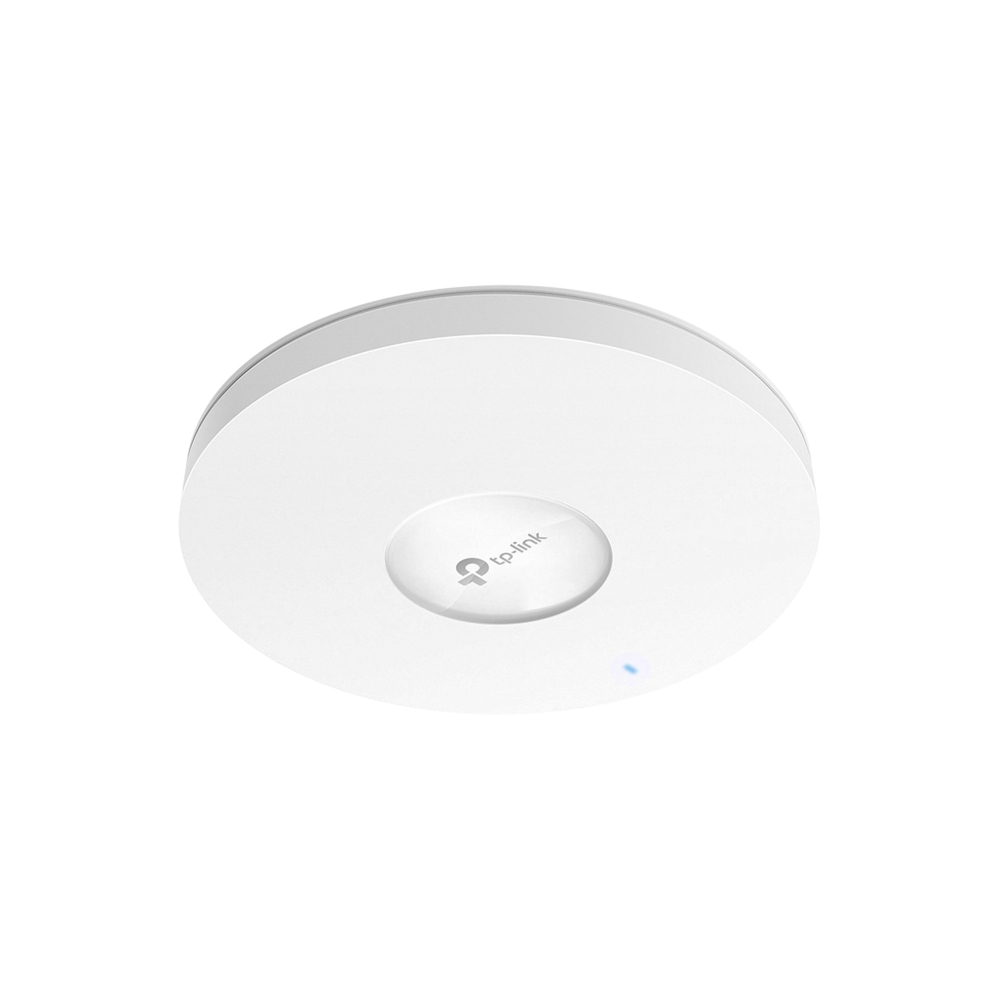

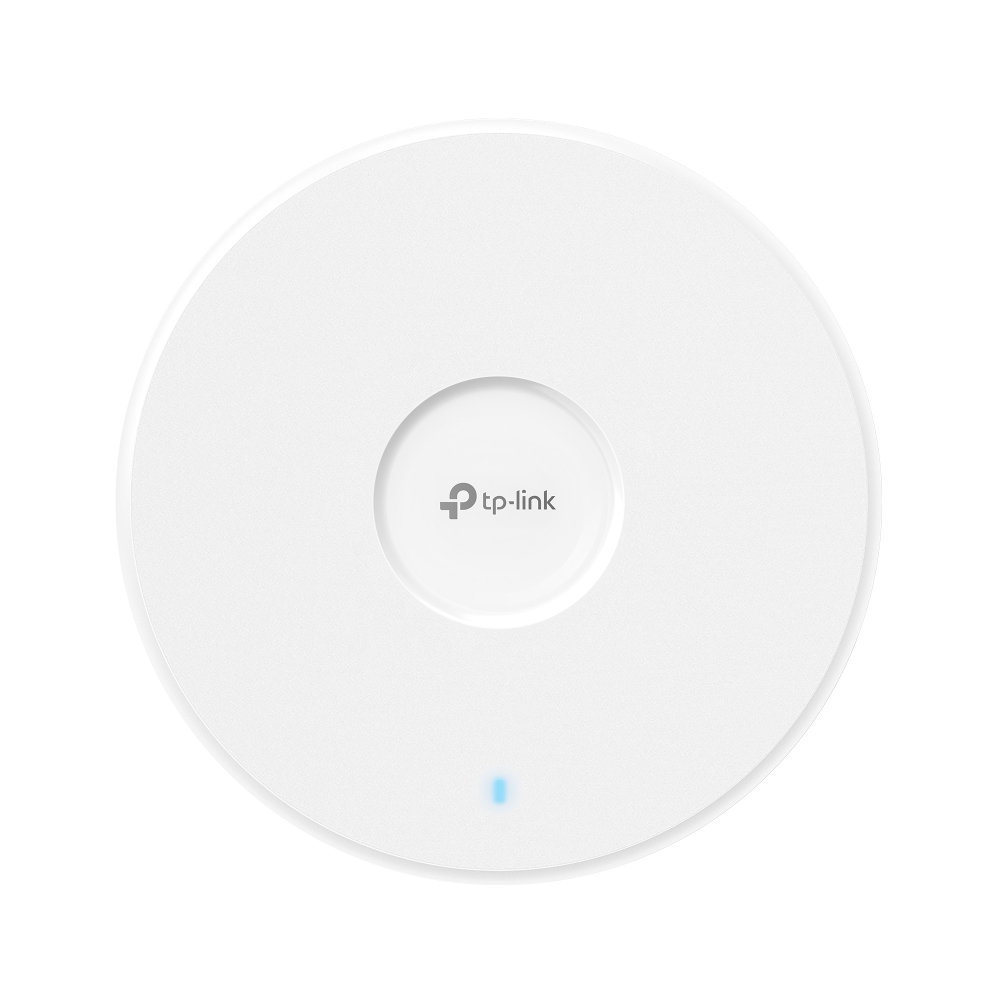

TP-Link Omada EAP683 UR AX6000 Ultra-Range WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 6Gbps – Ceiling-Mount – Supports 12VDC & 48VDC PoE Input
SKU: EAP683 UR
Categories: Indoor WAP, Mesh WiFi, Networking Products, Wireless Access Points
Tags: 2.4GHz Wireless, 5GHz Wireless, 6Gbps, Dual-Band Wi-Fi, Gigabit, IP, Multi-Gigabit, Network, Omada, Omada SDN, Omada WiFi 6, PoE, TP-Link, WiFi, WiFi 6, Wireless, Wireless Access Point
TP-Link Omada EAP683 UR AX6000 Ultra-Range WiFi 6 Access Point – Dual-Band (5GHz + 2.4GHz) – Up To 6Gbps – Ceiling-Mount – Supports 12VDC & 48VDC PoE Input
Key Features :-
- Up to 5952 Mbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc.‡
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 2 A DCNote：Power adapter is not included. |
| Max. Power Consumption | • EU: 20.43W • US: 23.69W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Bluetooth | Yes |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 185㎡(2000ft²)*** |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP)• FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE,FCC,RoHS |
| Package Content | • EAP683 UR • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
