TP-Link Omada ES206XPP-M2

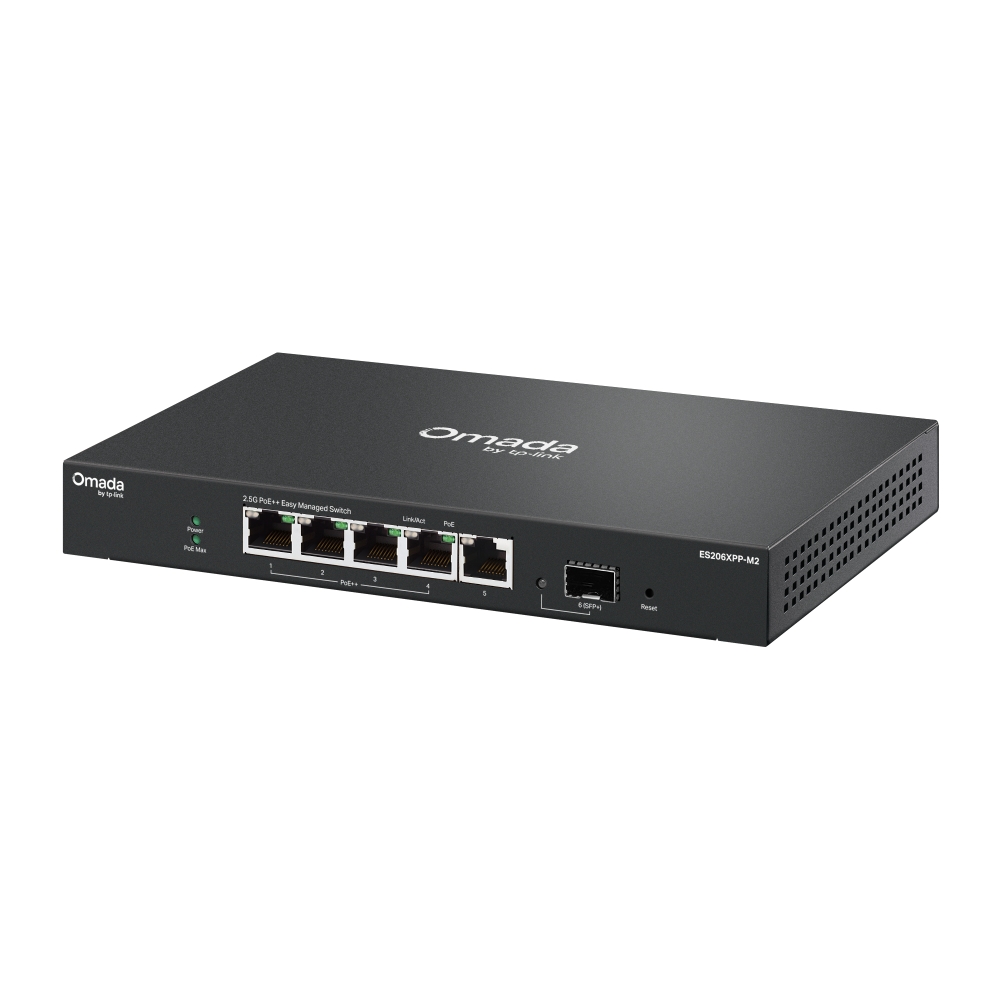

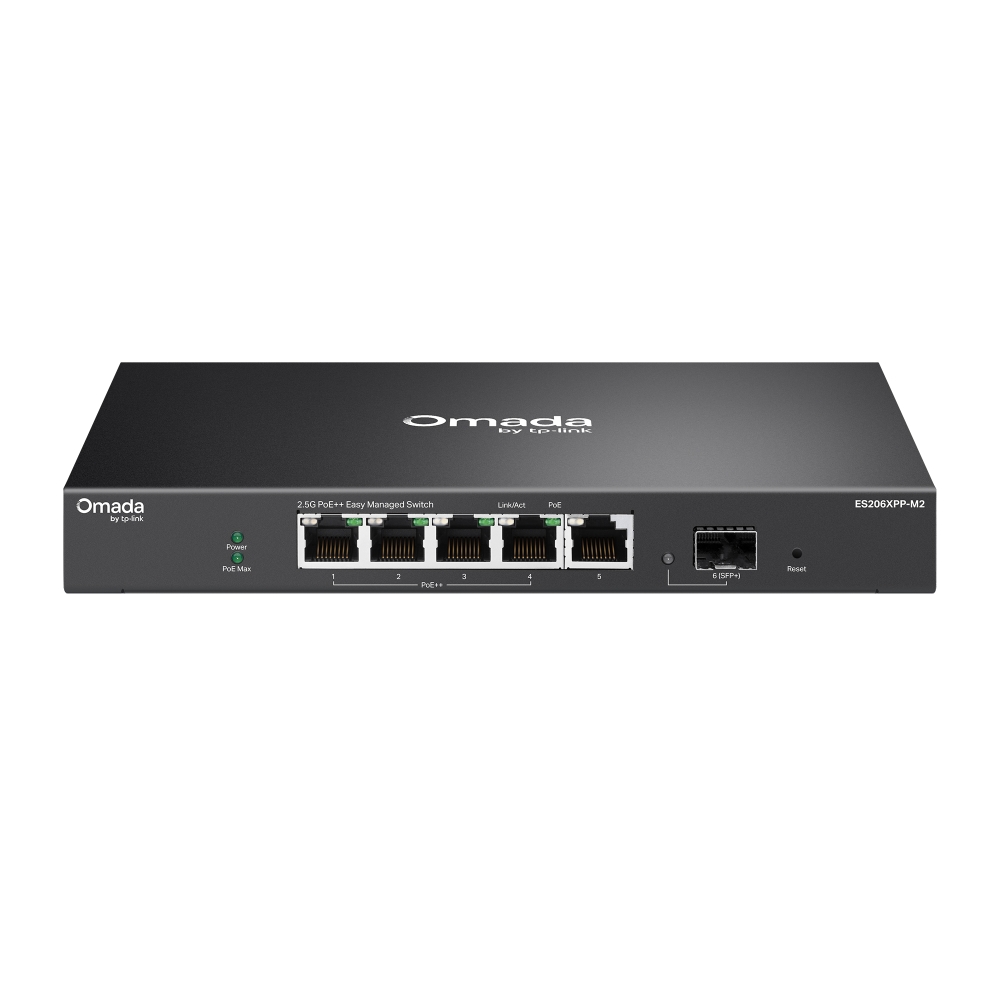

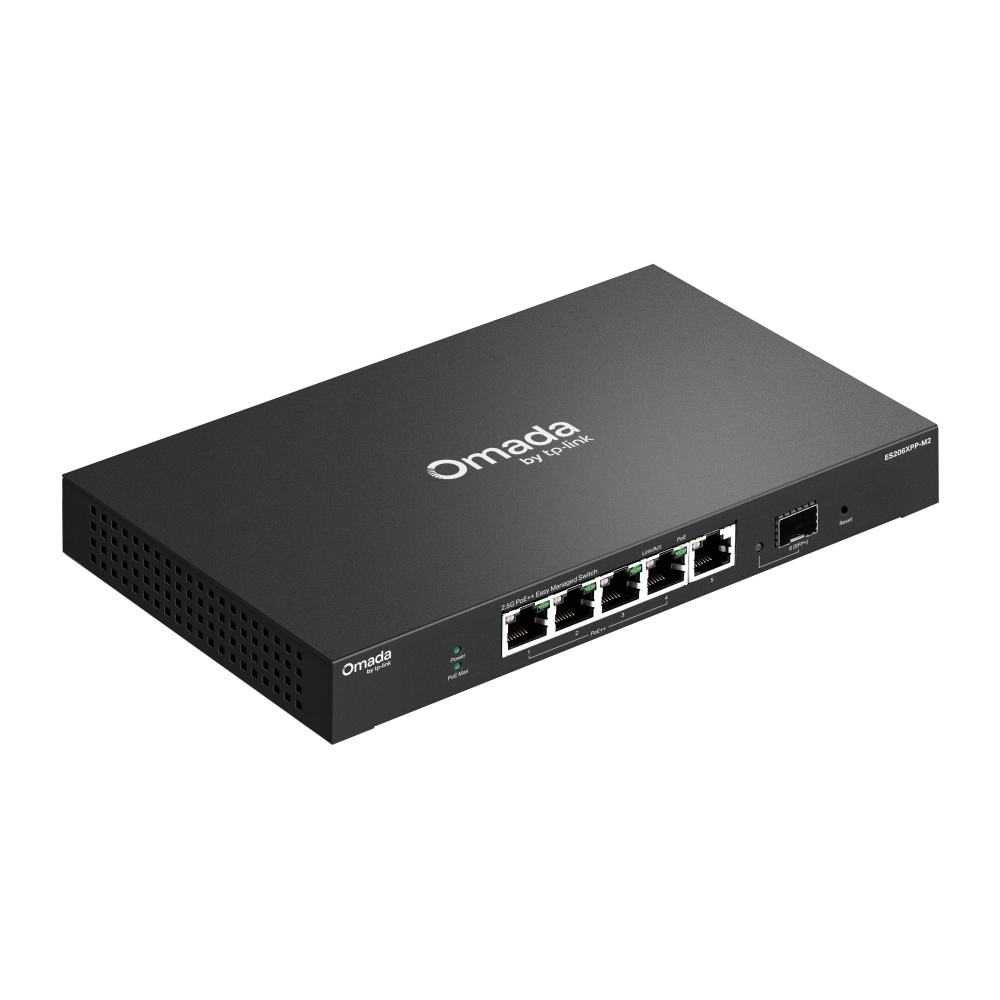

TP-Link Omada ES206XPP-M2 5-Port 2.5GBase-T Easy Managed PoE Switch with 4 * 2.5Gbps PoE++ Ports + 1 * 2.5Gbps Uplink Port + 1 * 10Gbps SFP Slot – 120w PoE Budget – Centralized Cloud Management Via Web OR Omada App
SKU: ES206XPP-M2
Categories: Cloud Managed PoE Switches, Networking Products, PoE Switches
Tags: 2.5Gbps, 802.3at, 802.3bt, Easy Managed, Gigabit, IP, Multi-Gigabit, Network, Omada, PoE Switch, SFP Port, TP-Link
TP-Link Omada ES206XPP-M2 5-Port 2.5GBase-T Easy Managed PoE Switch with 4 * 2.5Gbps PoE++ Ports + 1 * 2.5Gbps Uplink Port + 1 * 10Gbps SFP Slot – 120w PoE Budget – Centralized Cloud Management Via Web OR Omada App
Key Features :-
- 5 * 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
- 1 * 10 Gbps SFP+ Slot
- 120W PoE Budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

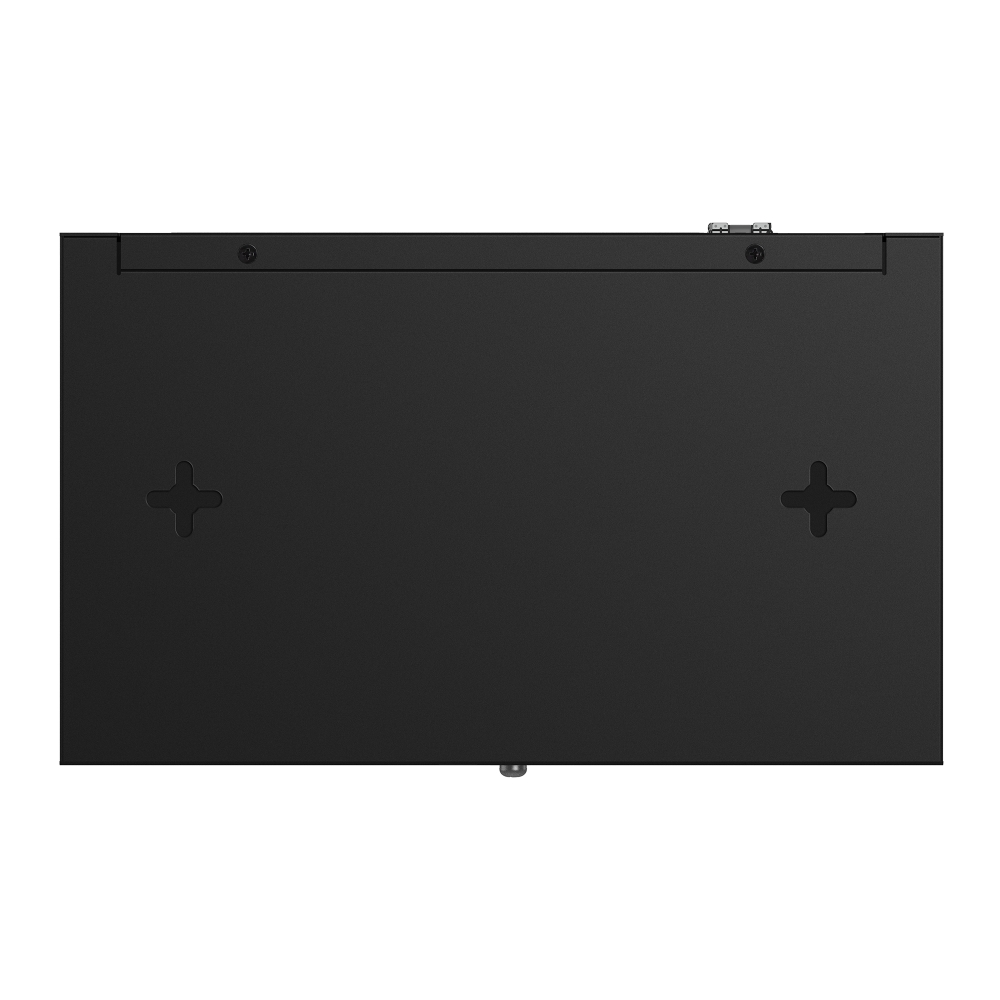

| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5 VDC / 2.43 A) |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt PoE++ compliant • PoE Ports: 4 Ports • PoE Budget: 120W available for all PoE++ ports, 90W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ |
| Dimensions ( W x D x H ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6 kV |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES206XPP-M2 • Power Adapter • Power Cord • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
