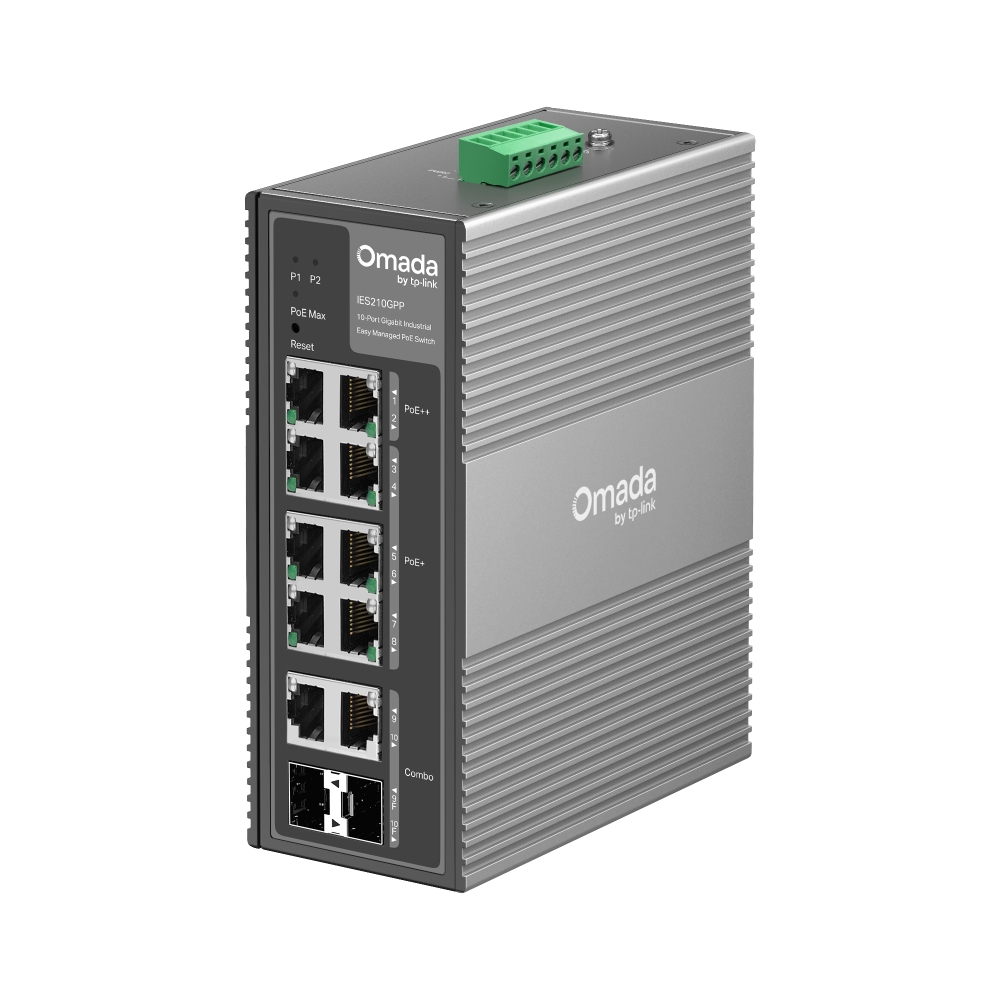

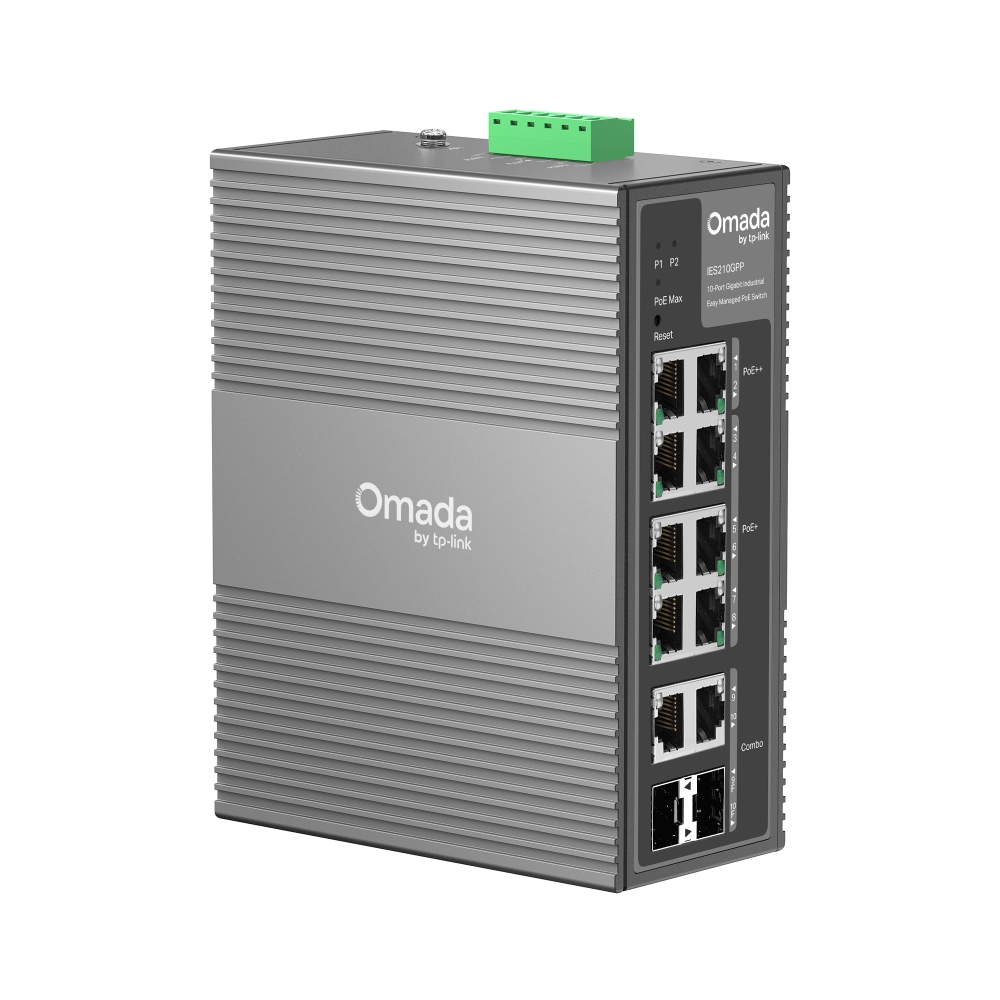

TP-Link Omada IES210GPP

Name: TP-Link Omada IES210GPP
SKU: IES210GPP

TP-Link Omada IES210GPP 10-Port Gigabit Ethernet Industrial Easy Managed Network Switch with 6 * GbE PoE+ Ports + 2 * GbE PoE++ Ports + 2 * Gb Combo RJ45/SFP Slots – 240w PoE Power Budget – 12V~57V DC Input – Solar Compatible – Fanless – Centralized Cloud Management Via Web OR Omada App

SKU: IES210GPP Categories: Cloud Managed PoE Switches, Networking Products, PoE Switches, Special Offers, Unmanaged PoE Switches, Weekly Specials Tags: 10-Port, 8-port, 8x PoE, DIN-RAIL, Easy Managed, Fanless, Gigabit, Industrial, IP, Network, Omada, PoE Switch, SFP Port, Solar, TP-Link, Wall-Mount

Key Features :-

8 * Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
2 * Gigabit Combo RJ45/SFP Slots
240W Power Budget* with up to 60W for Each PoE++ Port
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App^†
Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
5 years limited b2b warranty

TP-Link Product-Link

HARDWARE FEATURES

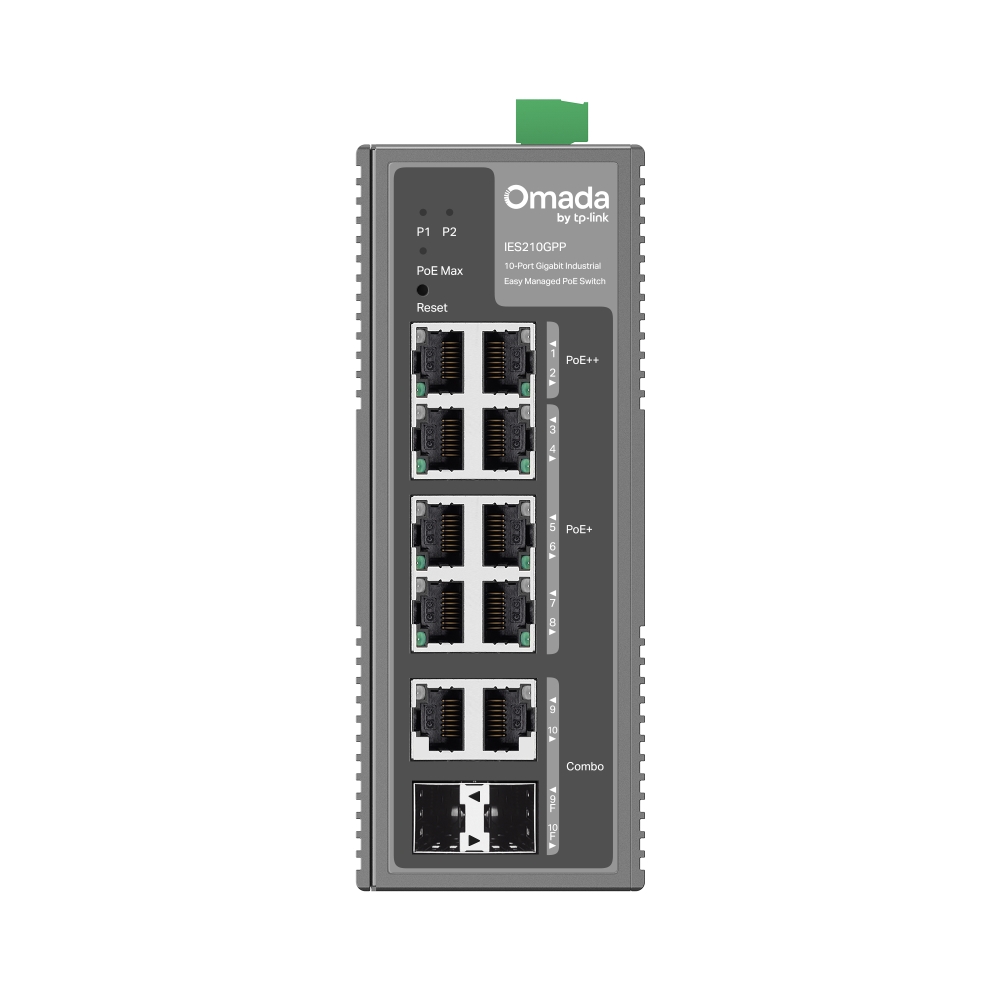

Interface	• 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

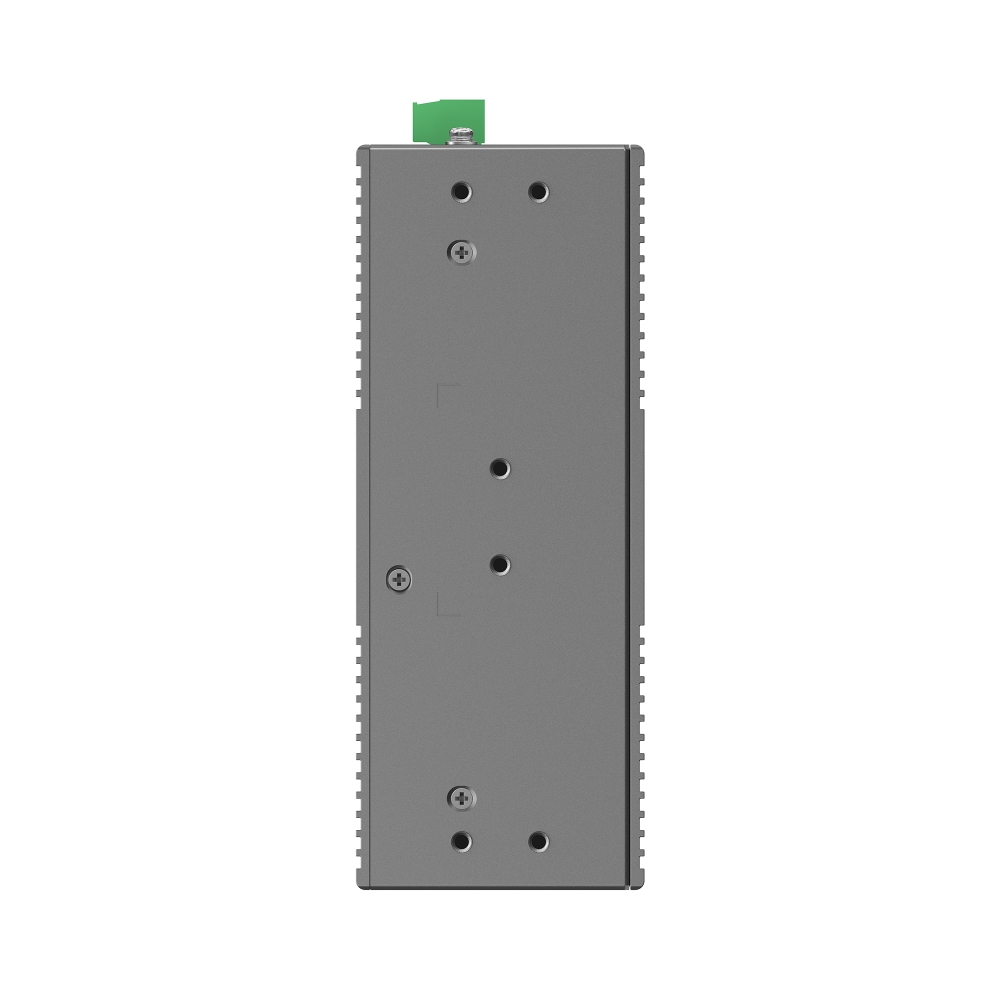

Installation	• DIN-rail mounting • Wall mounting
Physical Security Lock	√

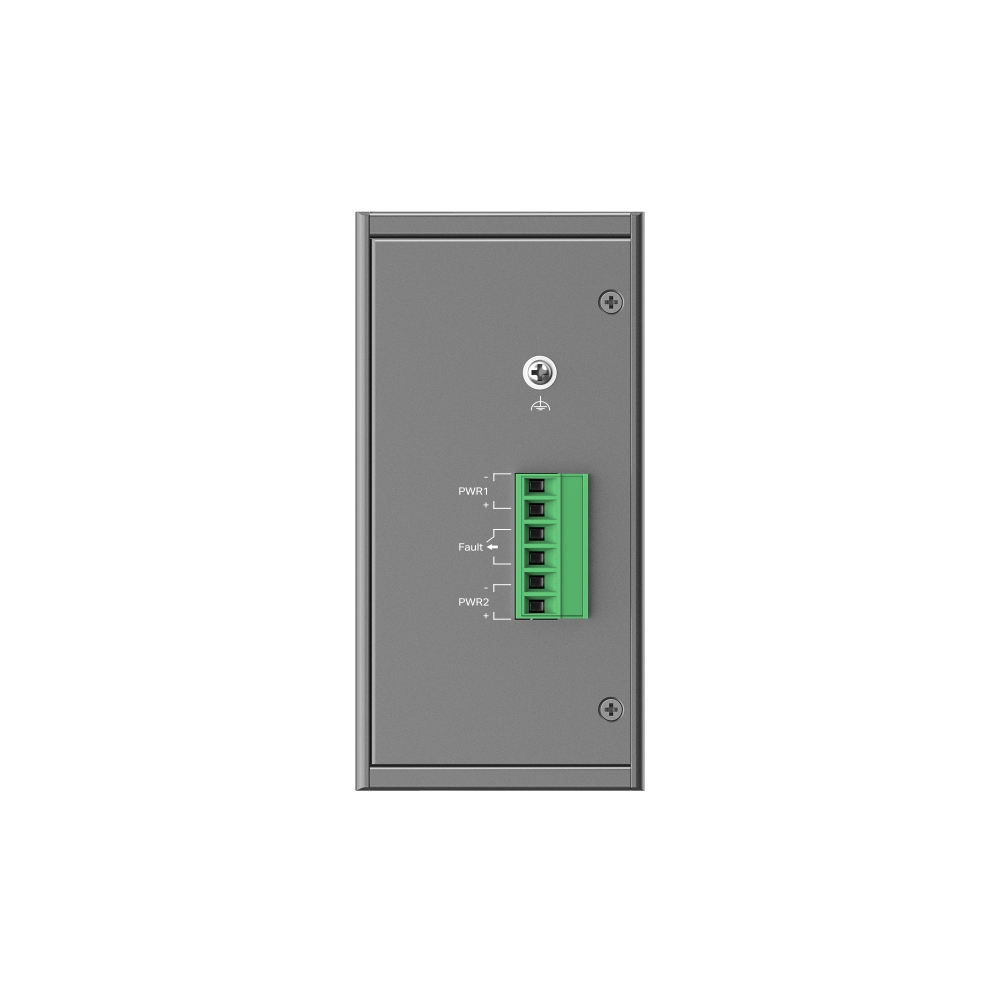

Power Supply	12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45)	• Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: – 60W (Input: 12V / 7.2A – 21V / 3.7A)) – 120W (Input: 21V / 6.7A – 46V / 3.1A) – 240W (Input: 46V / 5.7A – 57V / 4.4A)
Dimensions ( W x D x H )	6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rate Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation – Static Link Aggregation – Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP • Spanning Tree – STP (802.1d) – RSTP (802.1w)
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
