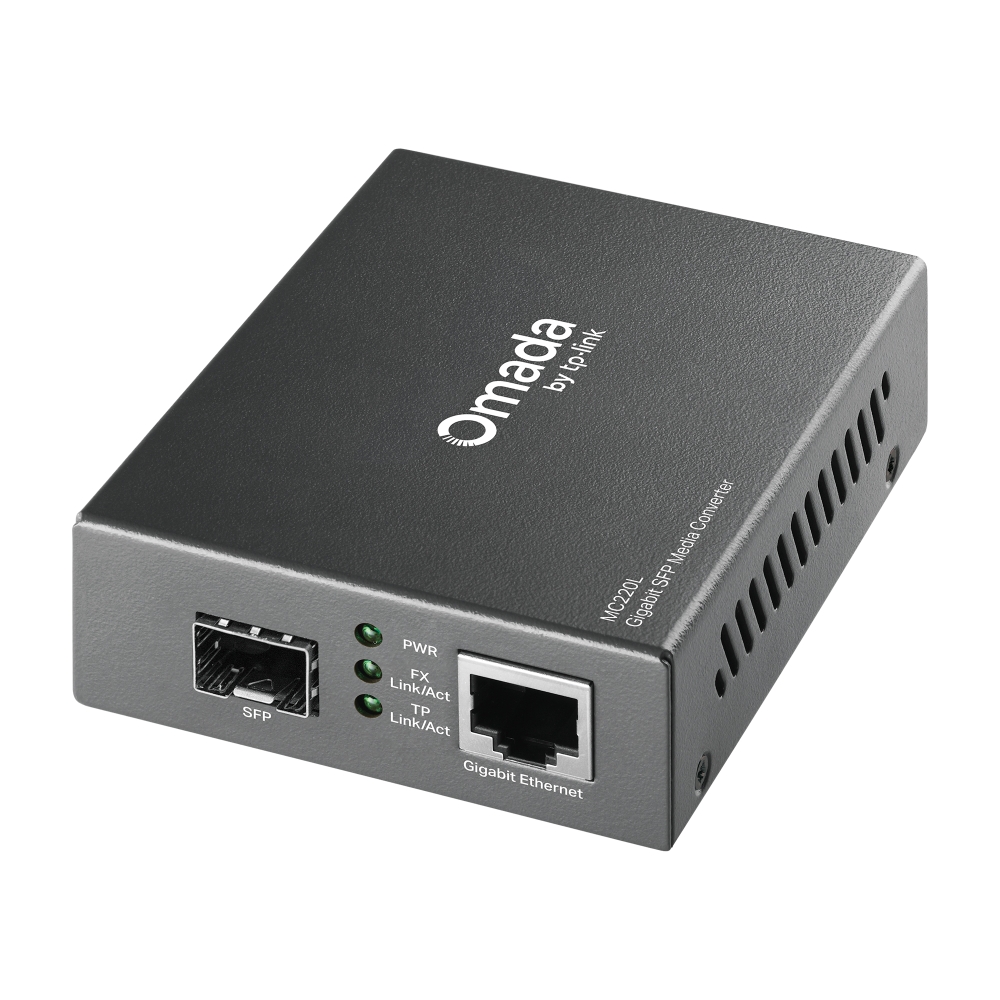

TP-Link Omada MC220L
TP-Link Omada MC220L Gigabit SFP Ethernet Media Converter – 1* GbE Auto-Negotiation RJ45 Port – Hot-Swappable SFP Port – Supports Half-Duplex / Full-Duplex
SKU: MC220L
Categories: Fibre Ethernet Media Converters, Networking Products
Tags: Ethernet, Fibre, Gigabit, Media Converter, Omada, SFP, TP-Link
TP-Link Omada MC220L Gigabit SFP Ethernet Media Converter – 1* GbE Auto-Negotiation RJ45 Port – Hot-Swappable SFP Port – Supports Half-Duplex / Full-Duplex
Key Features :-
- 1 * 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Maximum transmission distance depends on the inserting SFP module |
| Interface | • 1× 1000M SFP port • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.7W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • MC220L • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
