TP-Link Omada MC420L

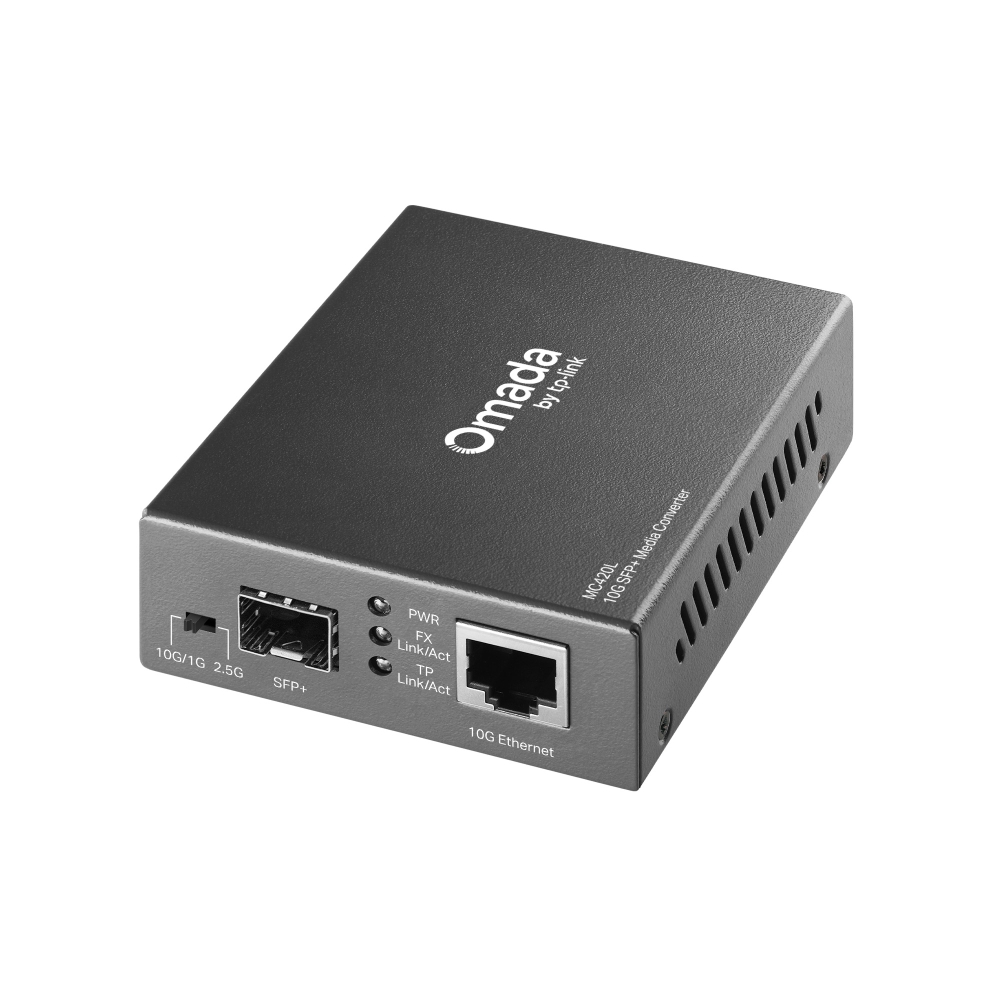

TP-Link Omada MC420L 10Gbps Multi-Gigabit SFP Ethernet Media Converter – 1* 10GbE Auto-Negotiation RJ45 Port – Hot-Swappable SFP Port – Supports Half-Duplex / Full-Duplex
SKU: MC220L-1
Categories: Fibre Ethernet Media Converters, Networking Products
Tags: 10Gbps, Ethernet, Fibre, Gigabit, Media Converter, Multi-Gigabit, Omada, SFP, TP-Link
TP-Link Omada MC420L 10Gbps Multi-Gigabit SFP Ethernet Media Converter – 1* 10GbE Auto-Negotiation RJ45 Port – Hot-Swappable SFP Port – Supports Half-Duplex / Full-Duplex
Key Features :-
- 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
- Easy switching between 1G/10G and 2.5G optical port modes
- Optical port supports hot-swappable
- Maximum transmission distance depends on the inserted SFP+/SFP Module
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE 802.3aq ，IEEE 802.3cb |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Maximum transmission distance depends on the inserting SFP module |
| Interface | • 1× SFP+ port • 1× 1G/2.5G/5G/10Gbps RJ45 port |
| Wave Length | Depends on the used SFP/SFP+ module |
| Network Media 10GBASE-R | Multi-mode/Single-mode SFP+ module |
| Network Media 10GBASE-T | •1000BASE-T/2.5GBASE-T/5GBASE-T: 4-pair UTP/STP of Cat. 5e or above (max. 100 m) •10GBase-T: 4-pair UTP of Cat. 6 (max. 55m), 4-pair UTP of Cat. 6a (max. 100m), or 4-pair STP of Cat. 6 or above (max. 100m) |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter: 9V/0.6A |
| Max. Power Consumption | 5.26 W |
| LED | PWR, FX Link/Act, TP Link/Act |
| Safety & Emission | CE, FCC |
| Package Content | • MC420L • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%RH~90%RH Non-condensing • Storage Humidity: 5%RH~90%RH Non-condensing |
