TP-Link VIGI 4G Solar Master Kit

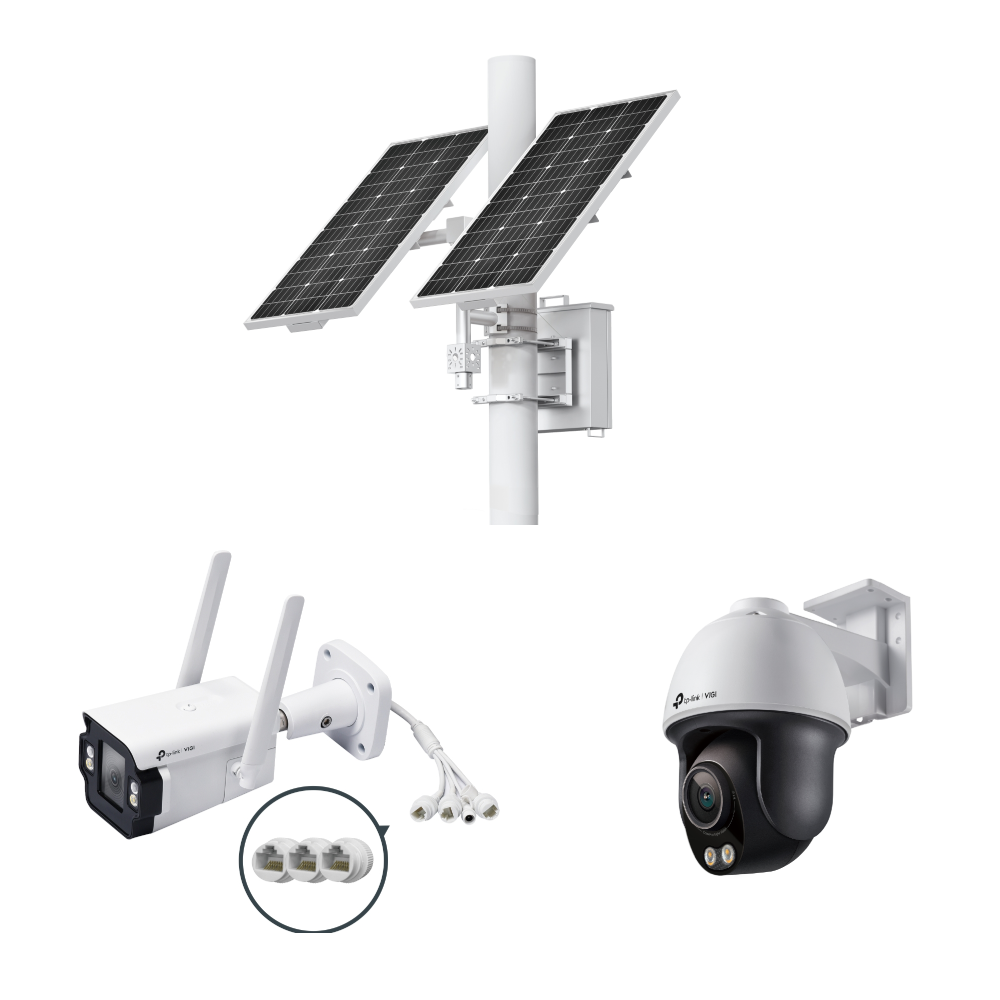

TP-Link VIGI 4G Solar Master Kit – Includes 1 * SP18090 Solar Set + 1 * S345-4G 4MP LTE All-In-One Bullet Camera + 1 * C540S Ultra-Low-Light Full-Colour 4MP Auto-Tracking PT Camera – Smart IOT MPPT Controller Included – Weatherproof – Remote Management*
TP-Link VIGI 4G Solar Master Kit – Includes 1 * SP18090 Solar Set + 1 * S345-4G 4MP LTE All-In-One Bullet Camera + 1 * C540S Ultra-Low-Light Full-Colour 4MP Auto-Tracking PT Camera – Smart IOT MPPT Controller Included – Weatherproof – Remote Management*
Key Features :-
SP18090
- 2× 90W Photovoltaic Panels and 93.6Ah/10.95V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Independent Protection Circuit
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
S345-4G
- 4MP Super-High Definition and 24h Full-Colour
- 4G Mobile Networking*1
- 3 LAN Ports for Downstream Devices
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
C540S
- Ultra-Low Light Colour Night Vision
- 360° Monitoring and Auto Tracking
- People & Vehicle Analytics*
- Human & Vehicle Classification
- Smart Detection
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Waterproof and Onboard Storage§
VIGI Solar Power System Solution Page
VIGI Solar Solutions Brochure 1
VIGI Solar Solutions Brochure 2
TP-Link Press Article for Solar Solutions
| Solar Panel (Photovoltaic Panel) | |
|---|---|
| Power | 180 W (90 W per panel) |
| Voltage | 18 V |
| Dimensions (L x W x H) | 39.3×20.3×1.2 in (998×516×30 mm) |
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah (Max),31.2Ah (Per Lithium Battery) |
| Voltage | 10.95 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles* |
| Dimension | • 9.4×2.9×2.8 in (240×74×72 mm) (Per Lithium Battery) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× Three-pin Female Connector For Connecting The Controller • 1× Three-pin Male Connector For Connecting The Modular Battery • 2× Four-pin Female Connectors For Connecting The Solar Panel • 1× 10/100 Mbps RJ45 • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator) • Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Three-way Load |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Intelligent Auxiliary Heating Control | -30°C~5°C |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CE, FCC, RoHS, IP66 Weatherproof • IP67 Weatherproof (Solar Panel) |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
*A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan.
You may also like…
-

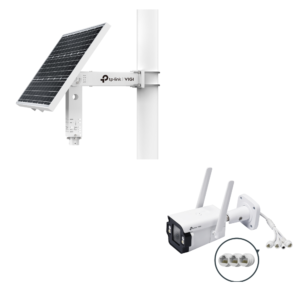

VIGI 4G Solar Starter Kit
-
