VIGI 4G Solar Starter Kit
CCTV / Surveillance, Solar Security, Solar Surveillance, TP-Link VIGI Solar

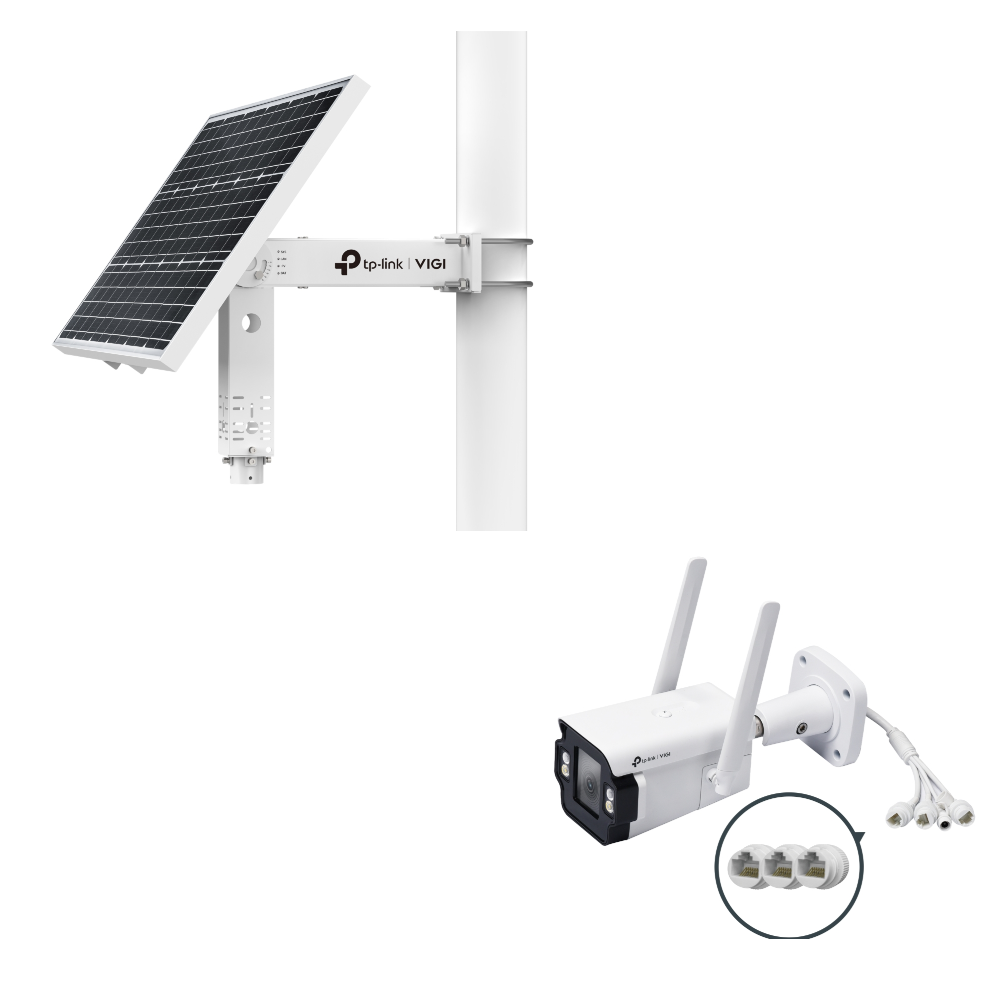

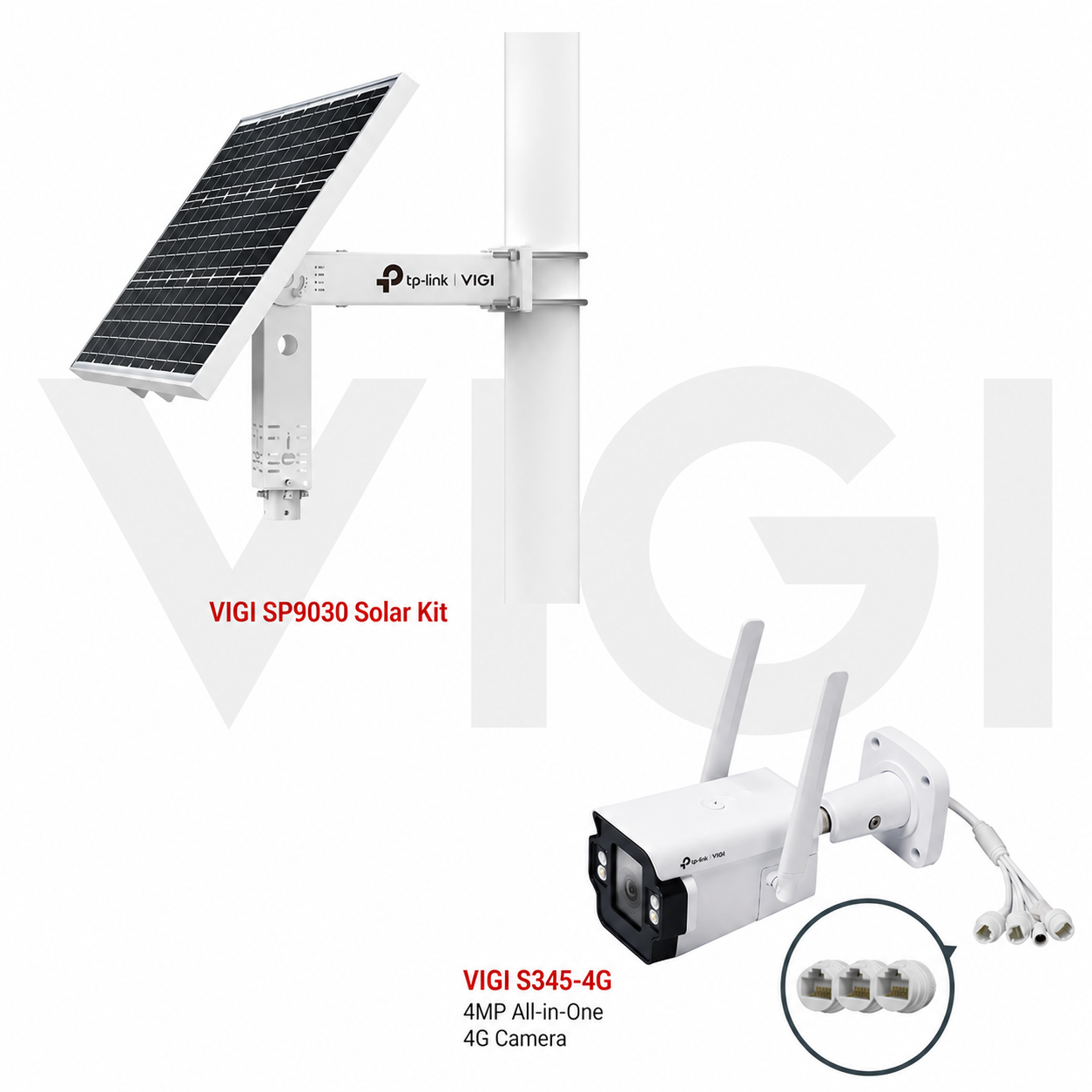

TP-Link VIGI 4G Solar Starter Kit
TP-Link VIGI 4G Solar Starter Kit – Includes 1 * SP9030 Solar Set + 1 * S345-4G 4MP LTE All-In-One Bullet Camera – Smart IOT MPPT Controller Included – Weatherproof – Remote Management*
SKU: VIGI 4G Solar Starter Kit
Categories: CCTV / Surveillance, Solar Security, Solar Surveillance, TP-Link VIGI Solar
Tags: 4G Camera, Battery, IP66 Rated, MPPT Controller, NDAA, Solar, Solar Panel, Solar Starter Kit, TP-Link, VIGI, Weatherproof
TP-Link VIGI 4G Solar Starter Kit – Includes 1 * SP9030 Solar Set + 1 * S345-4G 4MP LTE All-In-One Bullet Camera – Smart IOT MPPT Controller Included – Weatherproof – Remote Management*
Key Features :-
SP9030
- 90W Photovoltaic Panel and 31.2Ah/10.8V Lithium Battery
- 3 * DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management* and Simple Installation
S345-4G
- 4MP Super-High Definition and 24h Full-Colour
- 4G Mobile Networking*1
- 3 LAN Ports for Downstream Devices
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
VIGI Solar Power System Solution Page
VIGI Solar Solutions Brochure 1
VIGI Solar Solutions Brochure 2
TP-Link Press Article for Solar Solutions
| Solar Panel (Photovoltaic Panel) | |
|---|---|
| Power | 90 W |
| Voltage | 18 V |
| Dimensions (L x W x H) | 998×516×30 mm (39.3×20.3×1.2 in) |
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 31.2 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 250×74×74 mm (9.8×2.9×2.9 in) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Web Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
| Package Content | • VIGI SP9030 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Box Dimensions (W X D X H) | 1110×615×225 mm (43.7×24.2×8.9 in) |
| Weight | • Product weight: 15 kg • Package weight: 17.5 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
*A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan.
**The actual shipped product doesn’t include camera and EAP equipment.
