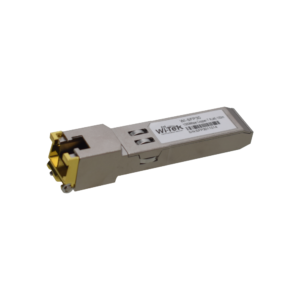

  • Wi-Tek WI-SFP30 1000BASE-T Copper SFP Transceiver - 10/100/1000Mbps - RJ45 Port Input for a SFP Port on a Network Switch

    Wi-Tek WI-SFP30

    Wi-Tek WI-SFP30 1000BASE-T Copper SFP Transceiver - 10/100/1000Mbps - Ethernet RJ45 Port Input for a SFP Port on a Network Switch

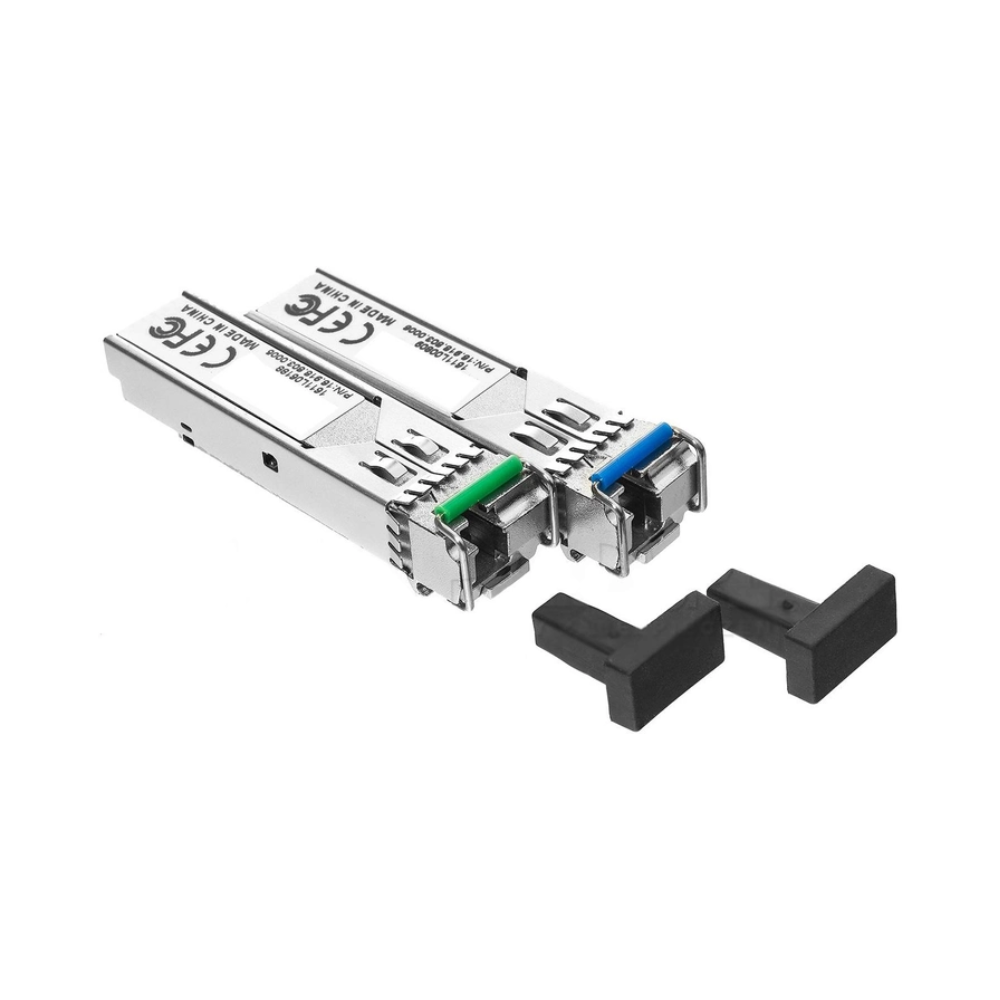

  • Utepo SFP-1.25G-20KM-TX/RX SFP Optical Module Set - Single Mode Single Fibre - LC Connector - 1.25Gbps Data-rate - Up to 20km - Supplied as a Set -  TX + Rx

    Utepo SFP-1.25G-20KM-TX/RX

    Utepo SFP-1.25G-20KM-TX/RX SFP Optical Module Set - Single Mode Single Fibre - LC Connector - 1.25Gbps Data-rate - Up to 20km - Supplied as a Set -  TX + Rx

  • D-Tek GSFP-1310-20-SMF SFP Fibre Module - 1Gbps Speed - Single Mode Dual Fibre - LC Connection - 20Km Distance - 1310nm Wavelegth

    D-Tech GSFP-1310-20-SMF

    D-Tech GSFP-1310-20-SMF SFP Fibre Module - 1Gbps Speed - Single Mode Dual Fibre - LC Connection - 20Km Distance - 1310nm Wavelegth

    D-Tech Stock Clearance – Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

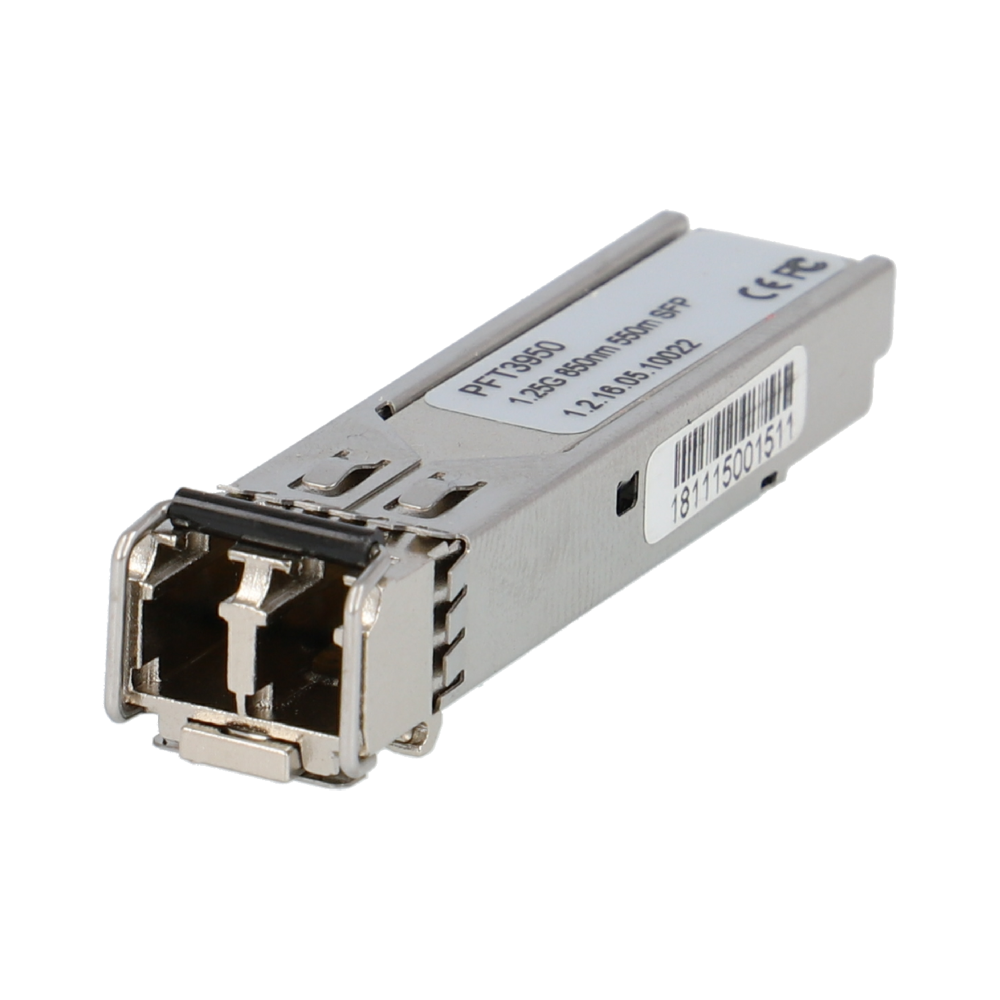

  • D-Tech PFT3950 SFP Fibre Module - 1.25Gbps - Multi-Mode Dual Fibre - LC Connection - 500m Distance - 850nm Wavelength

    D-Tech PFT3950

    D-Tech PFT3950 SFP Fibre Module - 1.25Gbps - Multi-Mode Dual Fibre - LC Connection - 500m Distance - 850nm Wavelength

    D-Tech Stock Clearance – Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

This product is currently unavailable.

Utepo UTP3306TS-PSB Unmanaged Full-Gigabit Network PoE Switch with 4* GbE PoE Ports + 1* GbE Uplink Port + 1* SFP Slot – 60w PoE Budget

Key Features :-

  • 4 * 10/100/1000Base-T PoE+ RJ-45 (Auto MDI/MDIX) ports
  • 1 * 10/100/1000Base-T RJ-45 (Auto MDI/MDIX) port
  • 1 * 1000Base-X SFP port
  • IEEE 802.3af/at
  • 30W max for each port, 60W max for whole switch
  • CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps

Utepo Product-Link

Items UTP3306TS-PSB
Hardware Specifications
Downlink Ports 4*10/100/1000Base-T PoE RJ-45 (Auto-MDI/MDI-X)
Uplink Ports 1*10/100/1000Base-T RJ-45 (Auto-MDI/MDI-X)
1*1000Base-X SFP
Led Indicators 1*PWR Indicator, 1*CCTV Mode Indicator, 4*Downlink Port Link Indicators, 4*Downlink Port PoE Indicators, 2*Uplink Port Link Indicator
Cable Cat5 or better
Dimensions (W*D*H) 135mm*86mm*27mm
Net Weight 0.3kg
Input Voltage DC 48~57V
Power Consumption ≤65W (Full load including PoE)
Installation Desktop/wall-mounted
Material Metal shell
Switch Property
Forwarding Modes Store and Forward
Switching Capacity 12Gbps / non-blocking
Packet Forwarding Rate 8.9Mpps
MAC Table 8k, supported auto learning
Packet Buffer 4Mbit
PoE
PoE device Endpoint PSE (Power Sourcing Equipment)
PoE Standard IEEE 802.3af/at
PoE Pin Assignment 1/2(+), 3/6(-)
PoE Power Output 54V DC
PoE Budget 30W max for each port, 60W max for whole switch
Standard Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over Ethernet
EMC
EMC FCC 47 CFR Part 15 Class A
EN55032 Class A
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV
IEC61000-4-3, Level 2: 3V/m
IEC61000-4-4, Level 2: 1kV
IEC61000-4-5, line to earth: 6kV
IEC61000-4-6, Level 2, (0.15MHz~80MHz)
LVD
LVD EN 62368-1:2014
EN 62328-A11:2017
Environments
Operating Temperature: -5℃~45℃
Relative Humidity: 5%~95% (Non-condensation)
Storage Temperature: -40℃~75℃
Relative Humidity: 5%~95% (Non-condensation)
Certifications
Certifications CE, FCC
UTP3306TS-PSB Datasheet

Data-sheet

User Manual
