Wi-Tek WI-PS206GF-I(V2)

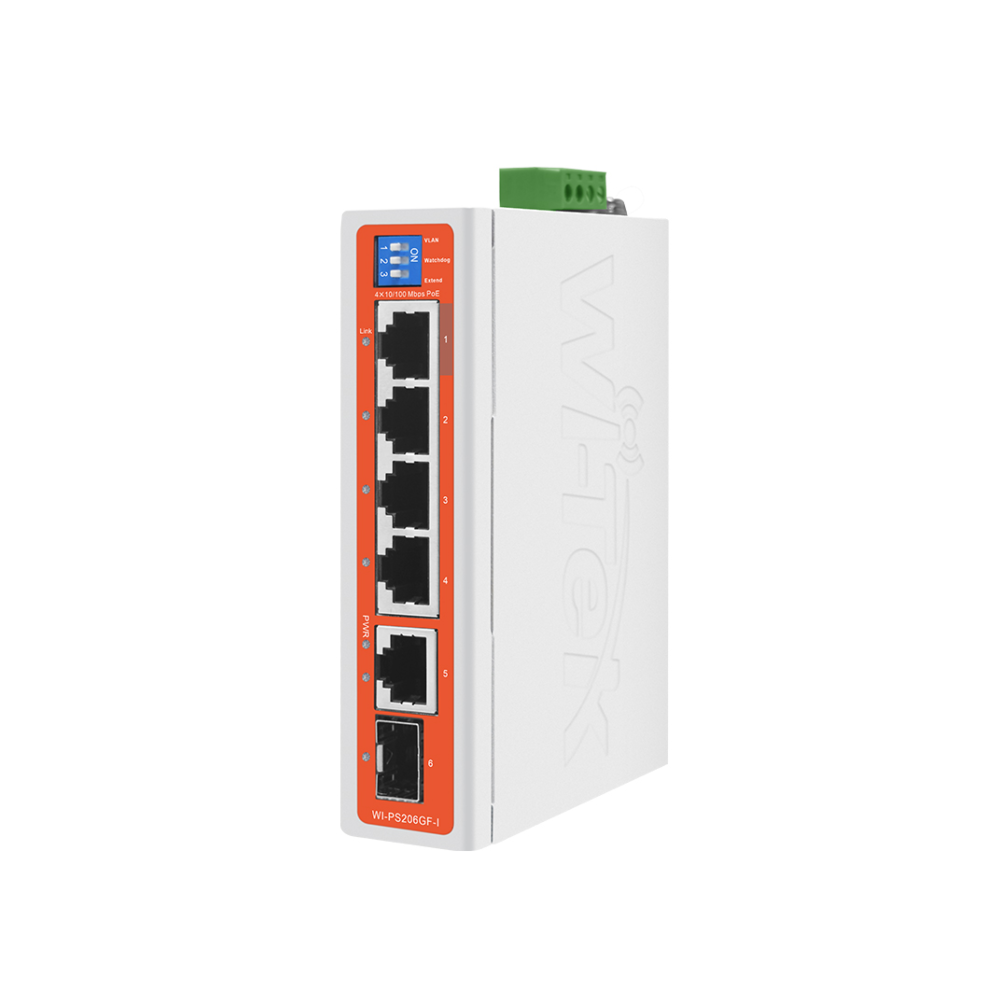

Wi-Tek WI-PS206GF-I(V2) Unmanaged DIN-RAIL Hardened Network PoE Switch with 4* FE PoE Ports + 1* GE Uplink Port + 1* SFP Slot – Smart PoE Watchdog – 110w PoE Power Output – 250m Long Range – PSU Sold Separately
Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
Wi-Tek WI-PS206GF-I(V2) Unmanaged DIN-RAIL Hardened Network PoE Switch with 4* FE PoE Ports + 1* GE Uplink Port + 1* SFP Slot – Smart PoE Watchdog – 110w PoE Power Output – 250m Long Range – PSU Sold Separately
Key Features :-
- Unmanaged PoE switch
- 4 * 10/100 Base-TX PoE ports, 1 * 1000 Base-X SFP and 1 * 10/100/1000 Base-T RJ-45 uplink ports
- Port 1: 802.3af/at/bt 90W PoE output
- Ports 2-4: 802.3 af/at 30W PoE output
- Multiple DIP mode: VLAN Mode/ PoE Watchdog Mode/ Extend Mode
- -30℃~65℃ operating temperature
- 6kV surge immunity
| Model | WI-PS206GF-I |
| Hardware Version | V2 |
| Interfaces | |
| Downlink Ports | 4*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X) |
| Uplink Ports | 1*1000 Base-T RJ45
1*1000 Base-X SFP Slot |
| PoE | |
| PoE Standard | Port 1: IEEE 802.3af/at/bt 90W PoE Port 2-4: IEEE 802.3af/at 30W PoE |
| PoE Power Supply Type | End-span and Mid-span |
| PoE Pin Assignment | 802.3af/at: 1,2 (+), 3,6 (-)
802.3af/at/bt: 3, 6, 4, 5 (+), 1, 2, 7, 8 (-) |
| PoE Power Output | 46~56V DC |
| PoE Ports | 4 |
| Switch Property | |
| Standards | IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet Plus IEEE 802.3bt Power Over Ethernet Plus Plus |
| Forwarding Modes | Store and Forward |
| Packet Buffer | 1Mbit |
| MAC Table | 8K |
| Switching Capacity | 4.8Gbps |
| Packet Forwarding Rate | 3.57Mpps |
| Jumbo Frame | 9216bytes |
| Power Supply | |
| Input Voltage | Power 1,2,3 : 48~57V DC (PoE Switch),12~48V DC (Non-PoE Switch) |
| Power Consumption | Full loading without PoE ≤ 5W
PoE power budget ≤ 55W |
| Reverse polarity protection | Support |
| Environmental Reliability | |
| Protection | Surge Immunity: 6kV/2kV |
| ESD Protection: 8kV contact discharge/ 15kV air discharge | |
| Operating Temperature | -30℃~65℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| LED Indicators | |
| P (Power indicator) | Off: the device is power off or failed Green On: the device power on is normal |
| Link | Off: port link down On: ports link up
Blinking: data on TX/RX |
| Uplink | 5-6 uplink ports Off: port link down
Green On: port link up Green Blinking: data on TX/RX |
| Dimensions (W*D*H) | 119*87*30mm |
| Net Weight | |
| Installation | Desktop/DIN-rail/wall mounting |
| Certifications | |
| Certifications | CE, FCC, RoHS |
