Wi-Tek WI-PS310GF-O IP65-Rated Outdoor Weatherproof Network PoE Switch with 8x GbE PoE Ports + 2x GbE Uplink Ports + 2x Gb SFP Ports - 120W PoE Power Output - PoE Watchdog Function -  Pole/Wall Mount Installation
Wi-Tek WI-PS310GF-O - Image 2
Wi-Tek WI-PS310GF-O - Image 3
Wi-Tek WI-PS310GF-O IP65-Rated Outdoor Weatherproof Network PoE Switch with 8x GbE PoE Ports + 2x GbE Uplink Ports + 2x Gb SFP Ports - 120W PoE Power Output - PoE Watchdog Function -  Pole/Wall Mount Installation
, , , ,

Wi-Tek WI-PS310GF-O

Wi-Tek WI-PS310GF-O IP65-Rated Outdoor Weatherproof Unmanaged Network PoE Switch with 8 * GbE PoE Ports + 2 * GbE Uplink Ports + 2 * Gb SFP Ports – 120W PoE Power Output – PoE Watchdog Function –  Pole/Wall Mount Installation

Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

SKU: WI-PS310GF-O Categories: , , , , Tags: , , , , , , , , , , , ,
  • Wi-Tek WI-SFP30 1000BASE-T Copper SFP Transceiver - 10/100/1000Mbps - RJ45 Port Input for a SFP Port on a Network Switch

    Wi-Tek WI-SFP30

    Wi-Tek WI-SFP30 1000BASE-T Copper SFP Transceiver - 10/100/1000Mbps - Ethernet RJ45 Port Input for a SFP Port on a Network Switch

  • Utepo SFP-1.25G-20KM-TX/RX SFP Optical Module Set - Single Mode Single Fibre - LC Connector - 1.25Gbps Data-rate - Up to 20km - Supplied as a Set -  TX + Rx

    Utepo SFP-1.25G-20KM-TX/RX

    Utepo SFP-1.25G-20KM-TX/RX SFP Optical Module Set - Single Mode Single Fibre - LC Connector - 1.25Gbps Data-rate - Up to 20km - Supplied as a Set -  TX + Rx

  • D-Tek GSFP-1310-20-SMF SFP Fibre Module - 1Gbps Speed - Single Mode Dual Fibre - LC Connection - 20Km Distance - 1310nm Wavelegth

    D-Tech GSFP-1310-20-SMF

    D-Tech GSFP-1310-20-SMF SFP Fibre Module - 1Gbps Speed - Single Mode Dual Fibre - LC Connection - 20Km Distance - 1310nm Wavelegth

    D-Tech Stock Clearance – Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

  • D-Tech PFT3950 SFP Fibre Module - 1.25Gbps - Multi-Mode Dual Fibre - LC Connection - 500m Distance - 850nm Wavelength

    D-Tech PFT3950

    D-Tech PFT3950 SFP Fibre Module - 1.25Gbps - Multi-Mode Dual Fibre - LC Connection - 500m Distance - 850nm Wavelength

    D-Tech Stock Clearance – Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

This product is currently unavailable.

Wi-Tek WI-PS310GF-O IP65-Rated Outdoor Weatherproof Unmanaged Network PoE Switch with 8 * GbE PoE Ports + 2 * GbE Uplink Ports + 2 * Gb SFP Ports – 120W PoE Power Output – PoE Watchdog Function –  Pole/Wall Mount Installation

Features :-

  • 8 * 10/100/1000Mbps RJ45 PoE Ports
  • 2 * 100/1000Mbps Uplink Ports
  • 2 * 100/1000Mbps SFP Slots
  • IP65 weatherproof enclosure
  • Working Temperature: -30 ～70℃
  • All-in-one for easy installation

Wi-Tek Product-Link

Products

WI-PS310GF-O

Hardware Features

Hardware Version

 V1

Interface

8 10/100/1000Mbps RJ45 PoE Ports

2 100/1000Mbps Uplink Ports

2 100/1000Mbps SFP Slots

PoE Ports

Port 1- 6: 802.3af/at

PoE Ports: Port 7- 8 802.3 bt 60W

Network Media

10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)

100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Power Supply

AC 110~240V 50/60HZ

Power Budget

120W

Exchange Capacity

24Gbps

Packet Forwarding Rate

17.37Mpps

Mac Address Table

8k

Protection

6kV PoE Surge Protection

10kV AC Surge Protection

Jumbo Frame

10240Bytes

SOFTWARE FEATURES

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

340×315×120 mm

Switch Dimension

350×255×90 mm

Gross Weight

1.95kg

Net Weight

1.4kg

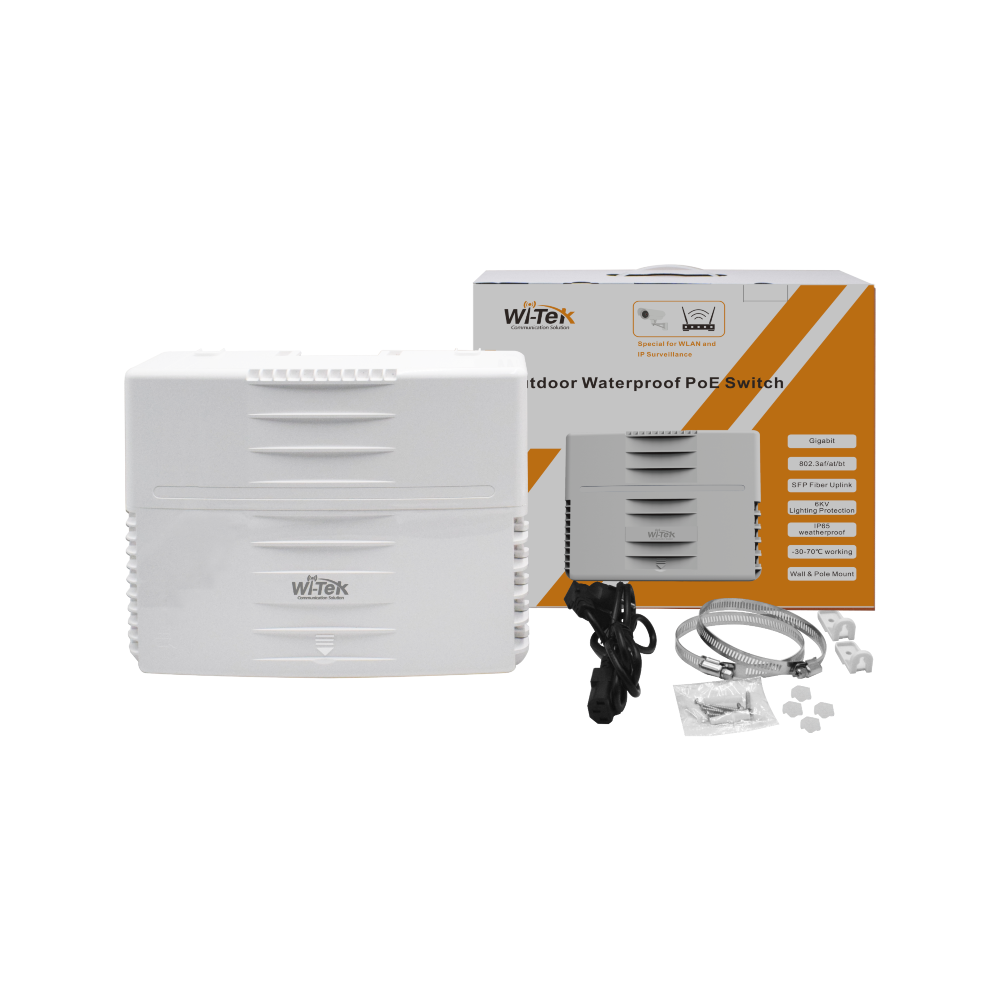

Package Contents

1 × PoE Switch

1 × Power cord

1 × Quick Installation Guide

1 × Wall mounting KIT

1 × Pole mounting KIT

6 × Screws

Environment

Working Temperature: -30℃ ~70℃(22℉~158℉)

Storage Temperature: -40℃~70℃ (-40~158℉)

Operating Humidity: 10~90% RH non-condensing

Storage Humidity: 5~90% RH non-condensing
