Hikvision DS-KD-KP/S

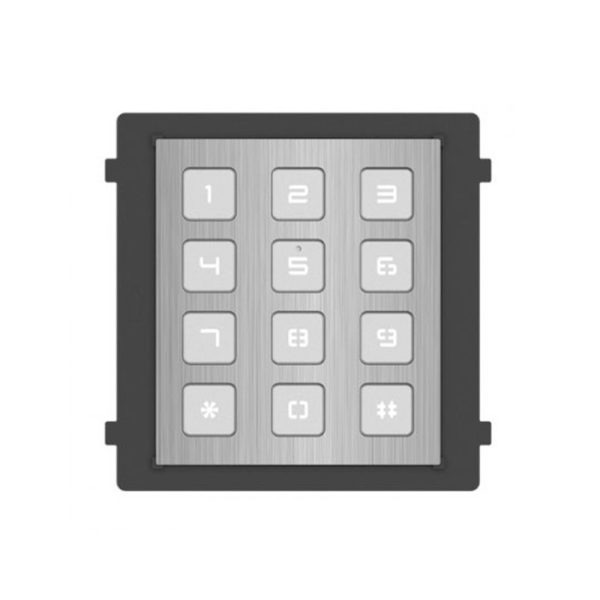

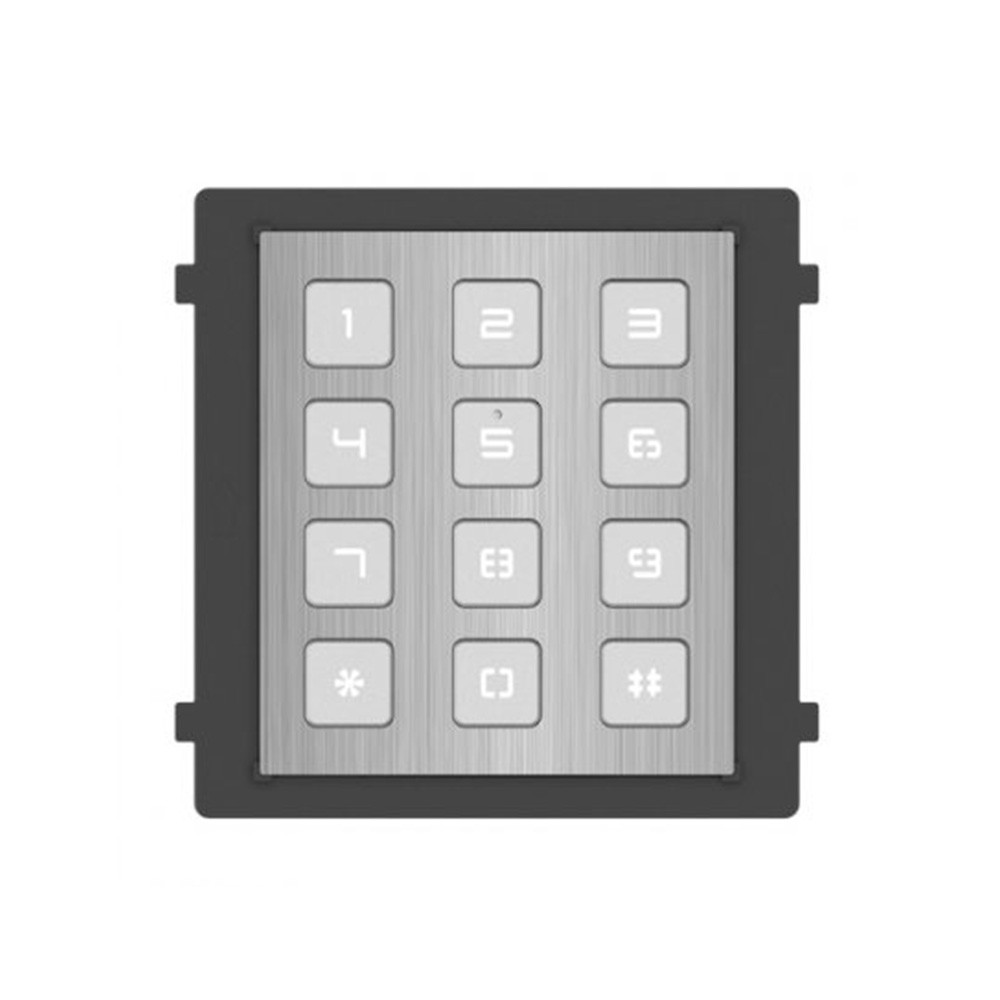

Hikvision DS-KD-KP/S Stainless Steel IP Video Intercom Keypad Module – Support Pin-Code to Open Door / Call Indoor Monitor

Hikvision DS-KD-KP/S Stainless Steel IP Video Intercom Keypad Module – Support Pin-Code to Open Door / Call Indoor Monitor

Features:-

  • Keypad module
  • Module connection with RS-485
  • Input pin code to open the door, call the indoor station
  • IP65, Backlight compensation
  • Flush mounting / Surface mounting
  • 98.21mm x 100.21mm x 33.7mm
  • Powered by other module (Power input: 12VDC, Power output: 12VDC)
  • Hikvision Intercom Online Designer Tool

Hikvision Product-Link -> DS-KD-KP/S

System Parameters

  • Processor: Embedded MCU Processor

General

  • Power Consumption: ≤ 2 W
  • Output Power: 12 VDC (powered for the other module)
  • IP Protection Level: IP65, IK7
  • Working Temperature: -40° C to +55° C(-40° F to 131° F)
  • Working Humidity: 10% to 95%
  • Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87″ × 3.95″ × 1.33″)
  • Weight: 529 g (with packaging) 265 g (without packaging)

Device Interfaces

  • Module Connecting: 2 (1 input, 1 output)
  • Debug: 1

Hikvision Intercom Designer Tool -> Hikvision Intercom Design Tool

Hikvision App Store – https://appstore.hikvision.com/
