Hikvision DS-2CD6425G1-20

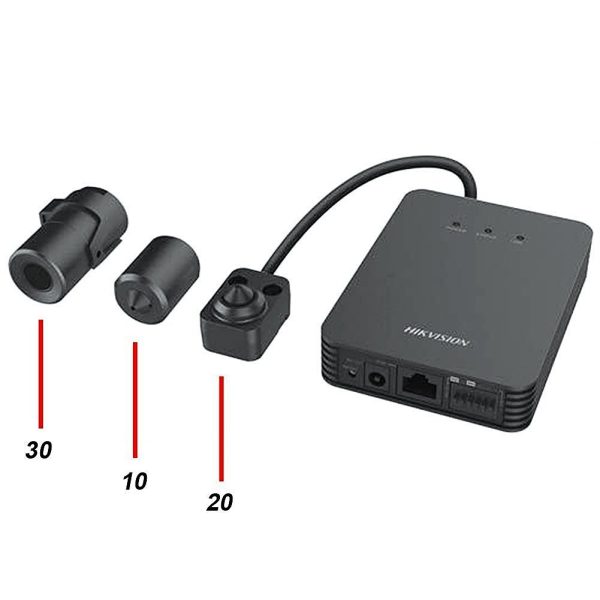

Hikvision DS-2CD6425G1-20 6-Line 120dB True WDR 2MP 1080P PoE IP Low-light (0.002 Lux Color) Covert Mini Pinhole Board Camera with 3.7MM L20 Cone Shape Fixed Lens, 8m Long Lead
SKU: DS-2CD6425G1-20
Categories: CCTV / Surveillance, IP Cameras, IP Covert Cameras, IP Surveillance
Tags: 1080P, 2MP, Alarm, Behavior Analysis, Camera, Covert Camera, Fixed Lens, H265, Hikvision, IP Camera, Network Camera, PoE
Hikvision DS-2CD6425G1-20 6-Line 120dB True WDR 2MP 1080P PoE IP Low-light (0.002 Lux Color) Covert Mini Pinhole Board Camera with 3.7MM L20 Cone Shape Fixed Lens, 8m Long Lead
Key Features :-
- 1/2.8” Progressive Scan CMOS
- 1920 × 1080 @ 30fps
- Three streams
- H.265 / H.265 / H.264 / H.264 / MJPEG
- 0.002 Lux Colour Low Light Sensor
- 120dB WDR
- 3D-DNR
- 4 behavior analyses
- Audio and alarm I/O
- Smart encoding: low bit rate, low latency
- ROI
- 8m connecting cable
- Pinhole board camera with cone-shape lens included
Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
- Shutter Time: 1/3 s to 1/100,000 s
Lens
- Focal Length & FOV
-
L10/L20 model: 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°; 3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°
-
L30 model: 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°; 4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
-
- Lens Mount
-
L10/L20: Mini
-
L30: M12
-
- Iris Type: Fixed
- Aperture
- L10/L20: 2.8 mm: F2.5; 3.7 mm: F2.5
- L30: 2.8 mm: F2.0; 4 mm: F2
Video
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240); 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240); 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CVR / BVR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): Support 1 fixed region for main stream
Audio
- Audio Type: Mono
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 15 channels
- API: Open Network Video Interface, ISAPI, SDK, ISUP 5.0
- User/Host: Up to 32 users – 3 level: administrator, operator, and user
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE10, IE11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, HLC, defog, 3D DNR
- Privacy Mask: Yes
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
- Audio: 1 input (line in), 1 output (line out)
- Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key: Yes
Event
- Basic Event: Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
- Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Audio exception detection, defocus detection, scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
General
- Power: 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block; PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
- Dimension:
- Main body: 77.5 mm × 69 mm × 26 mm (3.1″ × 2.7″ × 1.0″)
-
L10: Ø26 mm × 40 mm (Ø1.0 × 1.6″)
L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0″ × 1.0″)
L30: Ø26 mm × 50 mm (Ø1.0 × 2.0″)”
- Package Dimension:
-
Kit/Main body: 254 mm × 164 mm × 130 mm (10″ × 6.5″ × 5.1″)
-
Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5″ × 3.9″)”
-
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Length Of Lens Cable: 2 m (6.6 ft.) and 8 m (26.2 ft.) optional
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
