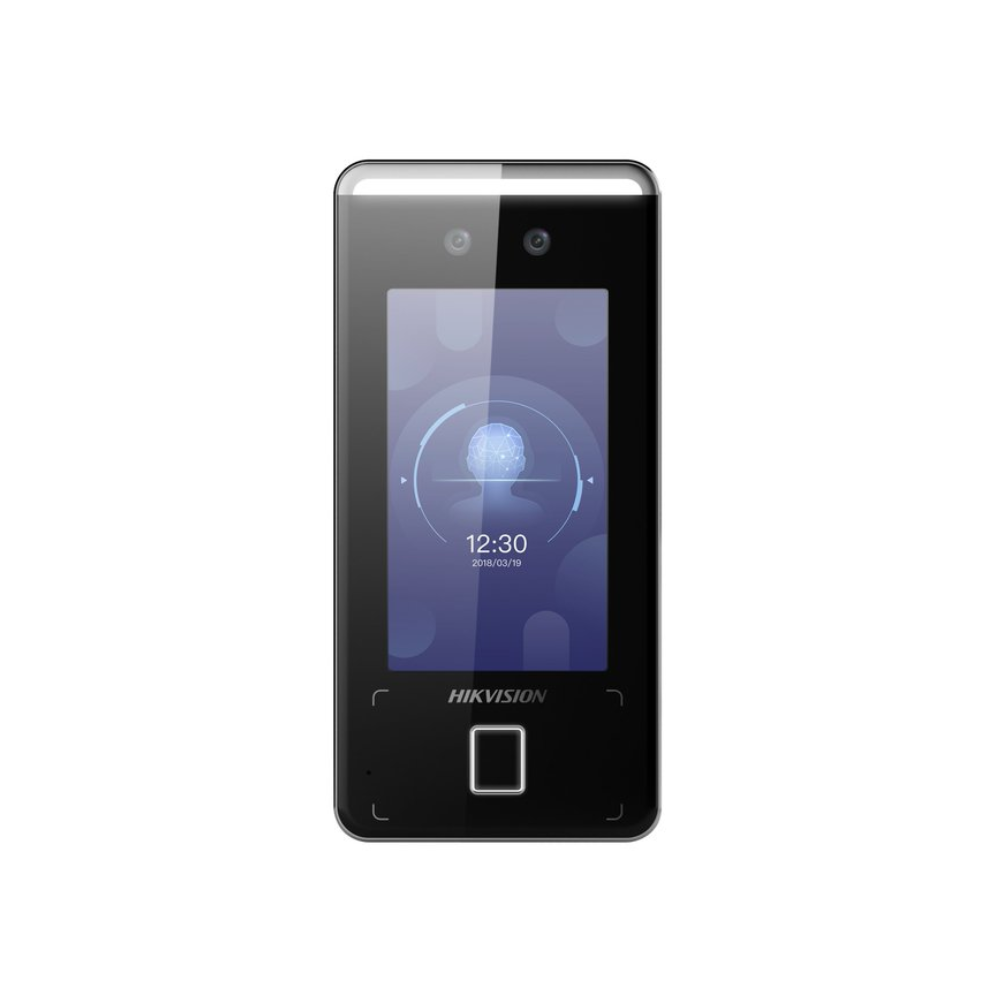

Hikvision DS-K1T341CMFW

Hikvision DS-K1T341CMFW Value-series Wireless IP Face-Recognition Access Control Terminal – 4.3″ Touchscreen – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in MiFare Card-Reader + Fingerprint Reader

Hikvision DS-K1T341CMFW Value-series Wireless IP Face-Recognition Access Control Terminal – 4.3″ Touchscreen – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in MiFare Card-Reader + Fingerprint Reader

Features:-

  • Deep learning algorithm
  • 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
  • 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
  • Multiple authentication modes, including face, fingerprint and card, etc
  • Face recognition duration < 0.2 s/User
  • Supports mask-wearing detection
  • Connects to external access controller or Wiegand card reader via Wiegand protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
  • Two-way audio with client software, door station, indoor station, and main station
  • Can be used for Time & Attendance Solution
  • Hikvision Intercom Online Designer Tool

Hikvision Product-Link -> DS-K1T341CMFW



Screen

  • Dimensions: 4.3-inch
  • Type: LCD
  • Operation Method: Capacitive touch screen

Camera

  • Pixel: 2MP
  • Lens: x 2

Audio

  • Tone Quality: Noise suppression and echo cancellation

Network

  • Wired Network: 10M / 100M self-adaptive

Interface

  • Network Interface: 1
  • Lock Output: 1
  • Exit Button: 1
  • Door Contact Input: 1
  • Tamper: 1
  • RS-485: 1
  • Wiegand: 1
  • USB: 1
  • Power Interface: 2-pin

Authentication

  • Face Recognition Distance: >2m
  • Face Recognition Duration: <0.2ms
  • Card Type: Mifare 1 card
  • Card Reading Frequency: 13.56MHz

Function

  • Live-view: Spport
  • QR Code Recognition: Support
  • Face Anti-Spoofing: Support
  • Audio Prompt: Support
  • Time Synchronization: Support

Others

  • Button: Touch Screen
  • Power Supply Method: 2 pin connector
  • Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity: 0 to 90% (No condensing)
  • Dimensions: 172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)
  • Application Environment: Indoor and outdoor
  • Installation: Surface mounting
Camera Resolution

2MP
