Hikvision DS-2TD1228T-2/QA HeatPro Series H265 Thermal & Optical Bi-spectrum Thermography Network Turret Camera - AI Features - Deep Learning - 256 x 192 Thermal Resolution + 4MP Optical Resolution - 2.1mm Thermal Fixed Lens + 2.2mm Optical Fixed Lens - 15m IR + 30m White Light Range - Strobe + Siren - Supports Smoke Detection - Audio & Alarm Input / Output

CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras

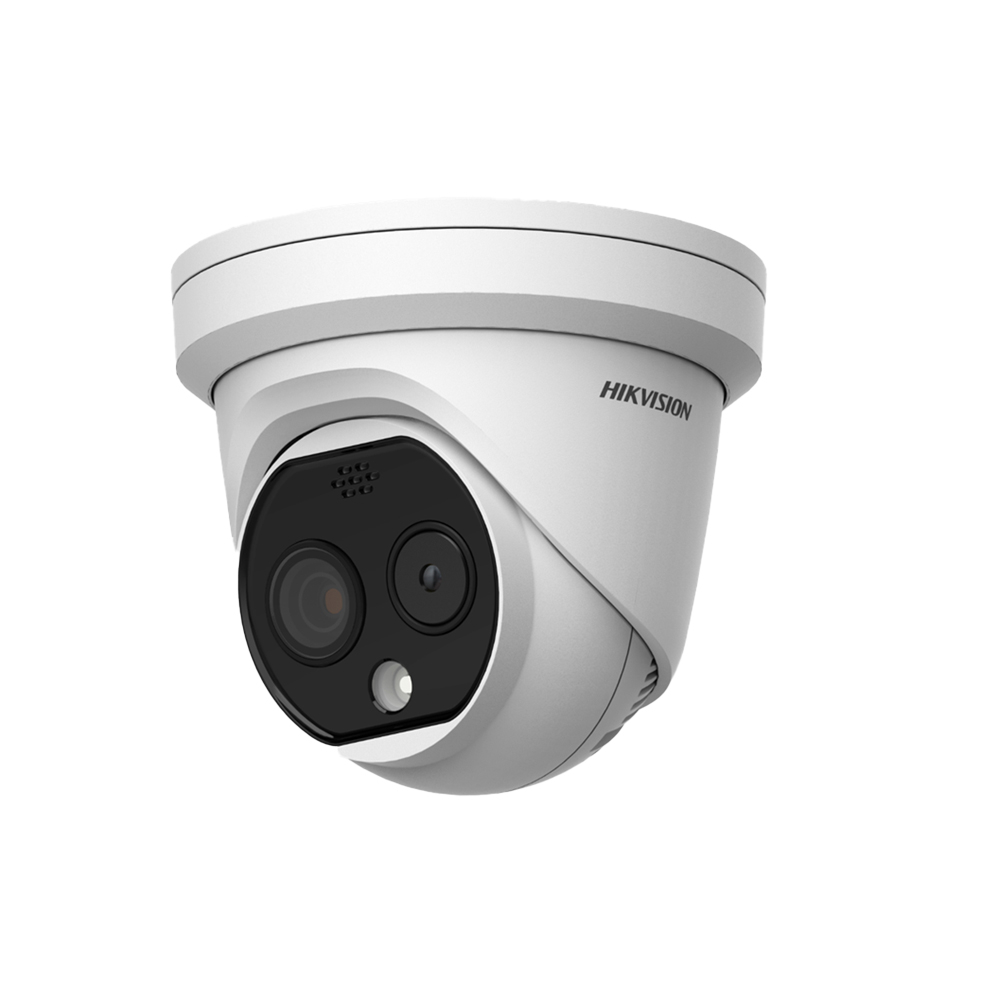

Hikvision DS-2TD1228T-2/QA

Name: Hikvision DS-2TD1228T-2/QA
SKU: DS-2TD1228T-2/QA

Hikvision DS-2TD1228T-2/QA HeatPro Series H265 Thermal & Optical Bi-spectrum Thermography Network Turret Camera – AI Features – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 2.1mm Thermal Fixed Lens + 2.2mm Optical Fixed Lens – 15m IR + 30m White Light Range – Strobe + Siren – Supports Smoke Detection – Audio & Alarm Input / Output

SKU: DS-2TD1228T-2/QA Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras Tags: 120dB True-WDR, Alarm, Bispectral Camera, Camera, Deep Learning, Dual-Channel, Dual-Lens Camera, Dual-Sensor Camera, Eyeball Camera, Fixed Lens, Full Colour, HeatPro, Hikvision, Human Detection, IP Camera, IR, Network Camera, Perimeter Protection, PoE, Siren, Strobe, Thermal Camera, Thermography, Turret Camera, Vehicle Detection, Weatherproof, White, White Light LED

Key Features :-

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
Video content analysis: vehicle/human classification
Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1022°F), Max (± 2°C, ± 2%)
Supports smoke detection algorithm
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee
Support sun-reflection filter and forklift alarm filter algorithm
Suitable applications: industrial, fire-detection, smoke-detection, temperature threshold alert, manufacturing, electrical plants etc.

Hikvision Product-Link

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 256 x 192
Pixel Pitch: 12 μm
Spectral Range: 8 μm to 14 μm
NETD: ≤ 40 mK (@25° C,F# = 1.0)
Focal Length: 2.1 mm
IFOV: 5.71 mrad
Aperture: F1.0
Field of View: 90.0° × 65.4° (H × V)
Min. Focusing Distance: 0.1 m
Digital Zoom: ×2, ×4

Optical Module

Image Sensor: 1/2.7″ Progressive Scan CMOS
Resolution: 2688 × 1520
Min. Illumination: 0.0176Lux @ (F2.25,AGC ON); 0 Lux with IR
Field of View: 117.8° × 70.4° (H × V)
Focal Length: 2.2 mm
Shutter Speed: 1 s to 1/100,000 s
White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode: IR Cut Filter with Auto Switch
WDR: 120 dB
Aperture: F 2.25

Image Effect

Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

IR Distance: Up to 15 m
IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm

White Light Range: Up to 30 m
Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception); 3 preset voice alerts (one for each); 6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range: -20°C to 550°C (-4°F to 1022°F);
Temperature Accuracy: Max (±2°C, ±2 %)
General Function: Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

Video and Audio

Main Stream:
- - Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
  - Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream:
- - Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
  - Optical: 50 Hz: 25 fps (704 × 576, 352 × 288); 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression: Main Stream: H.265 / H.264; Sub-Stream: H.265 / H.264 / MJPEG
Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP, TLS
Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API: ISAPI, HIKVISION SDK, ISUP and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
Simultaneous Live View: Up to 20 channels
User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client: iVMS-4200, Hik-Connect

Interface

Alarm Input: 1, alarm input (0-5 VDC)
Alarm Output: 1, alarm output (alarm response actions configurable)
Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input: 1, 3.5 mm Mic in/Line in interface; Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output: Linear level, impedance: 600 Ω
Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)

General

Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption: 12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level: IP67 Standard; TVS 4000V lightning protection, surge protection, voltage transient protection
Dimensions: 138.3 mm × 138.3 mm × 123.1 mm (5.45″ × 5.45″ × 4.85″)
Weight: 940 g (2.07 lb)
