Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms
Hikvision DS-KIS602(B)

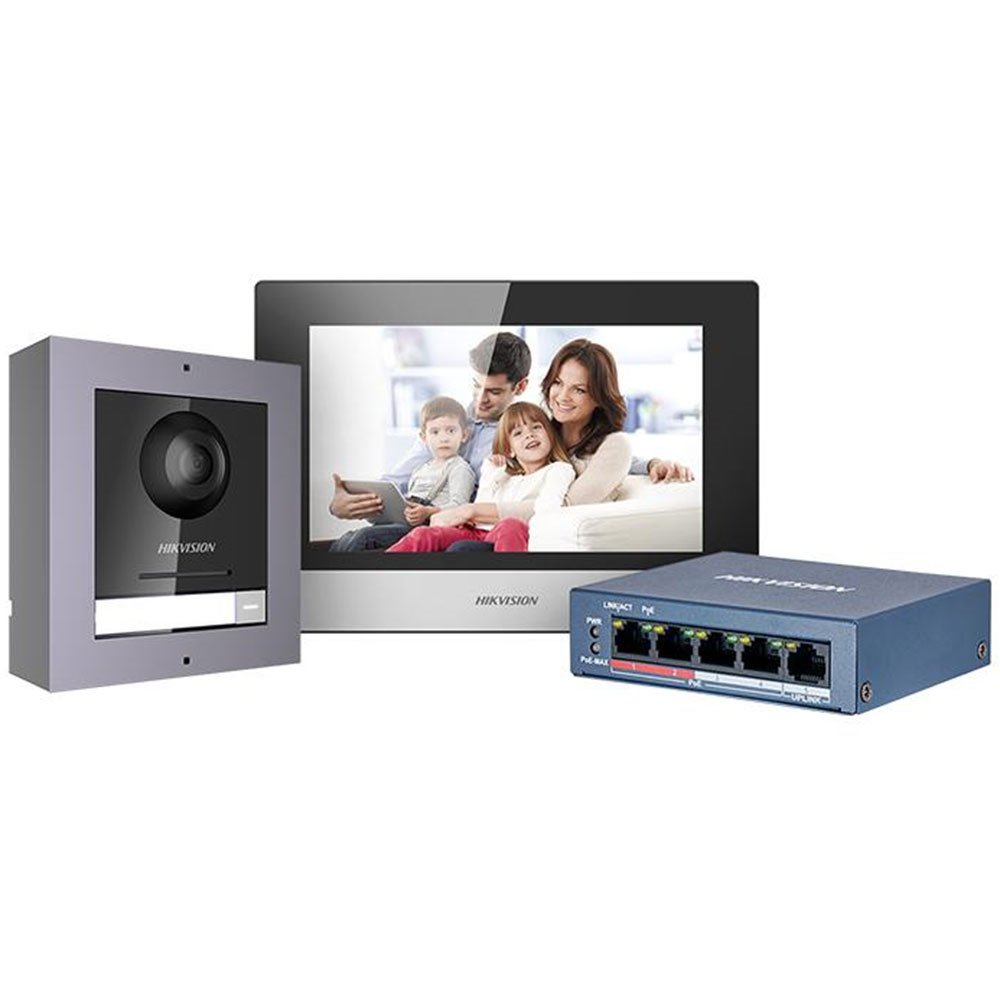

Hikvision DS-KIS602(B) PoE IP Video Intercom Kit – includes 1 * DS-KD8003-IME1/Surface Outdoor Calling Station + 1 * DS-KH6320-WTE1 7″ (7-Inch) Indoor Touchscreen Monitor + 1 * PoE Switch
SKU: DS-KIS602(B)
Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms
Tags: 1080P, 2.4GHz Wireless, 2MP, Built-in Mic, Camera, Fisheye, Gate Automation, Gate Control, Hik-connect, Hikvision, Intercom, Network, PoE, PoE Switch, Speaker, Touchscreen, Video Intercom, Weatherproof
Hikvision DS-KIS602(B) PoE IP Video Intercom Kit – includes 1 * DS-KD8003-IME1/Surface Outdoor Calling Station + 1 * DS-KH6320-WTE1 7″ (7-Inch) Indoor Touchscreen Monitor + 1 * PoE Switch
Key Features :-
- IP video intercom bundle for villa or house
- One call button for easier calls
- Stores messages and captured pictures in the TF card
- Convenient Hik-Connect APP Mobile Control
- Including: 1 * DS-KD8003-IME1(B)/Surface, 1 * DS-KH6320-WTE1, 1 * 4-port standard PoE switch, 1 * 16 GB TF card
- Power adapter included in the package
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System Parameters
- Operation System: Embedded Linux operation system
Alarm Parameters
- Alarm Input: Tampering Alarm
Network Parameters
- Ethernet: 10/100 Mbps Self-Adaptive Ethernet
- Network Protocol: TCP/IP, RTSP
Audio Parameters
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Quality: Noise Suppression and Echo Cancellation
General
- Power Supply: 12 VDC/PoE ( IEEE 802.3af)
- Power Consumption: ≤10 W
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
- Dimension (L X W X D): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
- Weight: 683 g (with packaging) 355 g (without packaging)
- IP Protection Level: IP65
- Memory: 128 MB
- Dimensions (L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
Video Parameters
- Video Compression Standard: H.264
- Resolution: Main Stream: 1920 × 1080,Sub Stream: 720 × 480
- Camera: Low Illumination 2 MP HD IR Camera
Device Interfaces
- I/O Input: 4
- I/O Output: 2
System Parameters
- Processor: Embedded MCU Processor
- Operation System: Embedded Linux Operation System
Audio Parameters
- Audio Compression Rate: 64 Kbps
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
Display Parameters
- Display Resolution: 1024 × 600
- Display Screen: 7-inch colorful IPS LCD
Light Supplement
- Light Supplement Mode: IR Supplement
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
