HiLook THC-B323-Z

Please login for price

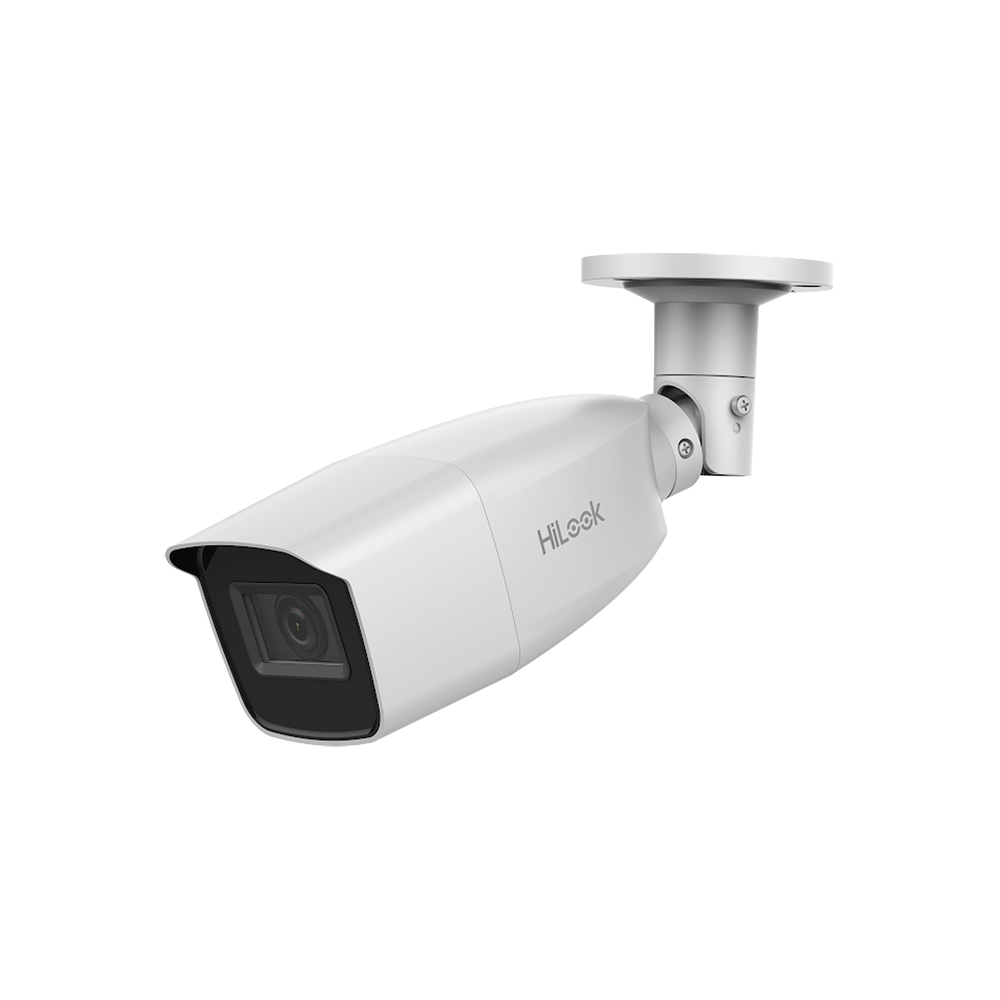

HiLook THC-B323-Z 2MP 1080P HDTVI Ultra Low-light (0.005 Lux Colour) EXIR (70m) True-WDR (120dB) Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens; Supports HDTVI / HDCVI / AHD / CVBS Video Output

Hikvision DS-1280ZJ-S

Hikvision DS-1280ZJ-S Weatherproof Junction Box for Bullet Cameras

Temporarily unavailable

Hikvision DS-1275ZJ-SUS

Hikvision DS-1275ZJ-SUS Stainless Steel Weatherproof Universal Pole-mount Bracket

Temporarily unavailable

Hikvision DS-1276ZJ-SUS

Hikvision DS-1276ZJ-SUS Stainless Steel Weatherproof Corner-Mount Bracket

Temporarily unavailable

Warranty: 2 Years

Description

HiLook THC-B323-Z 2MP 1080P HDTVI Ultra Low-light (0.005 Lux Colour) EXIR (70m) True-WDR (120dB) Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens; Supports HDTVI / HDCVI / AHD / CVBS Video Output

Features :-

  • 2MP high-performance CMOS
  • Ultra low light
  • 1920 × 1080 resolution
  • 2.7~13.5mm Motorized Zoom vari-focal lens
  • OSD menu, 3D DNR, 120dB true WDR, day/night switch
  • EXIR 2.0, smart IR, up to 70m IR distance
  • 4 in 1 video output (switchable TVI / AHD / CVI / CVBS)
  • IP66

Camera

  • Lens: 2.7 mm to 13.5 mm
  • Horizontal Field Of View: 102.4° to 31°
  • Lens Mount: Φ14
  • Day & Night: IR cut filter
  • Synchronization: Internal synchronization
  • WDR (Wide Dynamic Range): 120 dB
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Image Sensor: 2MP CMOS image sensor
  • Signal System: PAL/NTSC
  • Frame Rate: PAL: 1080p @ 25fps NTSC: 1080p @ 30fps
  • Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Menu

  • AGC: High / Medium / Low
  • Day/Night Mode: Auto / Color / BW (Black and White)
  • Backlight Compensation: Support
  • WDR: Support
  • Language: English
  • Functions: Brightness, Sharpness, 3D DNR , Mirror, Smart IR
  • HLC: Support

Interface

  • Video Output: 1 HD analog output
  • Switch Button: TVI / AHD / CVI / CVBS

General

  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Power Supply: 12VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
  • Power Consumption: Max. 7.7 W
  • Protection Level: IP66
  • Material: Metal
  • IR Range: Up to 70 m
  • Dimensions: 256.4 mm × 83.3 mm × 78.2 mm (10″ × 3.2″ × 3″)
  • Weight: Approx. 720 g (1.59 lb.)

Additional information

Camera Resolution

2MP

Camera Type

Bullet Camera

Brand

Weatherproof

Yes

HDTVI Max Res

2MP

Input Voltage

12VDC

Surveillance Type

AHD, Analogue, HDCVI, HDTVI

Weatherproof IP Rating

IP66

Wide Dynamic Range

120dB True WDR

AHD Max Res

2MP

HDCVI Max Res

2MP

Lens Type

Motorized Zoom Lens

Lenses

2.7-13.5MM

HiLook THC-B323-Z Data-sheet
