Hikvision DS-KIS708EY

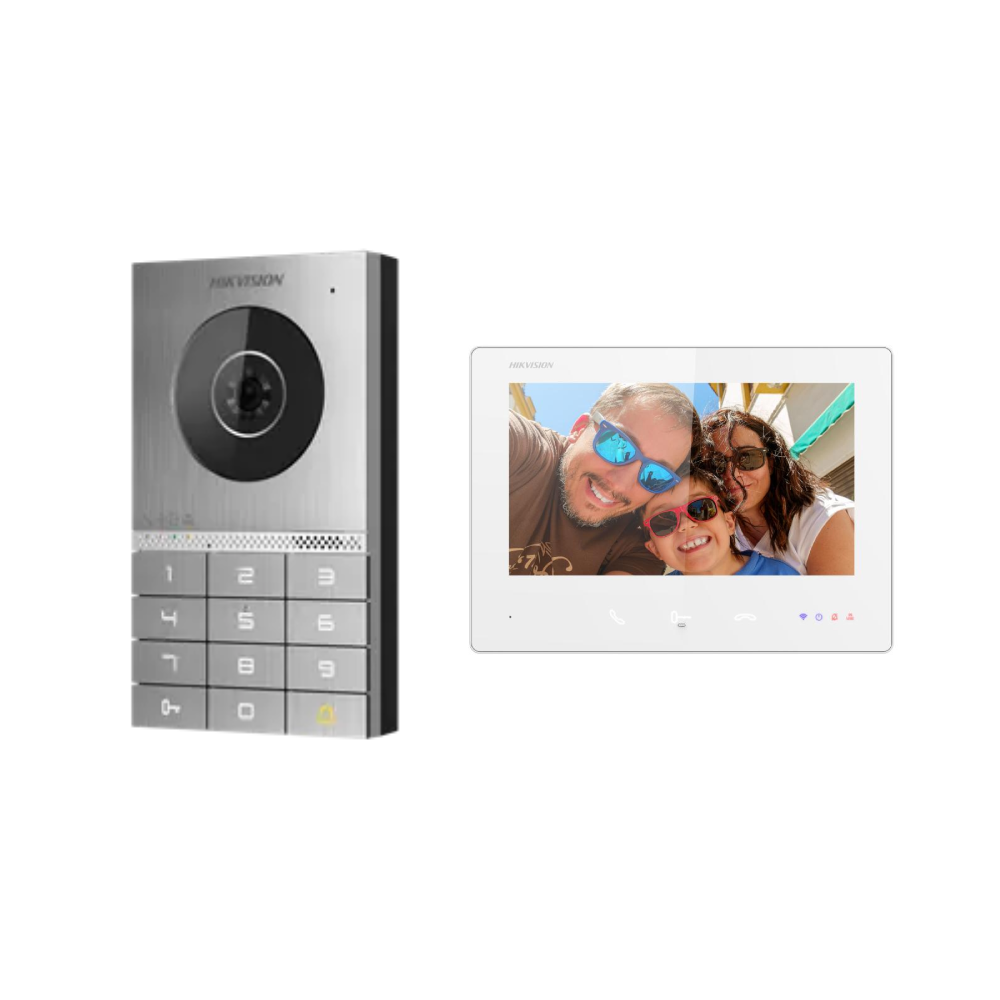

Hikvision DS-KIS708EY 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station with Built-in Keypad + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU – Two-Lock Control
SKU: DS-KIS708EY
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Video Intercoms
Tags: 2-Wire, Display, Gate Automation, Gate Control, Hikvision, Intercom, Keypad, Kit, Monitor, Network, Silver, Touchscreen, Video Intercom, Weatherproof
Hikvision DS-KIS708EY 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station with Built-in Keypad + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU – Two-Lock Control
Key Features :-
- Great image quality of 2MP resolution
- One-press to call, remote unlocking with App control
- Real plug&play
- IP65 water resistant and IK08 vandal resistant entry panel
- 7-inch touch screen indoor monitor, user friendly interface
- Support PIN code to open the door
Outdoor station/System parameters
- Processor: Embedded Processor
- ROM: 4GB
- RAM: 256MB
- Operation system: Embedded Linux operation system
Outdoor station/Screen parameters
- Screen size: NA
- Resolution: NA
- Type: NA
- Operation method: NA
Outdoor station/Video parameters
- Supplement light: Supplement light Low illumination, IR supplement lights
- Resolution: 2MP
- Lens: 1
- Wide dynamic range (WDR): Support
- FOV: Horizontal: 135°, Vertical: 85°
- Video compression standard: H.264
Outdoor station/Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Volume adjustment: Adjustable
- Audio compression standard: G.711 U, G.726
- Audio compression bitrate: 64 Kps
- Audio quality: Noise suppression and echo cancellation
Outdoor station/Capacity parameters
- Linked indoor station capacity: Max.400
- Sub door station capacity: 16
Outdoor station/Network parameters
- Wireless network: 10/100 Mbps self-adaptive through 2-wire interface
- Wi-Fi: Only AP mode for configuration
Outdoor station/Device interfaces
- RS-485: 1
- Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Exit button: 1
- Door contact input: 1
- Alarm input: 2 (supports Exit button or Door contact input）
- Power supply input: 12VDC input
- TAMPER: 1
- Debugging port: 1
- Two-Wire: 1
- DIP Switch: 6 decimal DIP switch
Outdoor station/General
- Button: 12
- Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
- Power supply: 48V，Powered by Indoor Station DS-KH7300EY-WTPE2 or 12VDC
- Power consumption: ≤ 6 W
- Working temperature: -40° C to 60° C (-22° F to 140° F)
- Working humidity: 10% to 90%
- Application environment: Outdoor
- Dimension (W × H × D): 165mm × 95 mm × 25 mm (6.5″ × 3.7″ × 0.98″)
- Installation: Surface mounting
- Protective level: IP65 IK08
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
Indoor Monitor/System parameters
- Operation system: Embedded Linux operation system
- RAM: 32MB
- ROM: 128MB
- Processor: Embedded processor
Indoor Monitor/Display parameters
- Type: Colorful TFT screen
- Operatiing method: Capacitive touch screen
- Screen size: 7-inch
Indoor Monitor/Video parameter
- Video compression standard: /
- Resolution: 1024 × 600
- Lens: /
- Wide dynamic range (WDR): /
- FOV: /
Indoor Monitor/Audio parameters
- Audio input: 1 Built-in omnidirectional microphone
- Audio output: 1 Buit-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Audio compression standard: G.711 U, G.711 A
- Audio compression bitrate: 64 Kbps
Indoor Monitor/Capacity parameters
- Notice capacity: 200 captured pictures (with TF card)
- Linked indoor extensions capacity: 3
Indoor Monitor/Network parameters
- Wired network: Two-wire network
- Wireless network: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network protocol: TCP/IP, SIP, RTSP
Indoor Monitor/Device interfaces
- RS-485: /
- Alarm input: 1
- Alarm output: /
- Power supply input: 24VDC 2.5A
- TAMPER: /
- TF card: Max to 128 G, SD 2.0 or lower version
- USB: /
- Two-Wire: 4, 1 for indoor station power in, 1 for indoor station power out, 1 for outdoor station power out, 1 for outdoor station out
- DIP switch: 2 decimal DIP switch and 1 binary DIP switch
Indoor Monitor/General
- Button: 3 Touch buttons (Answer, Unlock, Hang up) + 1 Physical button（Reset）
- Power supply: 24 VDC, 2.5 A
- Power consumption: ≤ 6 W
- Working humidity: 10% to 90% (no-condensing)
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Dimension (W × H × D): 190.2 mm × 138.2 mm × 20 mm (7.5″ × 5.4″ × 0.8″)
- Installation: Surface mounting
- Application environment: Indoor
- Protective level: /
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
