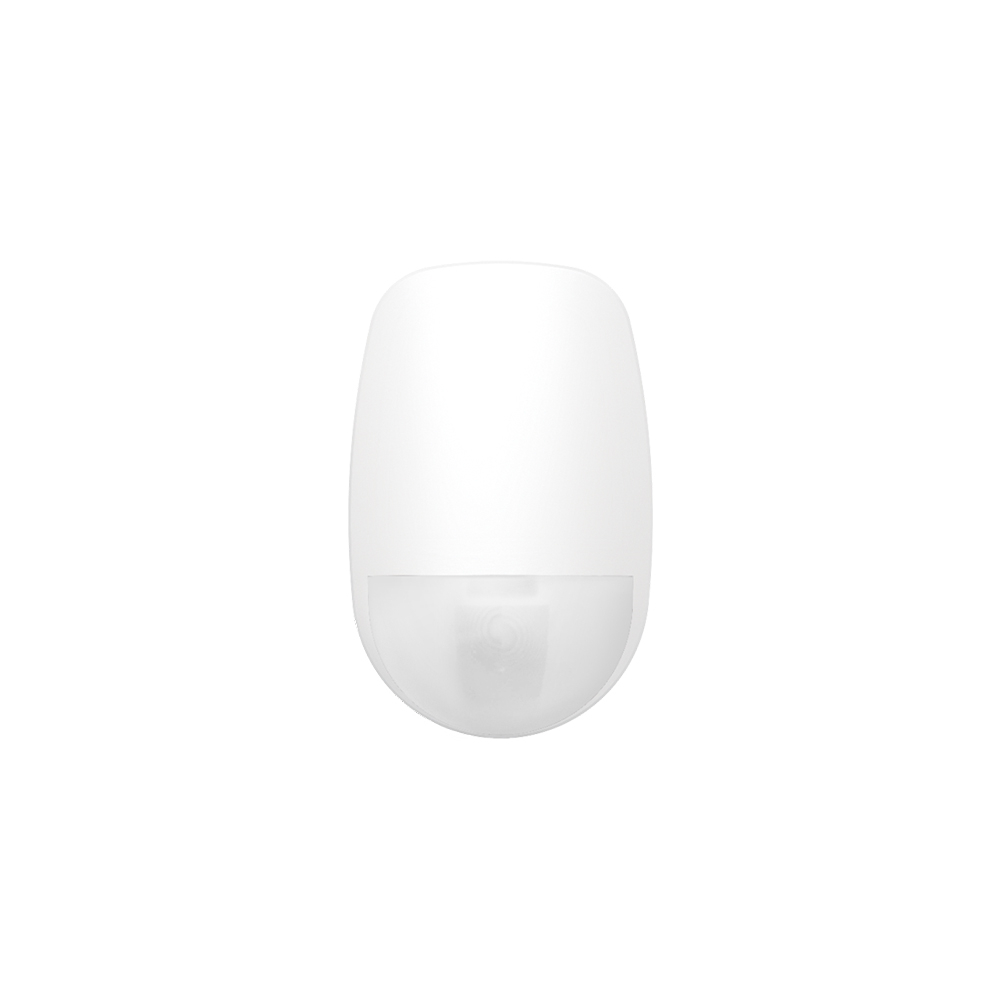

Hikvision DS-PDC15-EG2-WB

Detection Performance

• Detection Method: Passive Infrared
• Detection Range: 15m
• Detection Angle: 6.3°
• Detection Zones: 18
• Detectable Speed: 0.3～2m/s
• Pet Immunity: None
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue(Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1.2Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: 5 years in work status (being triggered 20 times per day)
• Power Supply: Battery Powered
• Battery Type: CR123A × 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (W x H x D): 65.5mm × 103mm × 48.5mm
• Weight: 128g
• Mounting Height: 2.4 to 3.6m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
