Hikvision DS-PDCL12-EG2-WB

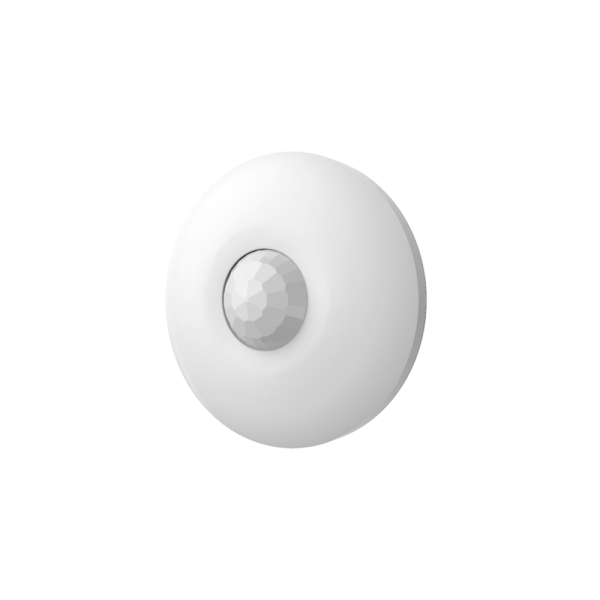

Hikvision DS-PDCL12-EG2-WB 433MHz Wireless Battery-Powered Indoor Ceiling-Mount 360° PIR Detector – Up to 12m Distance Coverage – To Work with AX Pro Alarm Hub

Hikvision DS-PDCL12-EG2-WB 433MHz Wireless Battery-Powered Indoor Ceiling-Mount 360° PIR Detector – Up to 12m Distance Coverage – To Work with AX Pro Alarm Hub

Features :-

  • Detection Range: 12m / 360°
  • SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

Detection Performance

  • Detection Method: Passive Infrared
  • Detection Range: 12m
  • Detection Angle: 360°
  • Detection Zones: 172
  • Detectable Speed: 0.3~2m/s
  • Sensitivity: Auto; Low
  • White Light Filter: 6500lux
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • Power Switch: Power Up Enrolling
  • LED Indicator: Blue(Alarm)

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 1Km
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Standard Battery Life: 5 years in work status (being triggered 20 times per day)
  • Power Supply: Battery Powered
  • Battery Type: CR123A × 1
  • Typical Voltage: 3V

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (W x H x D): φ101.2 mm x 32.9 mm
  • Weight: 109.5g
  • Mounting Height: 2.4 to 4m
  • Mounting Method: Ceiling
  • Application Scenario: Indoor
