Hikvision DS-PHA64-LP/NP

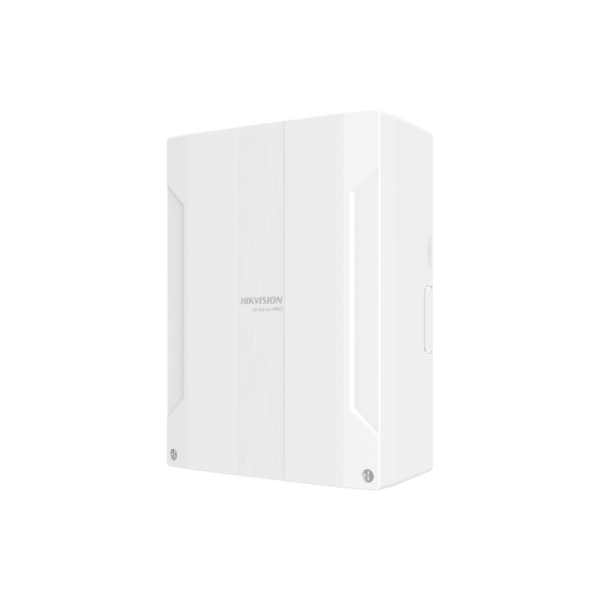

Hikvision DS-PHA64-LP/NP AX Hybrid Pro Network IP Intrusion Alarm System – 8 On-board Zones (Expandable Up To 64 Zones) – Built-in IP module (LAN & WLAN) – Supports Video Verification
SKU: DS-PHA64-LP/NP
Categories: Intrusion & Alarms, Wired Alarm Control Panels, Wired Alarms
Tags: Alarm, AX Hybrid Pro, Gate Automation, Gate Control, Hikvision, Home Automation, Network, Video Verification
Hikvision DS-PHA64-LP/NP AX Hybrid Pro Network IP Intrusion Alarm System – 8 On-board Zones (Expandable Up To 64 Zones) – Built-in IP module (LAN & WLAN) – Supports Video Verification
Key Features :-
- Built-in IP module – Built-in LAN & WLAN – No need to purchase any IP module separately
- 8 On-Board Zones – Expandable to 64 Zones* (Use DS-PM1-I8O2-H 8-zone wired expander OR DS-PM1-RT-HWB Tri-X Wireless Receiver)
- Supports video verification – Up to 4 channels from CCTV – supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports gate automation and garage door control using wireless relay/s* (Use DS-PM1-O1L-WB / DS-PM1-O1H-WB with DS-PM1-RT-HWB wireless Tri-X receiver)

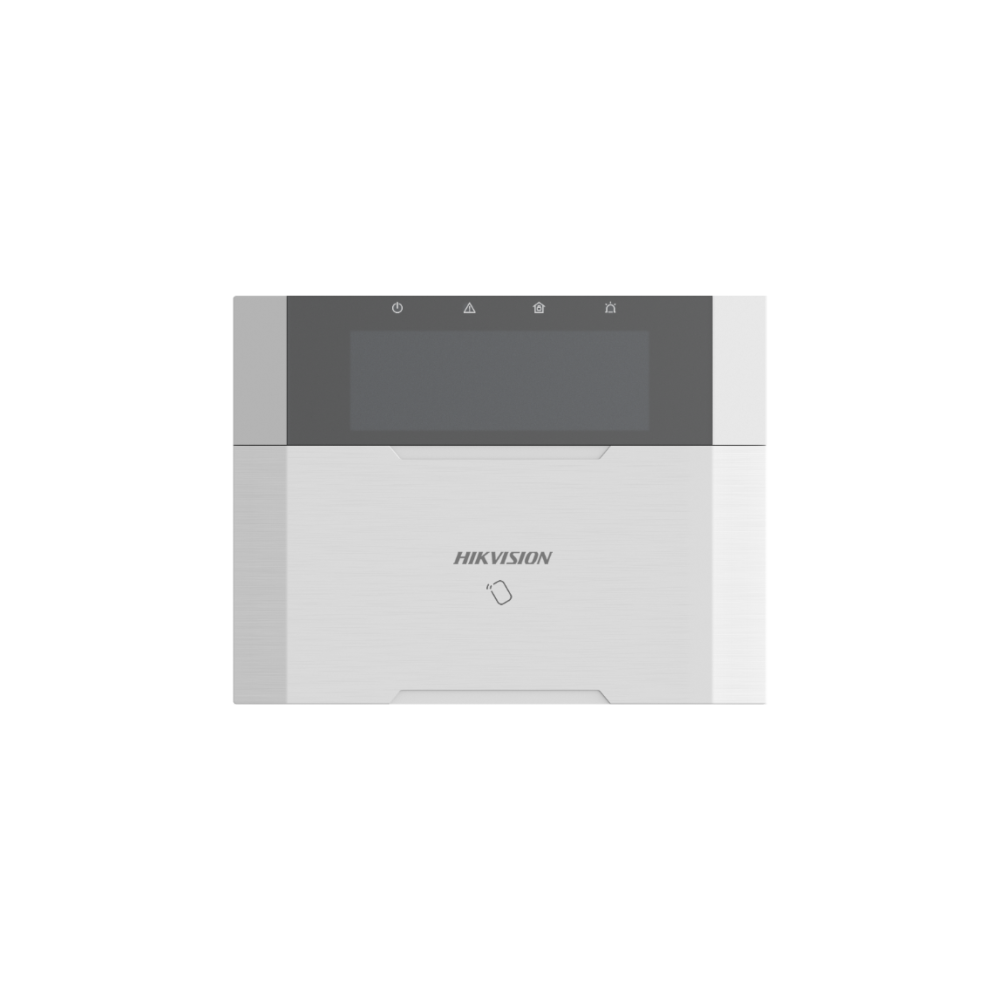

- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Supports web-management, programming & control
- Free app control and monitoring – Hik-connect
- Pushes alarm notification via messages and Hik-Connect
- Alarm monitoring supported in NZ* (ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol)
- Supports 1 Speed-X BUS
Software features
- Zones: 64（8 On-board zones, max 8 wired PIRCAM）
- Area: 32
- User: Installer: 1; Administrator: 1; Operator: 62
- SMS notification: Support (with GPRS / 3G / 4G module)
- Onboard video clips: 4
- ARC protocol:
-
- ISAPI: Supports iVMS-4200 client software and web client
- Cloud P2P: Supports cloud P2P privacy protocol
- DC-09: ARC accessible (ADM-CID/SIA-DCS)
- CSV-IP: Supports CSV-IP; ISUP: Supports ISUP 5.0
-
- Programming tools: Web / iVMS-4200 / Hik-ProConnect / Keypad
- Firmware upgrade: Web / iVMS-4200 / Hik-ProConnect / Hik-ProConnect
- End of Line Resistance: Support 2.2K, 5.6K, 8.2K
Hardware features
- Alarm input: 64 (Including 8 on-board zones）
- Alarm output: 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs）
- Power Output: 12V 1.5A

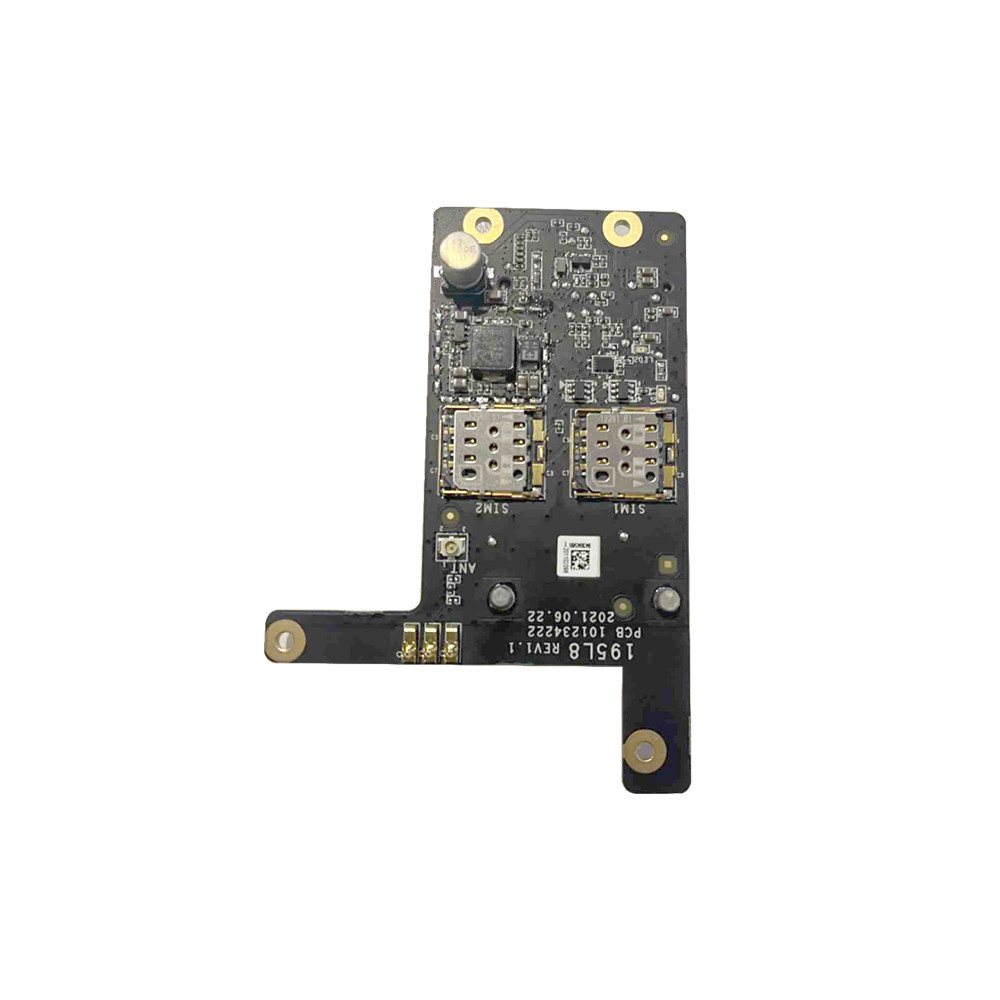

- 3/4G on board: Optional
- GPRS on board: Optional
- Wi-Fi: 802.11b/g/n (2.4GHz)
- Bus: 1 Speed-X bus
- Sounder output: 1 Wired on-board sounder output
- Tamper-Proof: 1 switch to detect removal from mounting; 1 switch to detect front cover open
- Network interface: 1 RJ45 10M/100M Ethernet interface
Electrical characteristics
- Power interface: 100 to 240 VAC (on-board power transformer）
- Power Consumption:
-
- 1. 220V power supply: ① With an alarm: 2A, 32W; ② Without an alarm: 250mA, 4W
- 2. 13.5V battery supply: ① With an alarm: 1.7A, 25W; ② Without an alarm: 200mA, 2.7W
-
- Battery type: Lead acid battery（12V 7Ah, battery is not included by default）
- Storage temperature: -10°C to 40°C
- Battery life span: Up to 36hrs
Display
- Indicator:
- 4 On-board LEDs
- 1. 1 AC power LED indicator (Green)
- 2. 1 System status LED indicator (Green/Red)
- 3. 1 PSTN status LED indicator (Green/Red)
- 4. 1 Mobile communication status LED indicator (Green/Red）
- 4 On-board LEDs
General
- Operation temperature: -10℃ to 40℃
- Operation humidity: 10% to 90%
- Shell material: Plastic
- Color: White
- Dimension (W x H x D): 261 mm × 199 mm × 86.4 mm
- Weight: 997 g
Device management
- Tag: 64
- Keyfob: 64
- Keypad: 8
- Wireless sounder: 16
