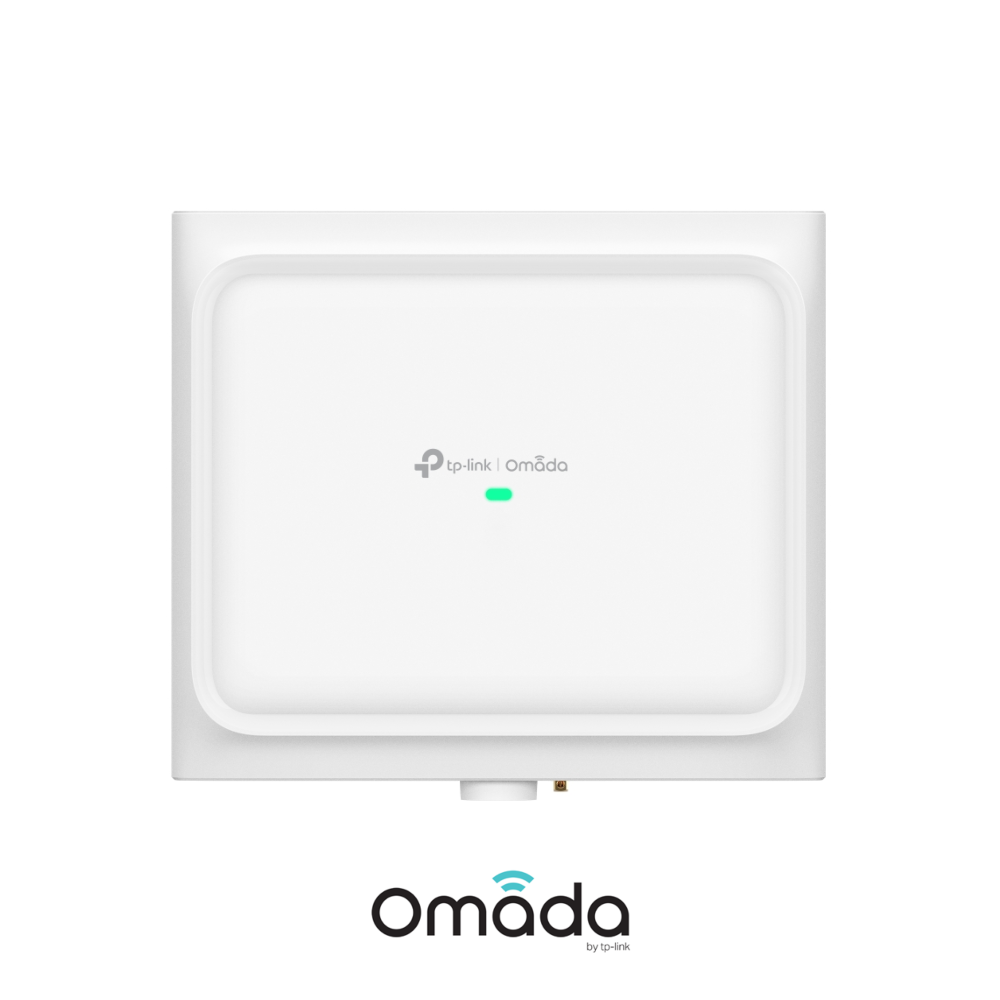

TP-Link Omada EAP772-Outdoor
TP-Link Omada EAP772-Outdoor Tri-Band (6GHz + 5GHz + 2.4GHz) Omnidirectional BE9300 Indoor / Outdoor WiFi 7 Wireless Access Point – Up To 9.3Gbps – Supports Omada EAP Mesh & Fast Roaming
TP-Link Omada EAP772-Outdoor Tri-Band (6GHz + 5GHz + 2.4GHz) Omnidirectional BE9300 Indoor / Outdoor WiFi 7 Wireless Access Point – Up To 9.3Gbps – Supports Omada EAP Mesh & Fast Roaming
Key Features :-
- Tri-Band Six-Stream Outdoor Wi-Fi 7: Up to 9.3 Gbps
- 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses
- True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage
- Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Centralized management, mesh, and seamless roaming
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- Supports Fast Roaming: Enables wireless devices to switch between APs quickly and seamlessly also preventing connection drops during transitions ensuring a strong stanle signal.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|

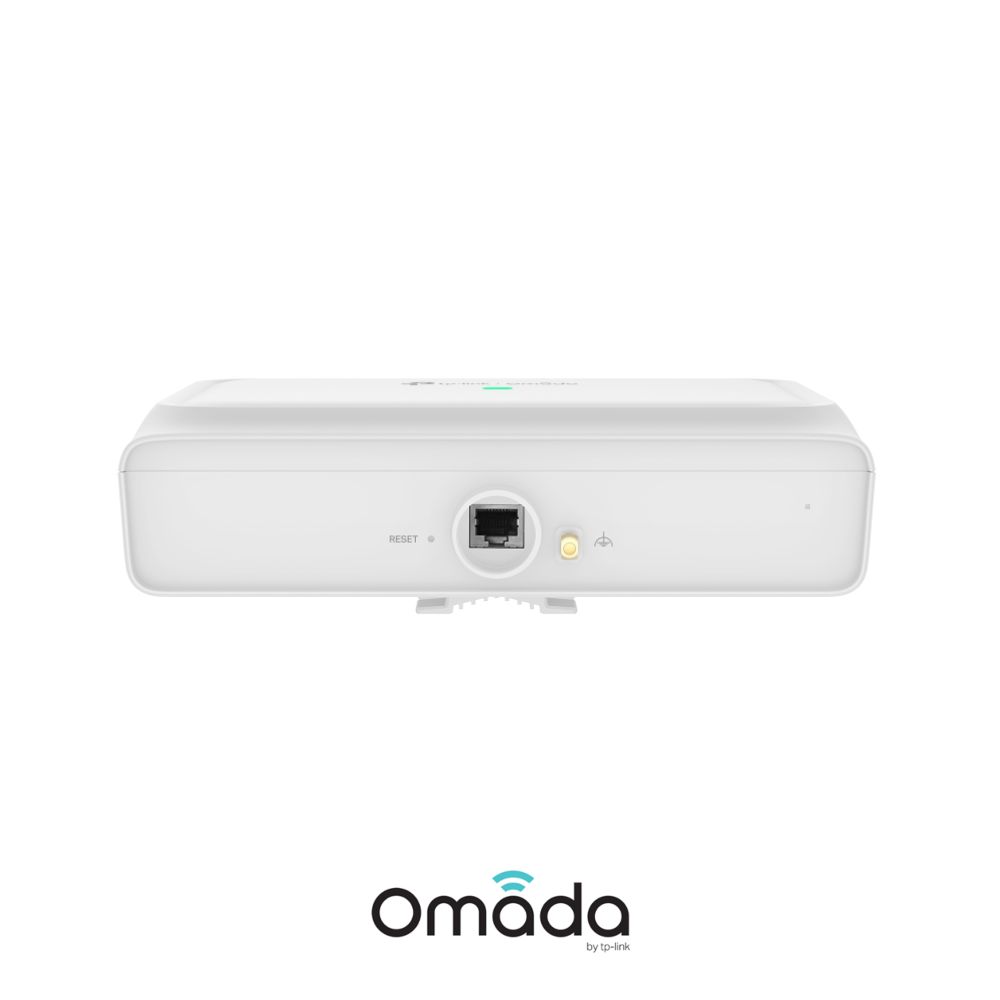

| Interface | 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| Max. Power Consumption | 21.5W (for PoE) |
| Dimensions ( W x D x H ) | 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
| Antenna | • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi |
| GNSS | L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP68 |

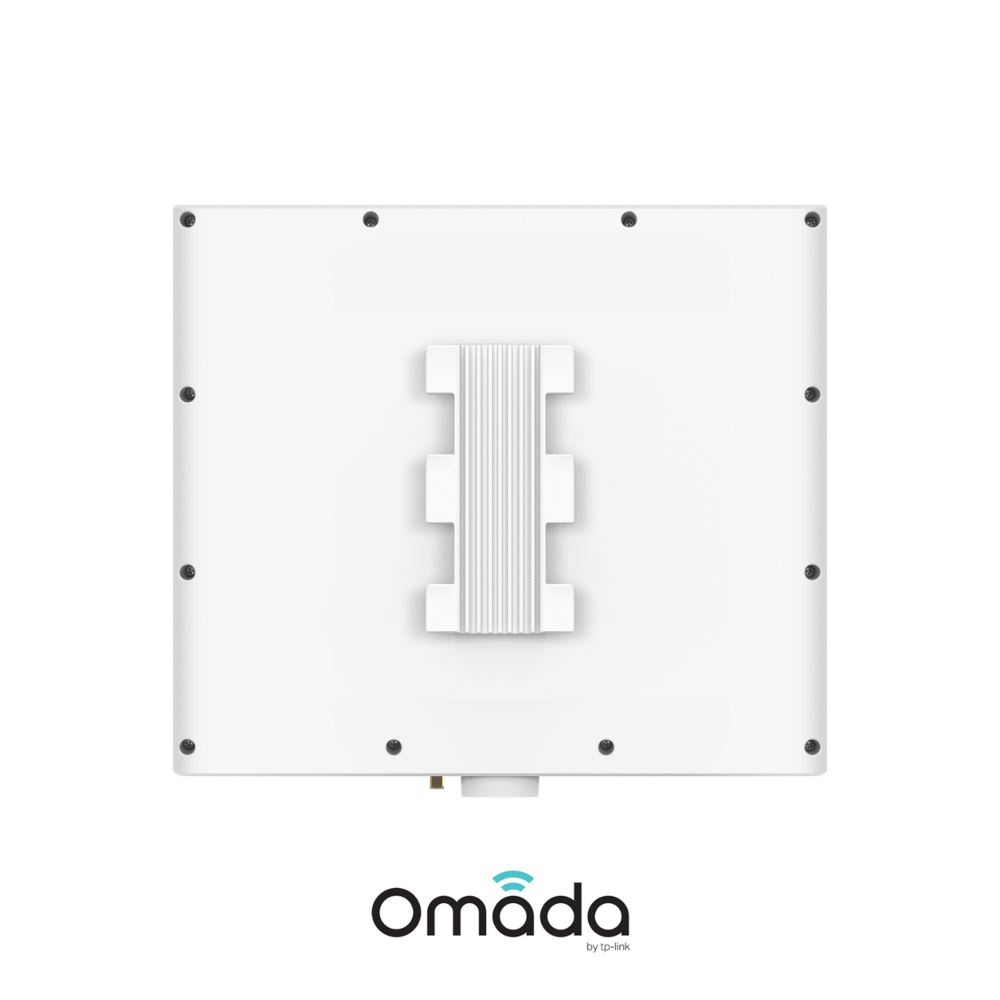

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 300m2 (3,200ft2) Recommended Omnidirectional Coverage |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11be/ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 4k-QAM • OFDMA • Multiple SSIDs: 24 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • CE: Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP) • FCC: Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP772-Outdoor • Waterproof Kit • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△ Learn more details about AFC technology and regions that support AFC, please visit: https://www.omadanetworks.com/support/faq/4373/
‡ Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
§ Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.
* Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
** The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
