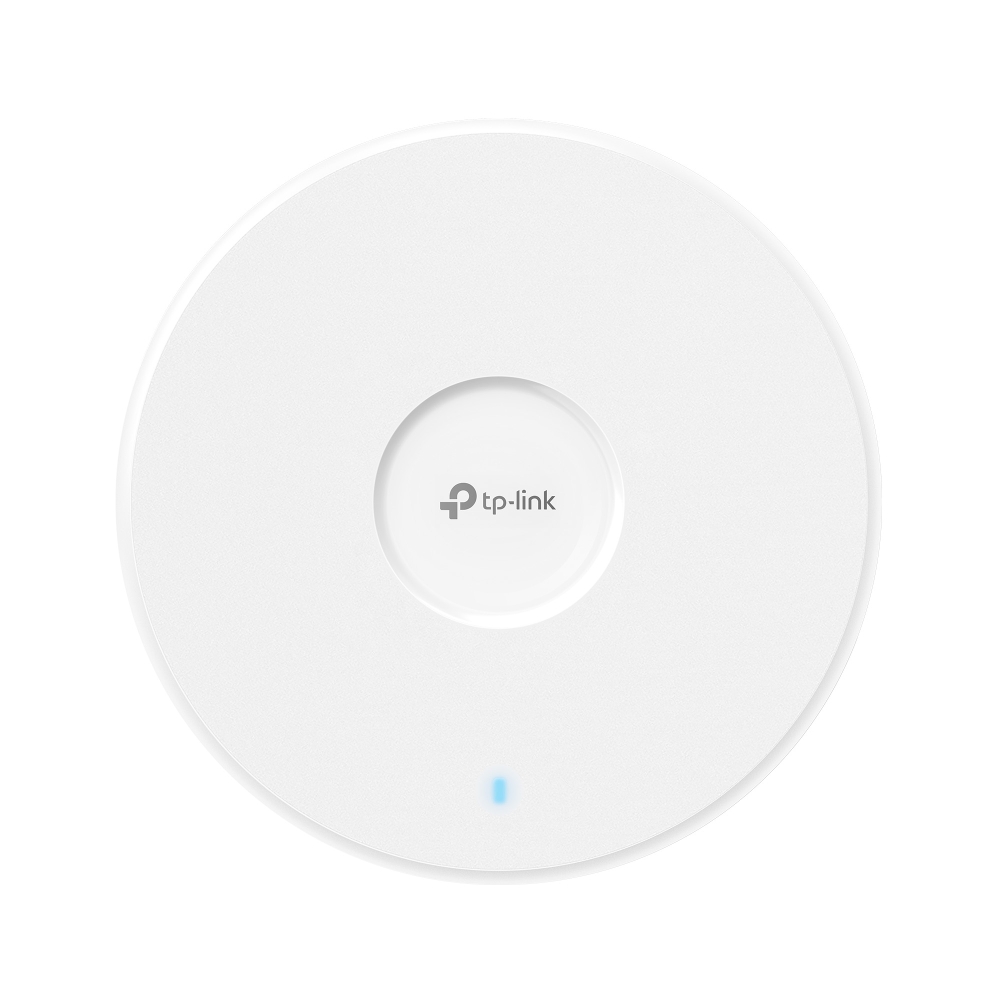

TP-Link Omada EAP783
TP-Link Omada EAP783 Tri-Band (6GHz + 5GHz + 2.4GHz) BE19000 Indoor WiFi 7 Wireless Access Point – Up To 19Gbps – Ceiling-Mount – 2 * 10Gbps PoE LAN Ports
SKU: EAP783
Categories: Indoor WAP, Mesh WiFi, Networking Products, Wireless Access Points
Tags: 10Gbps, 2.4GHz Wireless, 5GHz Wireless, 6GHz, IP, Multi-Gigabit, Network, Omada, Omada SDN, Omada WiFi 7, Outdoor, PoE, TP-Link, Weatherproof, WiFi, WiFi 6, WiFi 6E, WiFi 7, Wireless, Wireless Access Point
TP-Link Omada EAP783 Tri-Band (6GHz + 5GHz + 2.4GHz) BE19000 Indoor WiFi 7 Wireless Access Point – Up To 19Gbps – Ceiling-Mount – 2 * 10Gbps PoE LAN Ports
Key Features :-
- BE19000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz). †
- A clear 6 GHz band brings cleaner and wider band resources.‡
- 2× 10GbE ports unlock the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, mesh, and Seamless roaming.△
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 2× 10G Ethernet Ports (20G Aggregation Speed†) |
| Button | Reset |
| Power Supply | • 802.3bt PoE++ • 12V DCNote：Power adapter is not included. |
| Max. Power Consumption | 39W |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi |
| Bluetooth | Yes |

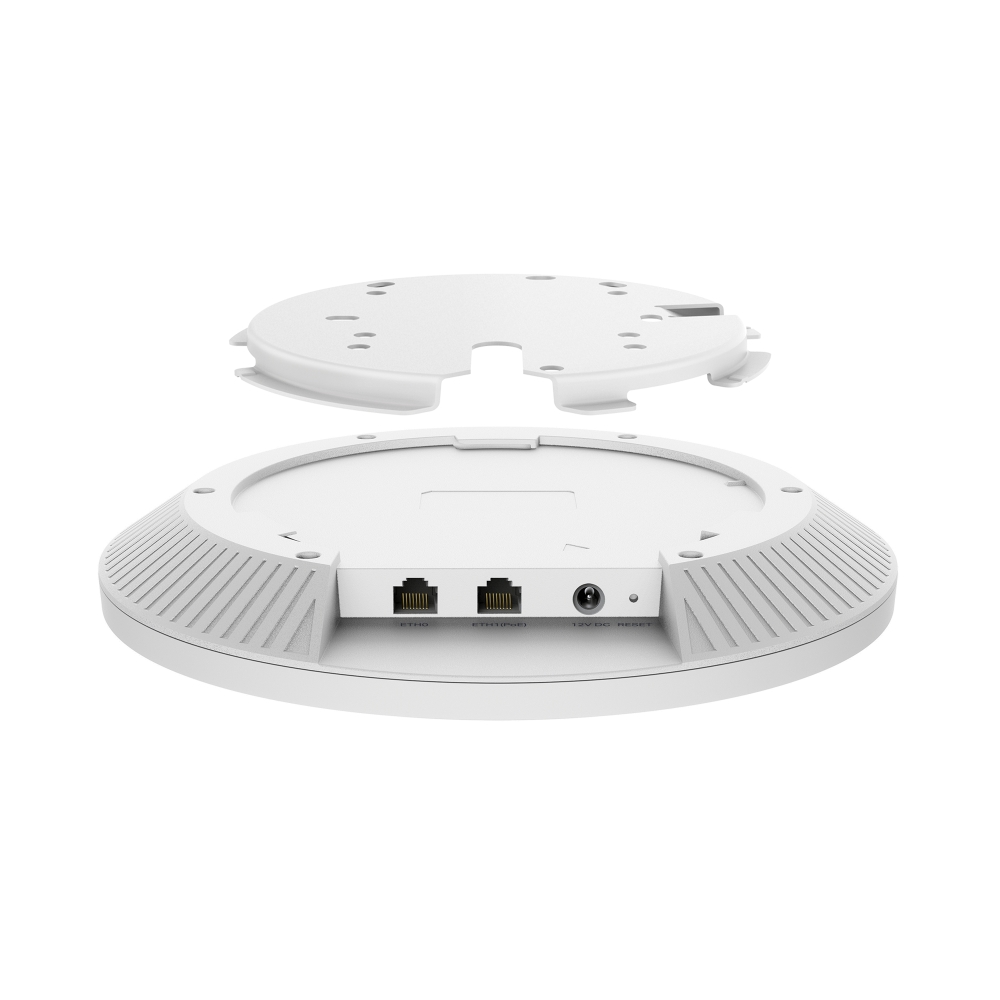

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 200㎡ (2150 ft²) § |
| Concurrent Clients | 760+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 5760 Mbps • 2.4 GHz: Up to 1376 Mbps |
| Wireless Functions | • MLO • 4K-QAM • 4×4 MU-MIMO DL/UL • HE320 (320 MHz Bandwidth)‡ • Mesh§ • AI Roaming△ • Automatic Channel Selection and Power Adjustment* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz band 1&band 2, EIRP) <30 dBm (5 GHz band 3, EIRP) <23 dBm (6 GHz EIRP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| GENERAL | |
|---|---|
| Weight | Net Weight:1384.6g |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP783 • Installation Guide • Ceiling/Wall Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
