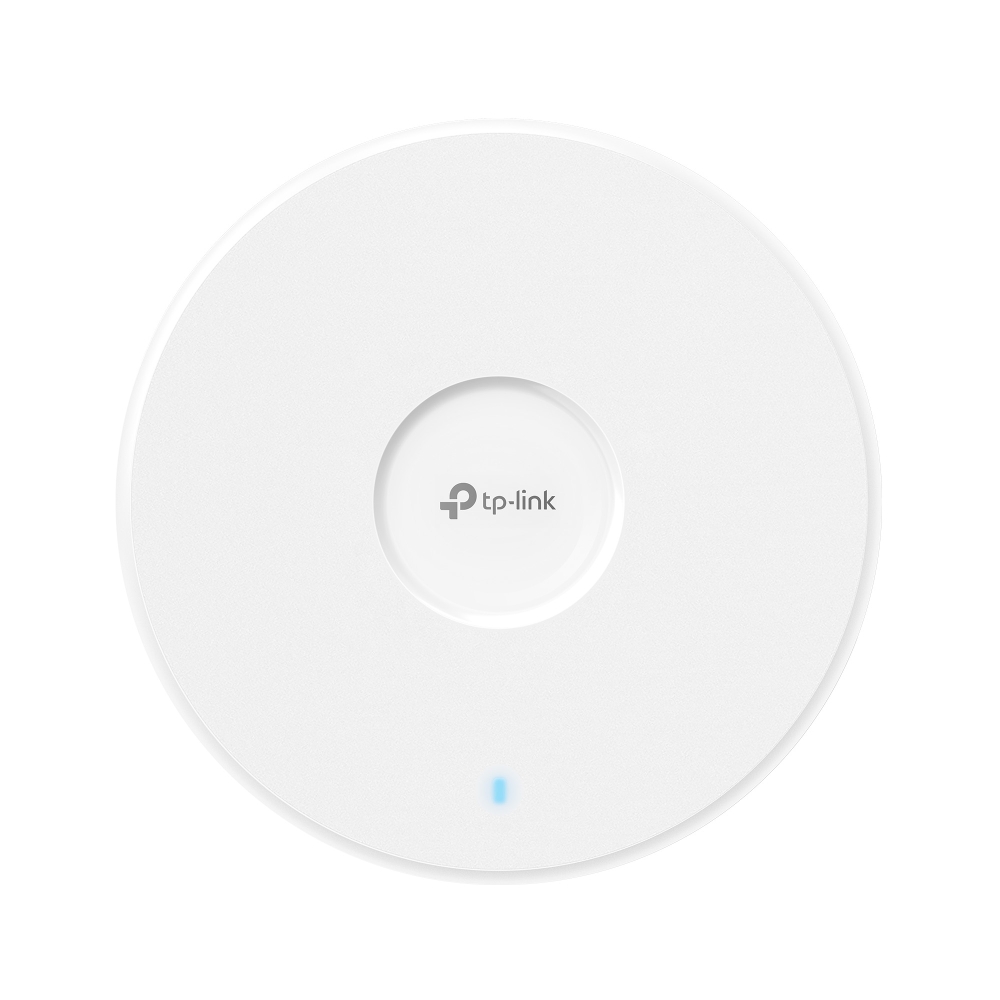

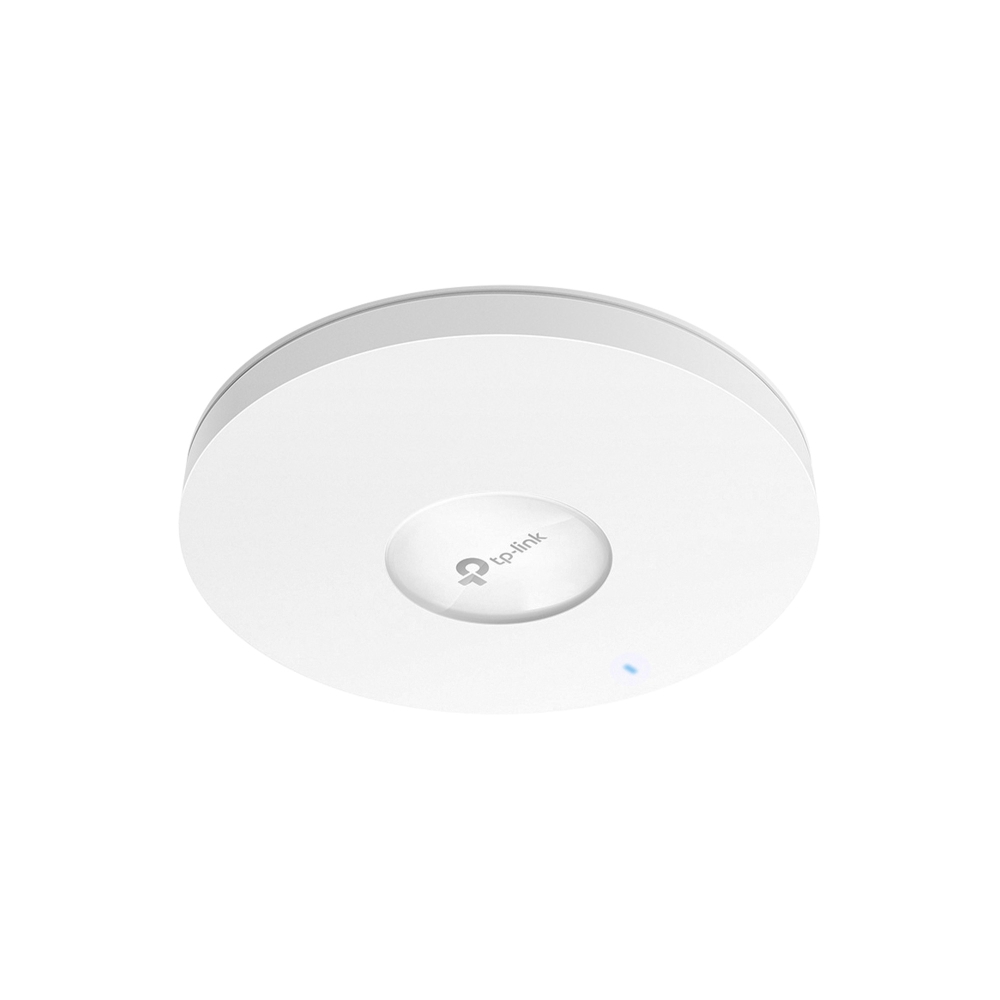

TP-Link Omada EAP787

TP-Link Omada EAP787 Tri-Band (6GHz + 5GHz + 2.4GHz) BE12000 Indoor WiFi 7 Wireless Access Point – Up To 12Gbps – Ceiling-Mount – 10Gbps PoE LAN Port

TP-Link Omada EAP787 Tri-Band (6GHz + 5GHz + 2.4GHz) BE12000 Indoor WiFi 7 Wireless Access Point – Up To 12Gbps – Ceiling-Mount – 10Gbps PoE LAN Port

Key Features :-

  • Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
  • Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
  • 1× 10G Port: Ensures fast connectivity throughout the network
  • Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
  • Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
  • Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
  • More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.
  • 5 years limited b2b warranty

TP-Link Product-Link









HARDWARE FEATURES
Interface 1× 10G/2.5G Ethernet Port
Button Reset
Power Supply 802.3bt/at PoE or 12V/2.5A DC
Max. Power Consumption • 26.3 W (For PoE);
• 22.4 W (For DC)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 4× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 5 dBi (peak gain), Internal antenna module
*Firmware update may be required.

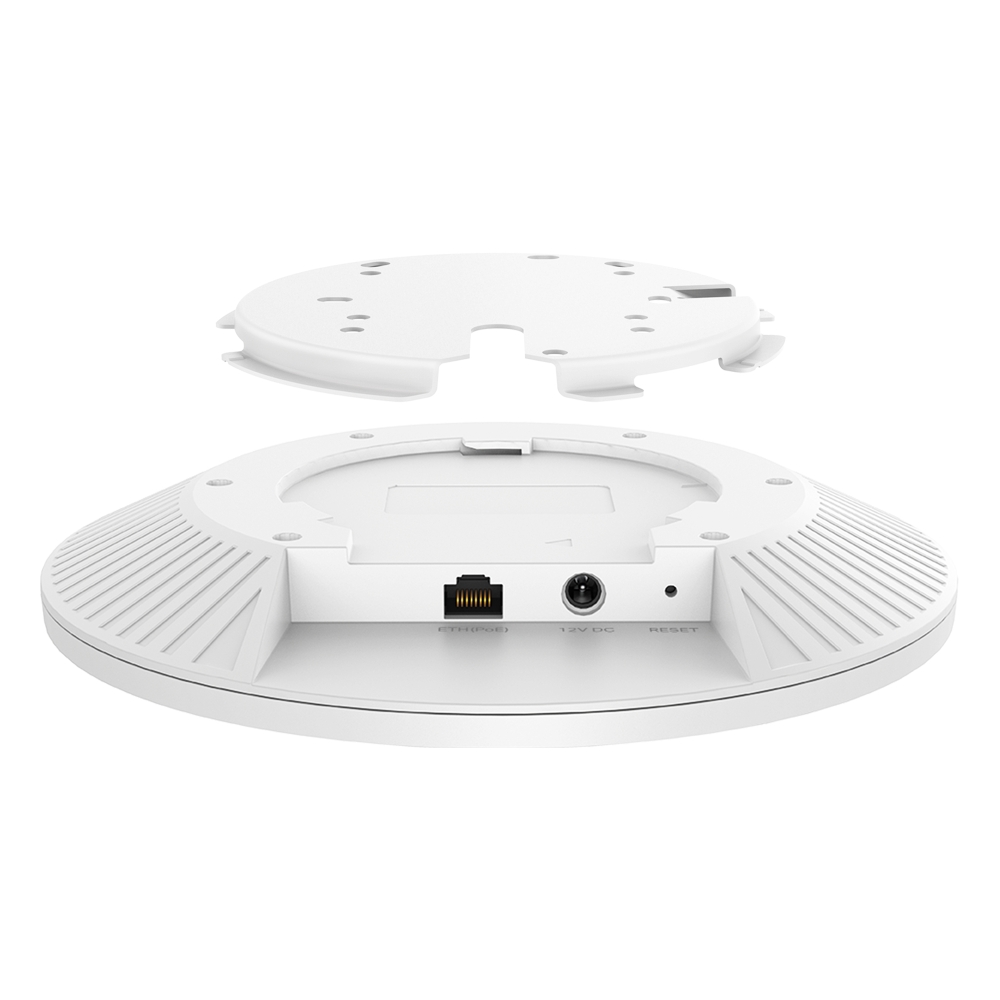

Mounting Ceiling / Wall/ Junction Box Mounting (Kits Included)
WIRELESS FEATURES
Coverage 2050 ft² (190 m²)*
Concurrent Clients 510+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions • 320 MHz Bandwidth
• MLO
• 4K-QAM
• Multi-RUs
• Seamless Roaming(802.11k/v/r)
• MU-MIMO
• Mesh
• BSS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication
• Access Control
• Mac Filter
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power 6-20 dBm (2.4 GHz, EIRP)
9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)
9-30 dBm (5 GHz, U-NII-2C, EIRP)
6-23 dBm (6 GHz, EIRP)
Management Features
Omada App Yes
Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Content • EAP787
• Installation Guide
• Ceiling/Wall/Junction Box Mounting Kit
Note: Power Adapter is NOT included.
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
