TP-Link Omada TL-EAP100-BRIDGEKIT
TP-Link Omada TL-EAP100-BRIDGEKIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 500m Range – Supports 12VDC Input and 48VDC/24VDC PoE Input – 2* Passive PoE Injectors Included
SKU: TL-EAP100-BRIDGEKIT
Categories: Networking Products, Wireless Access Points, Wireless Bridge
Tags: 2.4GHz Wireless, IP, IP65 Rated, Kit, Network, Omada, Outdoor, PoE, TP-Link, WAP, Weatherproof, Wireless, Wireless Access Point, Wireless Bridge
TP-Link Omada TL-EAP100-BRIDGEKIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 500m Range – Supports 12VDC Input and 48VDC/24VDC PoE Input – 2* Passive PoE Injectors Included
Key Features :-
- Up to 1640 ft (500 m)Wi-Fi transmission *
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
- Flexible Power Supply: 802.3af PoE (1,2pins; 3,6pins), 24V /48V Passive PoE (+4,5pins; -7,8pins), and 12V DC (compatible with TP-Link solar power supply systems).

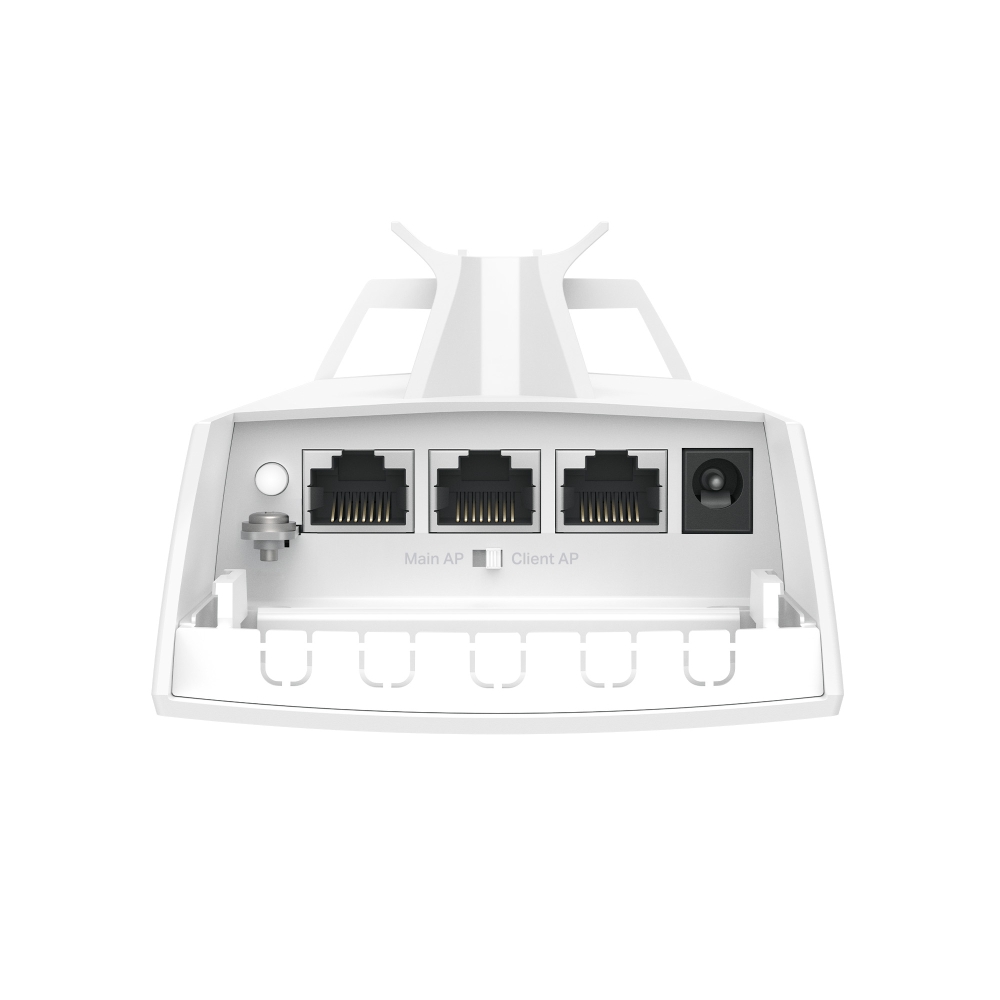

- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch. △
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉. **
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app. §
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x 10/100 Mbps Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC 802.3af PoE (1, 2pins; 3, 6pins) 24V Passive PoE / 48V Passive PoE (+4, 5pins; -7, 8pins) (12V DC Power Adapter and Passive PoE Injector Included – For Dry Indoor Use Only) |
| Max. Power Consumption | 4.8 W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 2.4 GHz: 8.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |

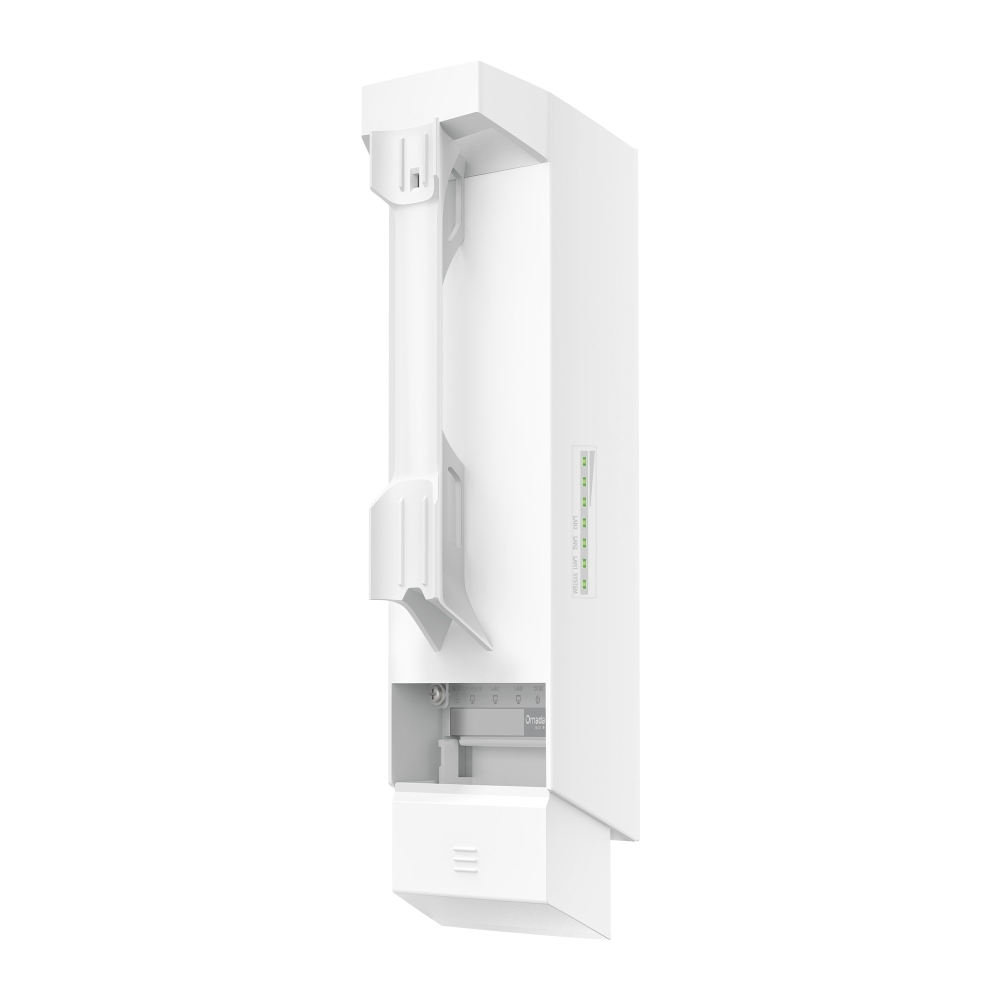

| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 500 m (0.31 mi)* |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | • MIMO: 2.4G 2 × 2 MIMO • Mesh • Beamforming • Channel: 1-11 (US); 1-13 (EU) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <20dBm (2.4 GHz, EIRP);• FCC: <22dBm (2.4 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP100-Bridge KIT • Installation Guide • Pole Mounting Kit • 12V DC Power Adapter • Passive PoE Injector |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
