4Cabling 005.002.0157

4Cabling 005.002.0157 High-Performance CAT6A 23AWG Shielded RJ45 Crimp Plug – Jar of 50 Pieces – 2-Piece Passthrough Plug – Compatible with 22AWG-26AWG Solid and Stranded Wire

FEATURES

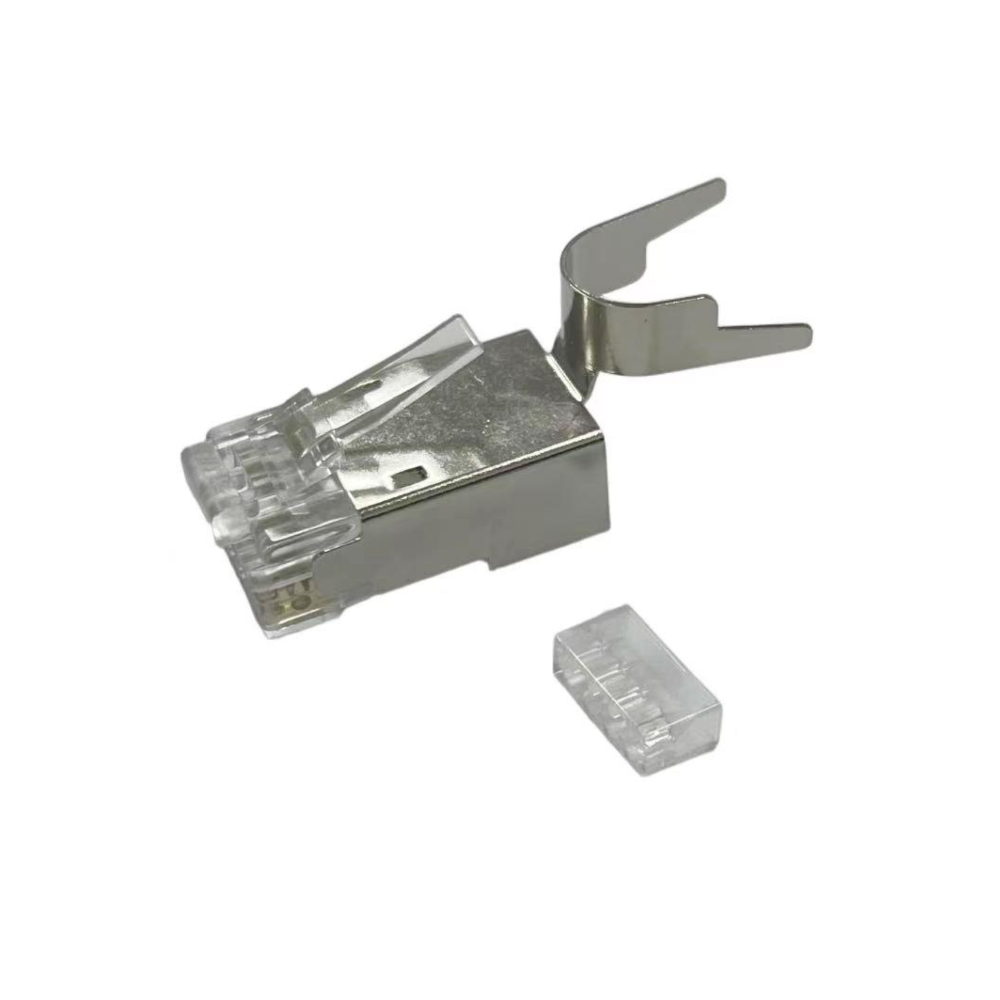

• High-performance shielded RJ45 plugs for Cat 6A applications

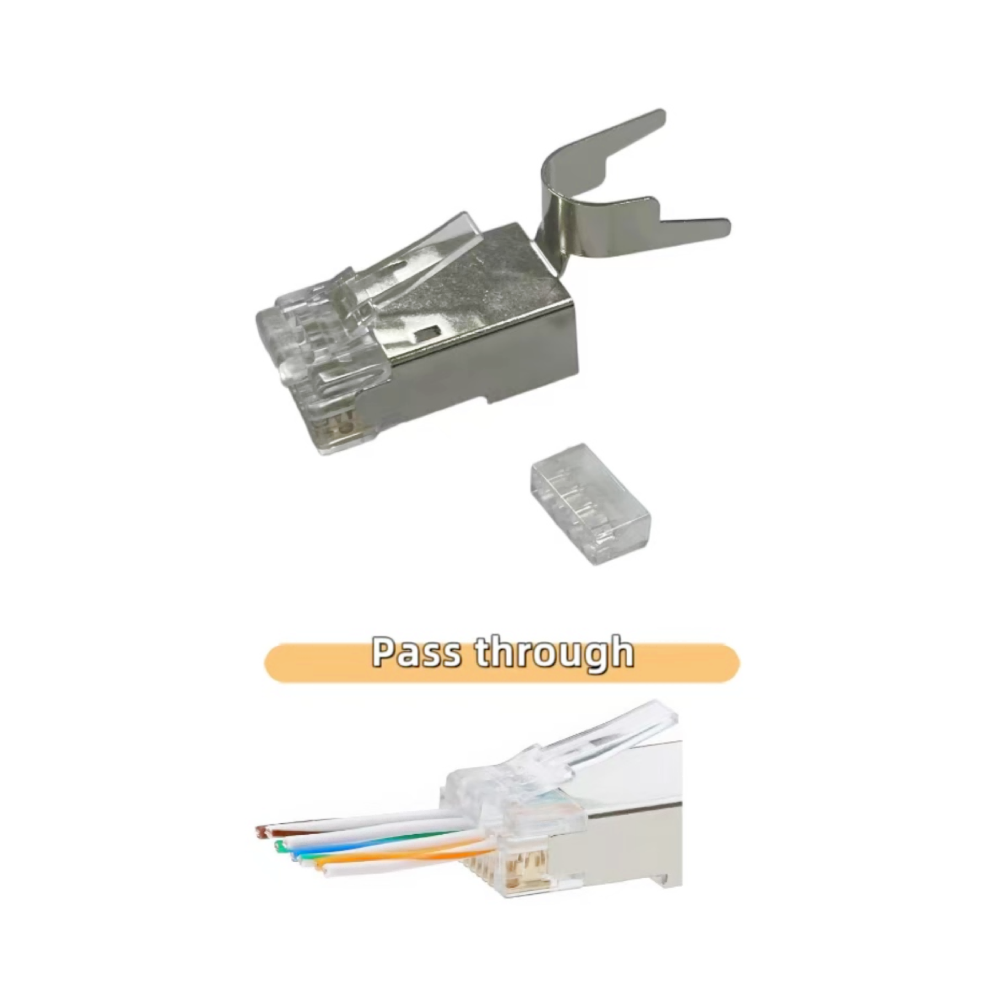

• Pass-through design simplifies wire alignment and ensures correct termination
• Fully shielded copper nickel alloy housing protects against EMI/RFI
• Compatible with 22AWG-26AWG solid and stranded wire
• Supports large insulated conductor diameters from 1.35mm to 1.45mm
• Durable Polycarbonate transparent housing (UL94V-0/V-2 rated)
• High-reliability copper alloy contacts with gold plating
• Rated for 1200 mating cycles for long-term durability

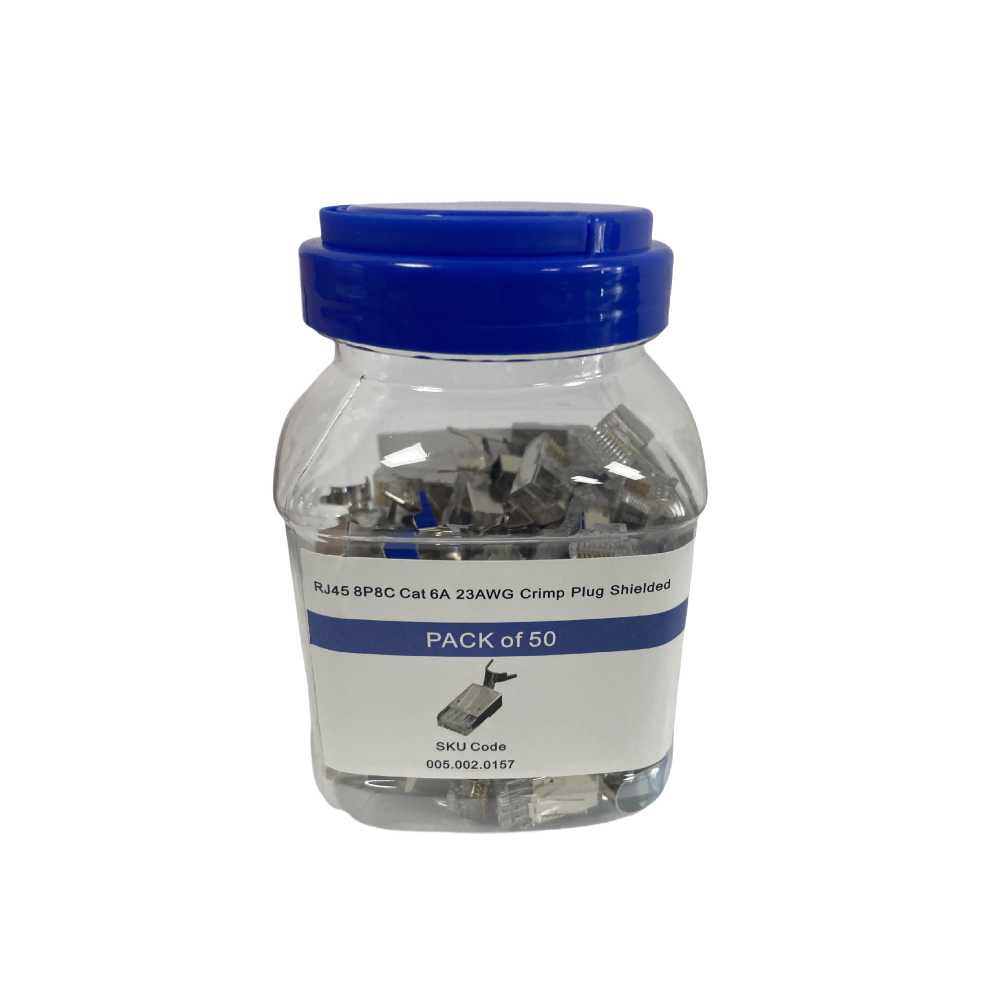

• Pack of 50 for multiple projects or installations
• Specifically designed for use with Tool 001.006.0530

SPECIFICATIONS

• Connector Type: RJ45 8P8C Modular Plug
• Performance: Cat 6A
• Shielding: Shielded (Copper Nickel Alloy Shell)
• Compatible Wire Gauge: 22AWG-26AWG
• Wire Type: Solid & Stranded
• Max. Insulated Conductor OD: 1.35mm-1.45mm
• Housing Material: Polycarbonate (UL94V-0/UL94V-2)
• Contact Material: Copper Alloy
• Electrical Rating: 250VAC MAX. at 2A
• Dielectric Withstanding Voltage: 1000VAC (60sec)
• Insulation Resistance: 500MΩ
• Contact Resistance: 20mΩ MAX
• Durability: 1200 mating cycles
• Strain Relief: 20 pound min.
• Operating Temperature: -40°C to 70°C
• Pack Size: 50 Plugs
