Akubela CT2545

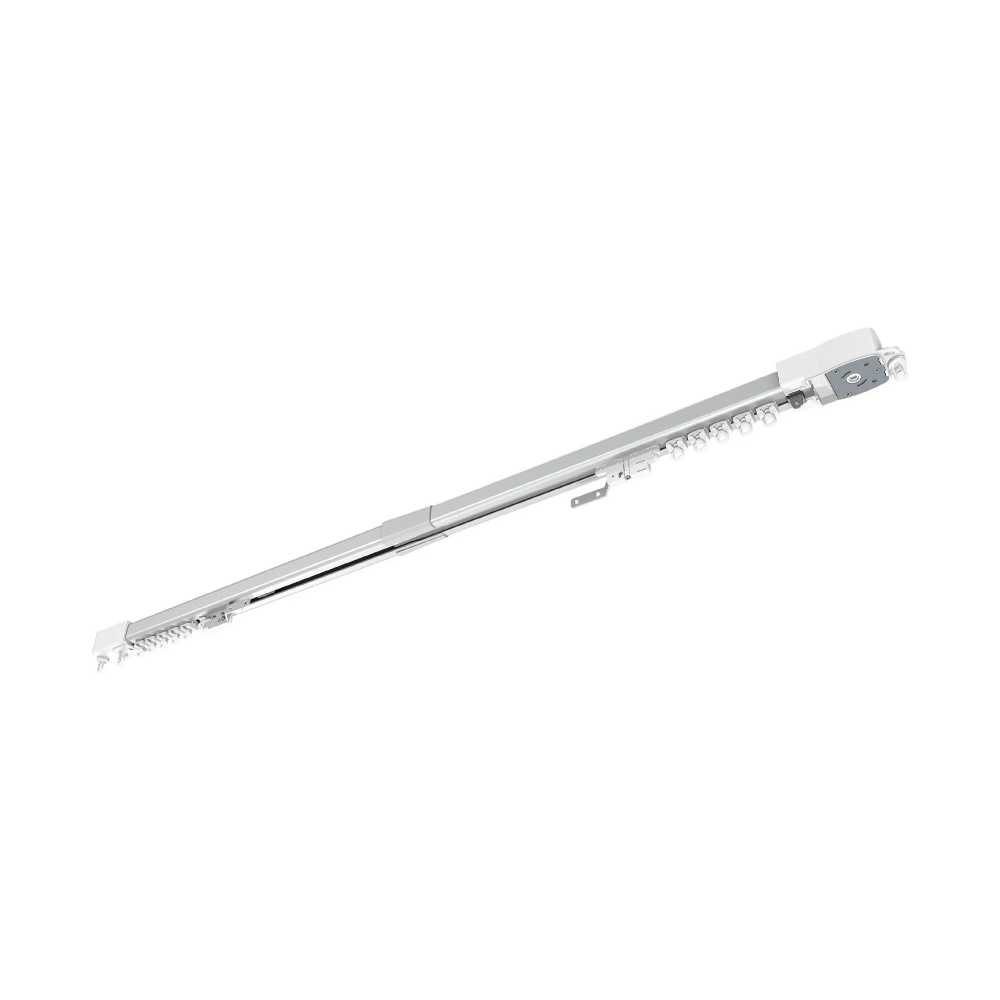

Akubela CT2545 Smart Home Curtain TrackĀ (2.5-4.5M) – Adjustable Length Within a Range of 2.5 to 4.5 Meters
Akubela CT2545 Smart Home Curtain TrackĀ (2.5-4.5M) – Adjustable Length Within a Range of 2.5 to 4.5 Meters
This curtain track series features a flexible telescopic design, which can precisely adapt todifferenthousehold window widths. It can easily cover everything from narrow windows to wide viewwindowswithout additional customization, allowing for more flexible installation and layout.Withprecisiontransmission and a stable structure, the curtains open and close smoothly. Combined with a universal
installation solution and a complete set of standard accessories, it makes installation andusehighlyefficient and convenient, bringing a hassleā free and smooth curtain control experience for daily homeuse.
Key Features :-
- Multi-size telescopic design, suitable for all window widths
- Universal for top and side mounting, flexible installation
- Dual transmission and dual brackets, stable drive and firm structure
- Reversing transition assembly, smooth opening and closing without jamming
- Complete accessories, one-stop assembly
- Model Number: CT183 / CT234 / CT2545
- Adjustable extension range: 1.8ā3m / 2.3ā4m / 2.5ā4.5m
- External dimensions:
-
- Width (including mounting brackets): 67mm
- Height (including mounting brackets): 54mm
- Length (minimum state): 1720mm / 2220mm / 2470mm
-
- Rail wall thickness: 1mm
- Linear speed: 90mm per revolution
- Rated load: 20kg (10kg for single side)
- Applicable curtain type: double open-close curtain
- Belt specification: module 1.59, pitch Pd=5, width B=10mm, length L=2160mm
- Flat strap specification: thickness 1mm, width 10mm, length 6180mm
