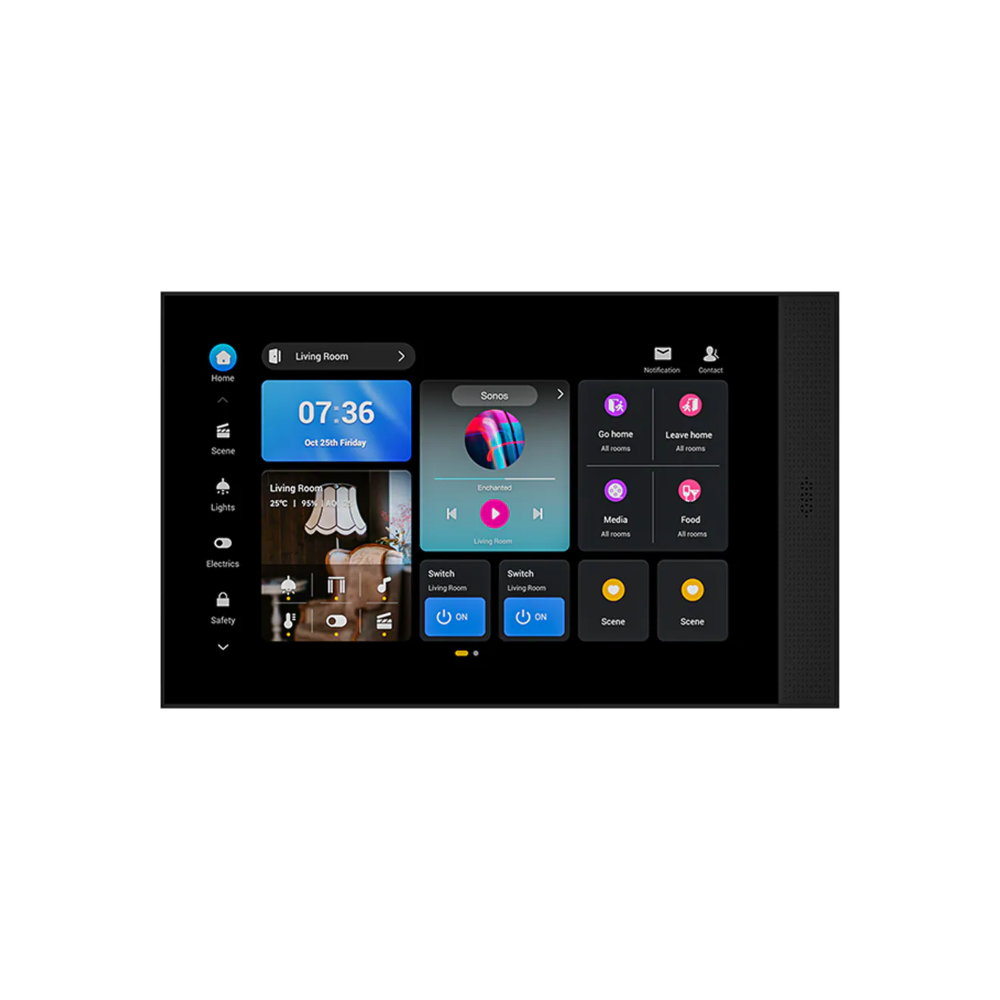

Akubela HyPanel Elite 10 PH59
Akubela HyPanel Elite 10 PH59 Android-Based Smart Home Control Panel – 802.3af PoE or 21~30VDC Powered – 10″ Touchscreen – ZigBee, Ethernet & WiFi – Supports RS485 with 8 * Digital Input Channels & 1 * Relay
SKU: PH59-PoE
Categories: Akubela HyPanels, Akubela Smart Home Automation, Smart Home Automation
Tags: 10 Inch, Akubela, Akuvox, Android, Bluetooth, Controller, Home Automation, IP, Network, PoE, Speaker, Touchscreen, Wall-Mount, WiFi, WiFi 6, Wireless, Zigbee
Akubela HyPanel Elite 10 PH59 Android-Based Smart Home Control Panel – 802.3af PoE or 21~30VDC Powered – 10″ Touchscreen – ZigBee, Ethernet & WiFi – Supports RS485 with 8 * Digital Input Channels & 1 * Relay
Key Features :-
- Excellent performance with Android 12 system
- 10-inch touch screen Andriod based Control Pannel
- Smart intercom, zigbee gateway, home automation ALL IN ONE.
- Two-way audio communication with other units in the network
- Support US or European electrical wall box mounting
- Support 8 digital input channels and 1 bell-in port
- Powered by IEEE802.3af PoE or 12-24VDC
- BelaHome Mobile Phone App Control for Google Play & iOS
- Model: PH59-PoE
- Power Supply: IEEE802.3af PoE & 12 – 24VDC
- Max. Power Consumption: 12W
- Operating System: Android 12
- RAM/ROM: 2GB/8GB
- WiFi6, IEEE 802.11a/b/g/n/ac/ax
- Bluetooth 5.4
- Ethernet Port: 1× RJ45, 10/100Mbps adaptive
- ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- RS485 Port
- Relay Output: 1 gang: 0 – 30VDC, rated current: 2A
- Bell In Port: 1 channel
- Digital Input: 8 channels
- Microphone: Dual microphones, -26dB
- Speaker: Single speaker, 4Ω/2W
- IR Control Coverage: Horizontal 90°, vertical 90°, 6m
- Unit Dimensions: (LxWxH): 269 x 166 x 22.8 mm
