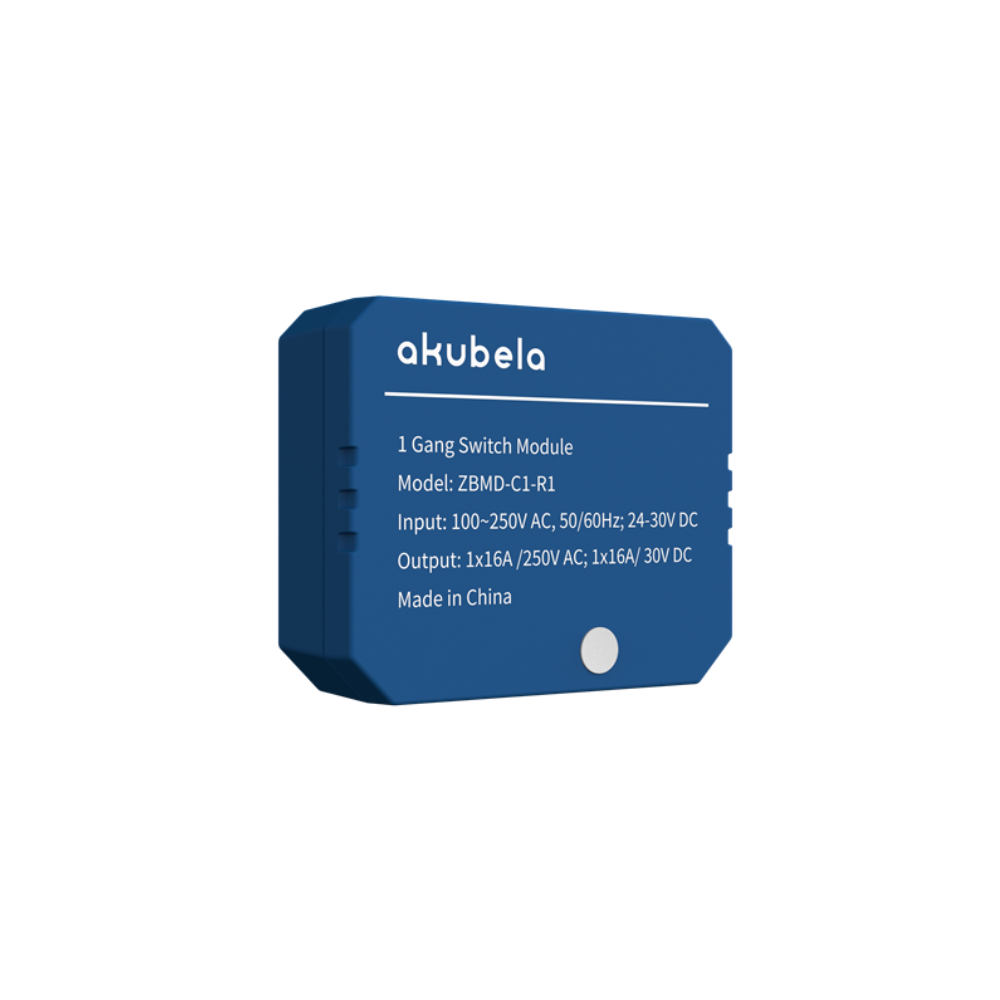

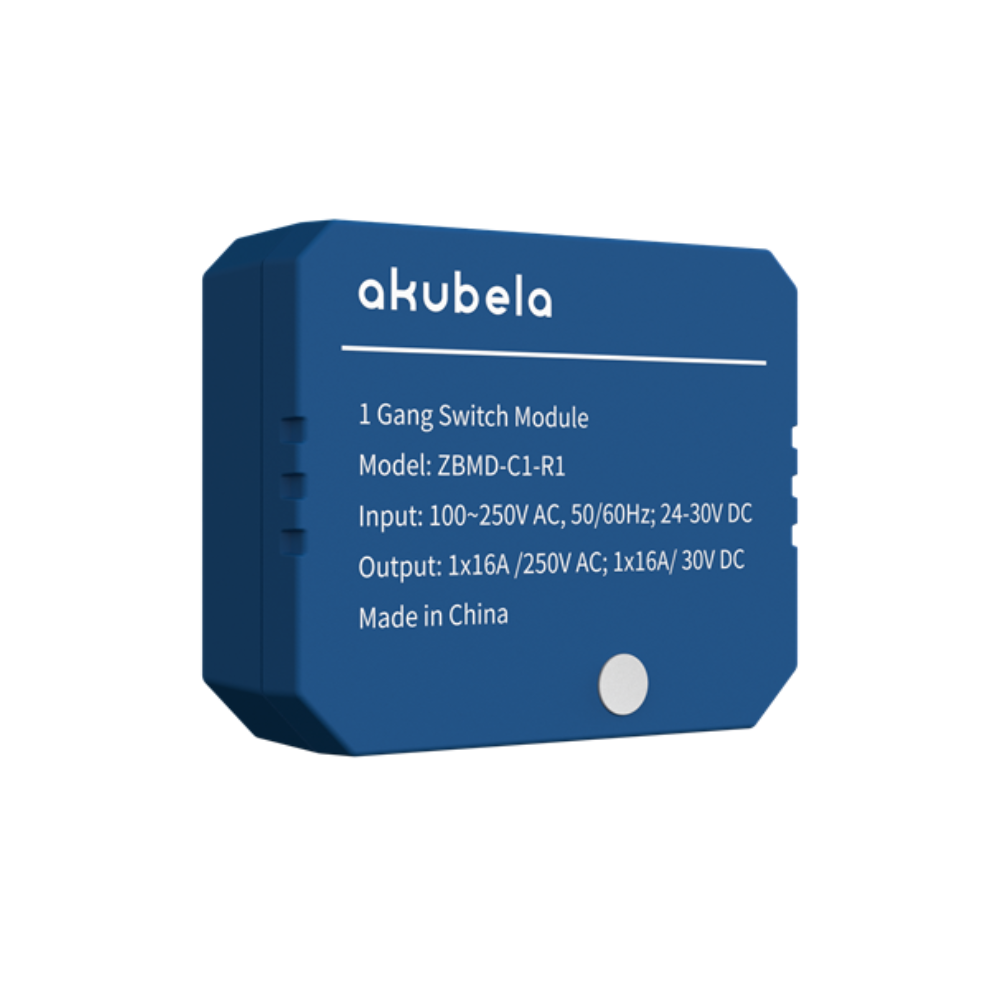

Akubela ZBMD-C1-R1 Switch Module

Akubela ZBMD-C1-R1 1 Gang Switch Module – ZigBee – 230VAC Powered – Supports BelaHome App & HyPanel Control

Akubela ZBMD-C1-R1 1 Gang Switch Module – ZigBee – 230VAC Powered – Supports BelaHome App & HyPanel Control

Key Features :-

  • Standard ZigBee protocol for broad device compatibility
  • Wide voltage range
  • Small size suitable for various installation boxes
  • Supports control of various types of switches
  • Remote control via app or panels
  • Power-off memory and real-time control
  • 16A max power capacity,suitable for boiler control





  • Manufacturer: Akubela
  • Model: ZBMD-C1-R1
  • Input Voltage: 100 ~ 250VAC, 50/60Hz; 24VDC~30VDC
  • Communication Method: ZigBee 3.0
  • Load Limits:Resistive: 1 * 16A @ 250VAC; 1 * 16A @ 30VDC; Capacitive/Inductive: 400W
  • Color: Blue
  • Product Dimensions: 50*41*15.7mm
  • Certification: CE
  • Working Temperature: -10 ~ 40°C
  • Working Humidity: 10 ~ 90%RH (no condensation)

Connection Method

1. Connect the device according to the wiring diagram and power it on. The blue indicator will flash slowly (once per second)
2. Press and hold the reset button for about 5 seconds until the blue indicator flashes rapidly indicating that the device is in pairing mode
3. Add the device to the network through the gateway. Once connected, the blue indicator will stay on.
