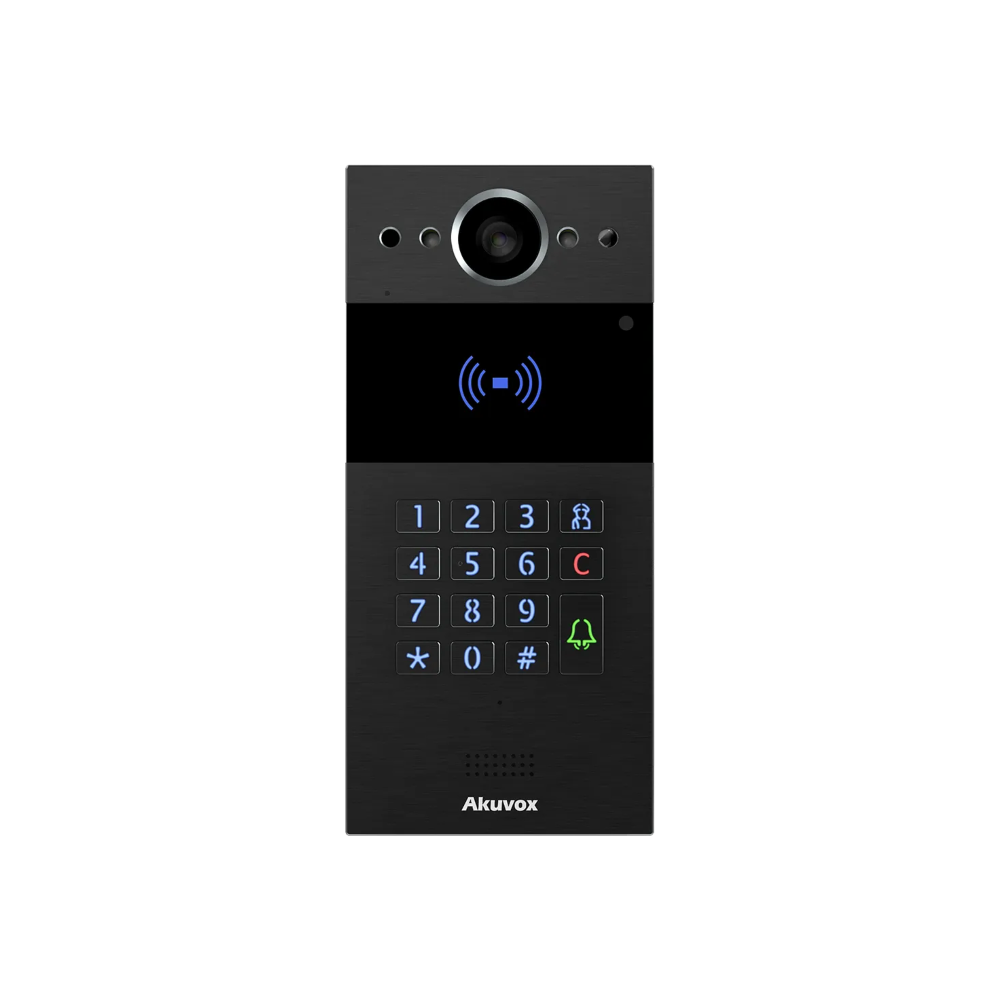

Akuvox R25K PoE IP IR H264 Outdoor Video Intercom Unit with Integrated Keypad – 4MP 150° Wide-Angle Camera – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare & EM Card-Reader – NFC – Dual Relay Output – Supports RS485 & Wiegand – Two-Lock Control

Key Features :-

  • 4MP Video Camera with 150° horizontal wide angle view
  • Integrated keypad
  • IP65 rated weatherproof
  • Two way audio communication over IP with echo cancellation and noise suppression features
  • Complies with SIP & ONVIFLinux operating system
  • Body material: aluminum
  • Built-in motion sensor
  • Supports RS485
  • Supports wiegand
  • Two relay output
  • Supports PoE
  • Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
  • Mobile app control by Akuvox SmartPlus App

Akuvox Product-Link













Physical & Power

  • Front panel: Aluminum
  • Camera: 4M pixels, automatic lighting
  • Light sensor: Support
  • Infrared sensor: Support
  • Wiegand port: 1ch input/output(selectable)
  • RS485 port: Support
  • RF card reader: 13.56MHz&125kHz, NFC (only Android)
  • Relays out: 2
  • Relays inputs: 2
  • Microphone: 1
  • Speaker: 1
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3at Power-over-Ethernet
  • IP Level: IP65
  • Installation: Flush-mounted or Wall-mounted
  • Working Humidity: 10-90%
  • Working Temperature: -30°C ~ +60°C
  • Storage Temperature: -40°C ~ +70°C

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ
  • Wideband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video

  • Sensor: 1/3.2″, CMOS
  • Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K
  • Video codec: H.264
  • Video resolution: up to 2000×2000
  • Max. image transfer rate: 2K-30fps
  • Viewing angle: 150°(H)/150°(V)
  • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • Compatible to 3rd-party video components, e.g. NVRs

Networking and Protocol

  • Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Relays controlled individually by DTMF tones
  • Multi-way unlocking: EM/Mifare Card and PIN
  • Camera permanently operational
  • White balance: auto
  • Minimum illumination: 0.1LUX

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Entry log export
  • Access table export / import
  • Firmware upgrade
  • System logs (include door access logs)

Capacity

  • User: 5,000
  • Card: 25,000
  • PIN: 5,000

Card Type

  • EM card
  • Mifare card
  • DesFire card（EV1/EV2/EV3）
