Akuvox R29S

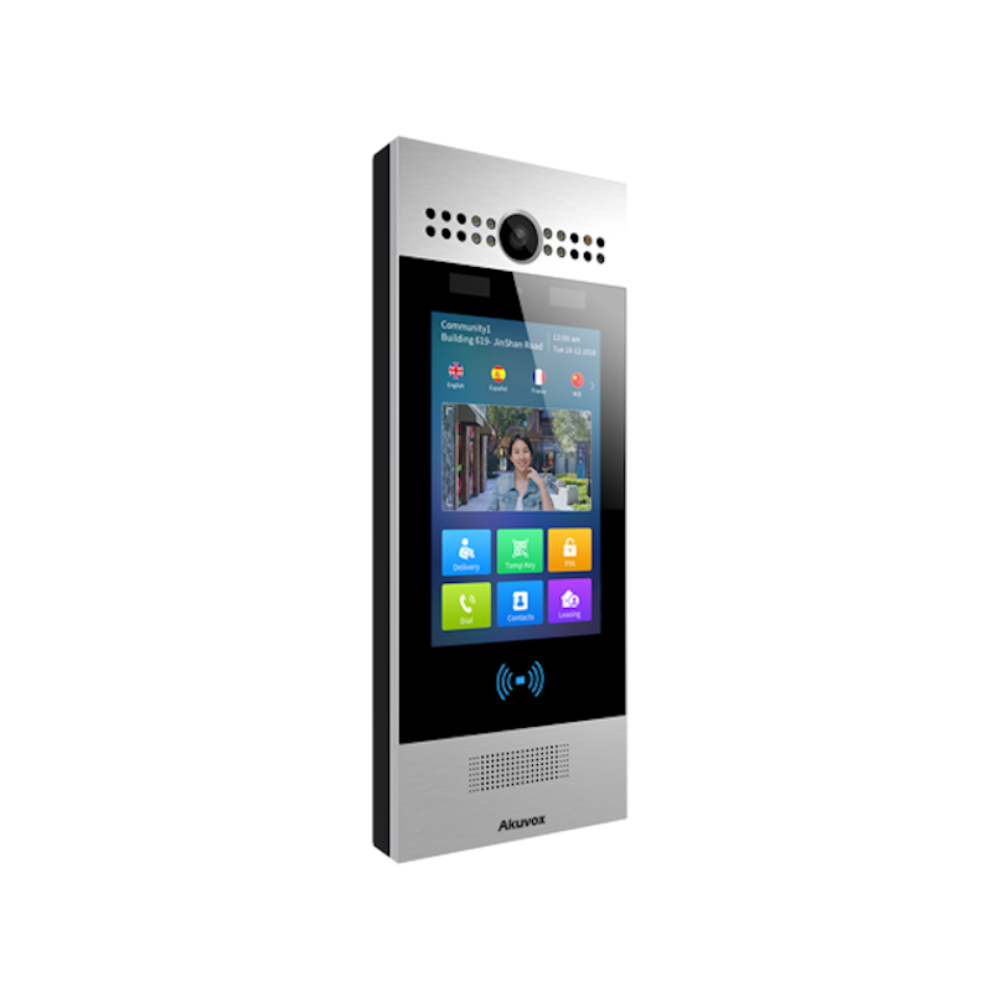

Akuvox R29S 2MP Camera Android PoE IP IR H264 Outdoor Video Intercom Unit with 7″ Touchscreen Panel – AI Face Recognition – Complies with SIP & ONVIF – IP65 & IK06 Rated – Built-in EM + Mifare Card-Reader – Relay Output – Supports RS485 & Wiegand – Three-Lock Control
Akuvox R29S 2MP Camera Android PoE IP IR H264 Outdoor Video Intercom Unit with 7″ Touchscreen Panel – AI Face Recognition – Complies with SIP & ONVIF – IP65 & IK06 Rated – Built-in EM + Mifare Card-Reader – Relay Output – Supports RS485 & Wiegand – Three-Lock Control
Key Features :-
- 2MP Video Camera with 105° horizontal wide angle view
- AI-powered Face recognition support
- Integrated 7″ LED display – touchscreen panel
- IP65 rated weatherproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Android operating system
- Body material: Aluminum Alloy
- Supports RS485
- Supports wiegand
- Three relay outputs
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
At a Glance
- Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises
- Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries
- Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%
- Allows both audio and video communication to an IP phone, mobile client, or softphone
- Enables the ability to remotely control the door/gate
- Presents information and user navigation options unique to your business
- Speeds response time to visitors, delivery and service personnel that require access
Physical & Power
- Front panel: Aluminum
- RAM / ROM: 2GB / 16GB
- Display: 7 Inch IPS LCD
- Screen: 7 Inch capacitive touch screen
- Main Camera: 2M pixels, automatic lighting
- Auxiliary Camera: 1M pixels
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz
- Relays ln/out: 3/3
- Microphone: -32dB
- Speaker: 8Ω / 2W
- Bluetooth: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3at Power-over-Ethernet
- IP/IK Level: IP65/ IK06
- Installation: Flush-mounted & Wall-mounted
- Flush-mounted DIM: 324x130x60mm
- Wall-mounted DIM: 324x130x33mm
- Working Humidity: 10-90%
- Working Temperature: -20°C – +55°C
- Storage Temperature: -40°C – +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8″, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 25fps
- Viewing angle: 105(H)/55°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- White LEDs for QR code scanning
- Compatible to 3rd-party video components,
Networking and Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- Android OS for any 3rd-party software or customization
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, IC/ID Card, PIN and BLE
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
- Business information or a welcome experience for guests
