Akuvox S535-Standard
Akuvox S535-Standard IP66-Rated Weatherproof Face-Recognition PoE IP Intercom Station – 5″ Touchscreen – 2MP Camera – SIP & ONVIF – Built-in Dual-Freqency (125KHz + 13.56MHZ) RFID Card-Reader – Bluetooth – One-Lock Control
Akuvox S535-Standard IP66-Rated Weatherproof Face-Recognition PoE IP Intercom Station – 5″ Touchscreen – 2MP Camera – SIP & ONVIF – Built-in Dual-Freqency (125KHz + 13.56MHZ) RFID Card-Reader – Bluetooth – One-Lock Control
Key Features :-
- Aluminum panel with 5inch touchscreen
- Linux operation system
- Wide-angle camera: 116º (H), 62º (V)
- Two-way audio communication over IP networks with Echo Cancel feature
- Multi-way access feature including: Face, EM/Mifare Card, PIN, BLE & QR code

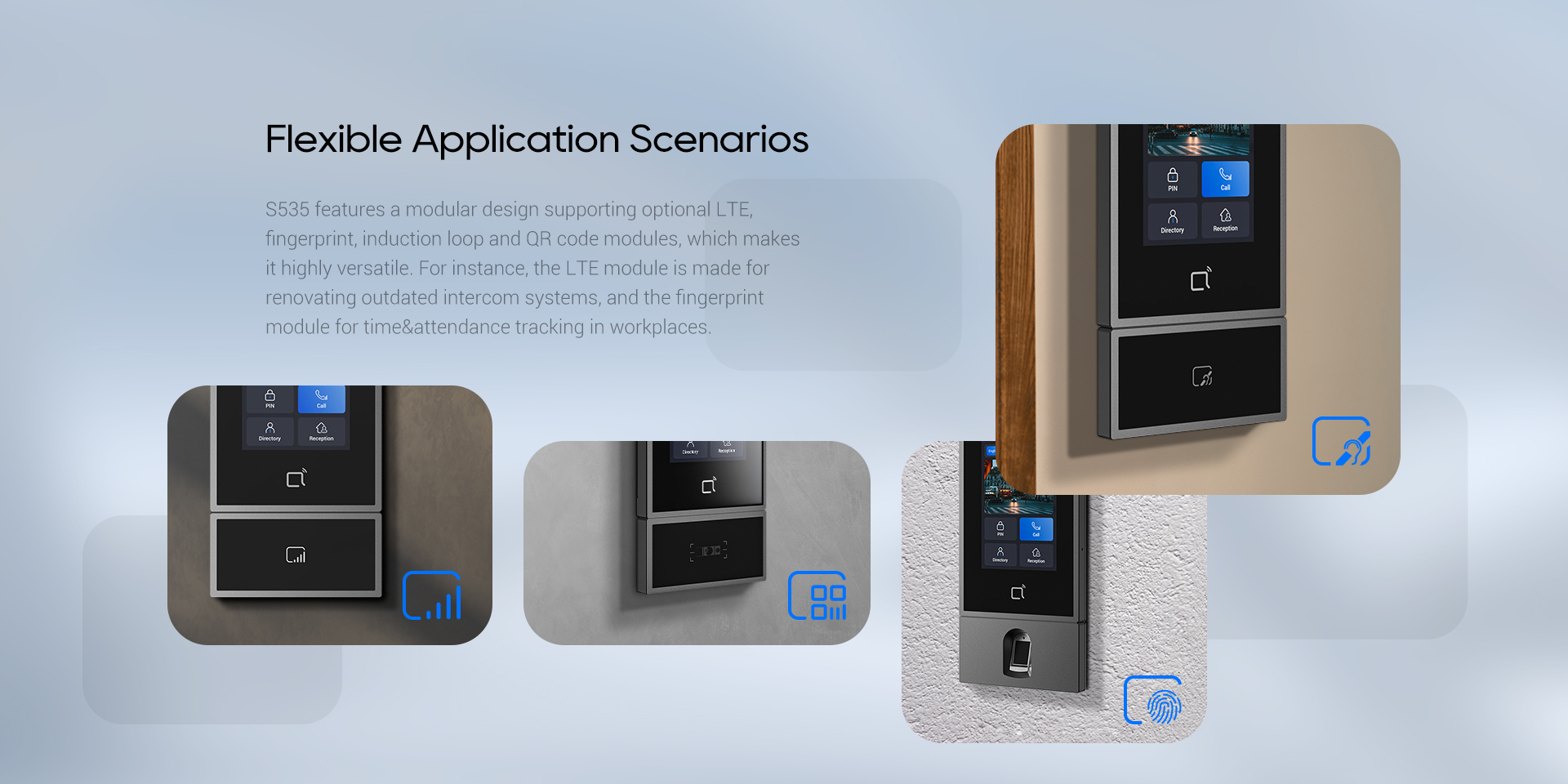

- Support expandable module: LTE or Fingerprint or Induction Loop

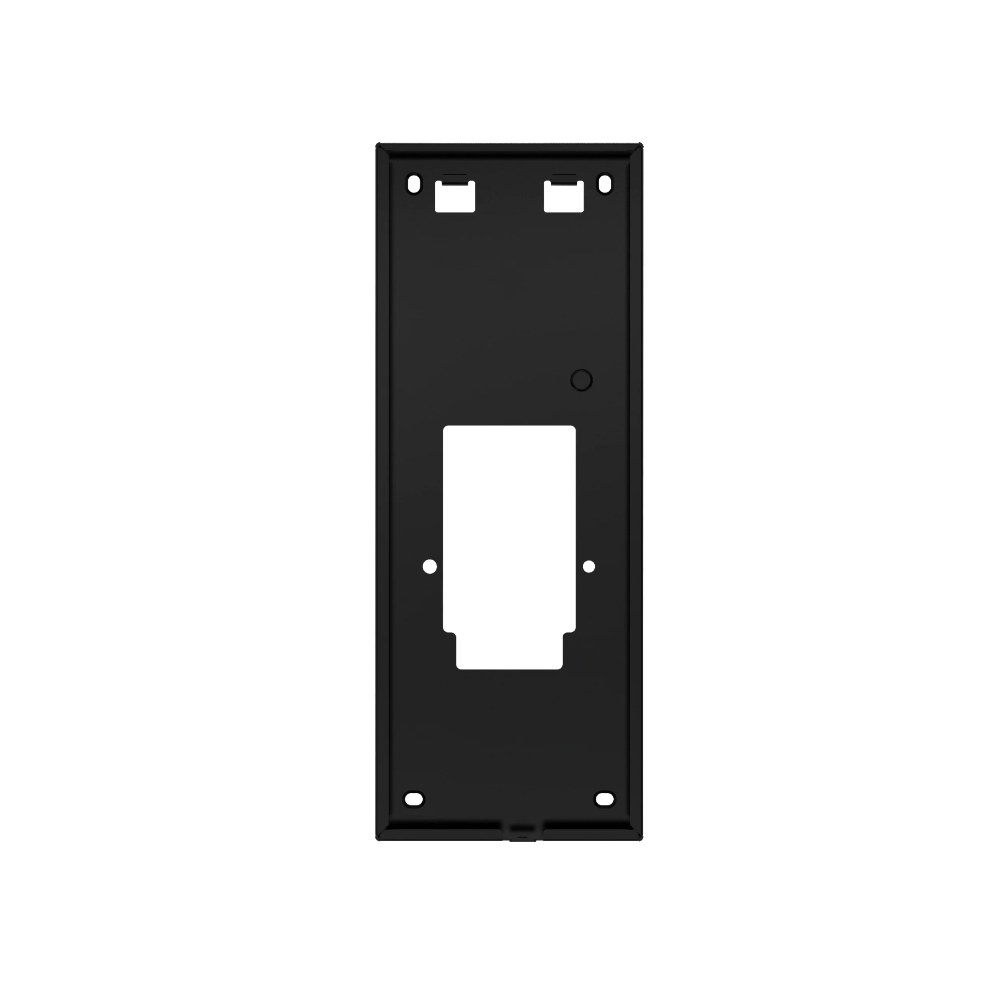

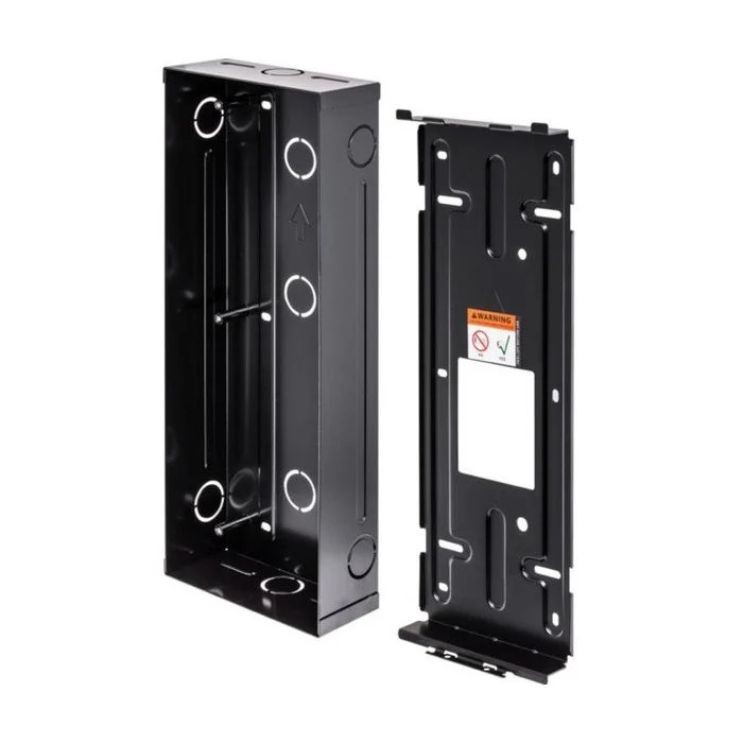

- Flush-mounted & surface-mounted
- Complies with SIP & ONVIF
- Mobile app control by Akuvox SmartPlus App
At a Glance
- Aluminum panel with 5inch touchscreen;
- Linux operation system;
- Wide-angle camera: 116º (H), 62º (V);
- Two-way audio communication over IP networks with Echo Cancel feature;
- Multi-way access feature including: Face, Card, PIN, BLE & QR code;
- Support expandable module: LTE or Fingerprint or Induction Loop;
- Flush-mounted & surface-mounted;
- Complies with SIP & ONVIF;
Physical & Power
- Front Panel: Aluminum
- Display: 5 Inch IPS LCD
- Main Camera: 2M pixels, auto-lighting
- Light Sensor: Support
- Motion Sensor: Support
- Wiegand Port: Support
- RS485 Port: Support
- RF Card Reader: 13.56MHz, 125kHz & NFC
- Relays Out: 1
- Inputs: 2
- Microphone: 1
- Speaker: 1
- Reset: 1
- BLE: Support
- Tamper Alarm: Support
- Expandable Module: Support
- Ethernet Port: 1xRJ45, 10/100Mbps adaptive
- 802.3at Power-over-Ethernet
- Power supply: DC 12V / 4A（max.）
- IP Rating: IP66
- IK Rating: IK08
- Installation: Flush-mounted & Wall-mounted
- Size:210x100x27mm
- Working Humidity: 10~90%
- Working Temperature: -40°C ~ +55°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ
- Wideband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.9”, CMOS for main camera
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video technology: HDR
- Video resolution: up to 1920×1080
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 110°(H) / 62°(V)
- Compatible to 3rd-Party-Video components, e.g. NVRs
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, Card, PIN, BLE & QR code
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
