Akuvox S562W-2

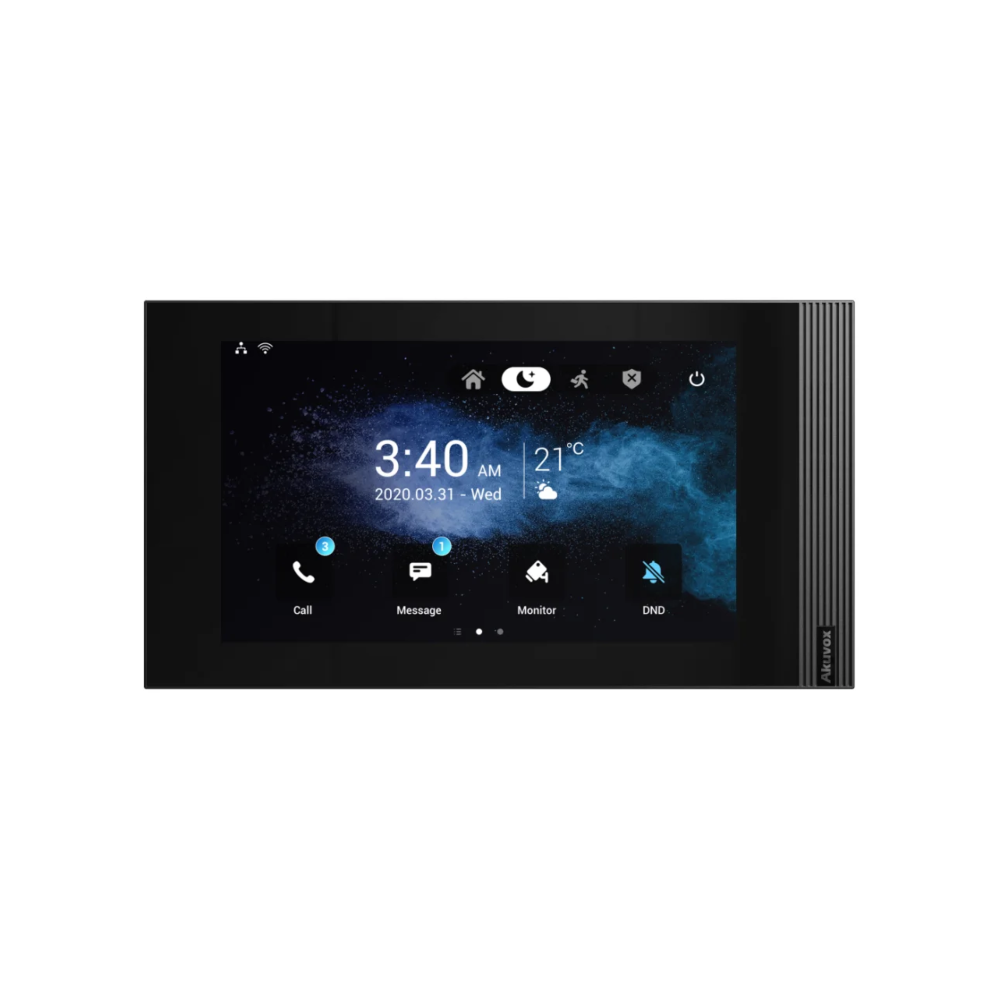

Akuvox S562W-2 2-Wire IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Black Frame – Powered By NS2 OR External Source
SKU: S562W-2
Categories: Akuvox 2-Wire IP Video Intercoms, Akuvox Video Intercoms, Intercoms
Tags: 2-Wire, 7 inch, Akuvox, Audio, Black, Built-in Mic, Gate Control, IP, Monitor, Relay, Speaker, Touchscreen, Video Intercom, WiFi
Akuvox S562W-2 2-Wire IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Black Frame – Powered By NS2 OR External Source
Key Features :-
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the 2-wire IP network
- Powered by NS-2 or external source
- Super long transmission distance via 2-wire cable
- Support US or European electrical wall box mounting
- Mobile app control by Akuvox SmartPlus App
Touch Screen Display
- Display Mode: Normally white, Transmissive
- LCD Size: 7 Inch (Diagonal)
- Resolution: 1024×600
- Contrast ratio: 600: 1
- Luminance: 250 cd/㎡
- Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
- Touch Screen: Projected capacitive
- Wi-Fi: IEEE802.11 b/g/n/ax, @ 2.4GHz
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711 u, G.729
- Broadband audio codec: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP lnfo
- Echo Cancellation
Video
- Streaming formats: H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
- Retrofit project
