Assa Abloy UT-1

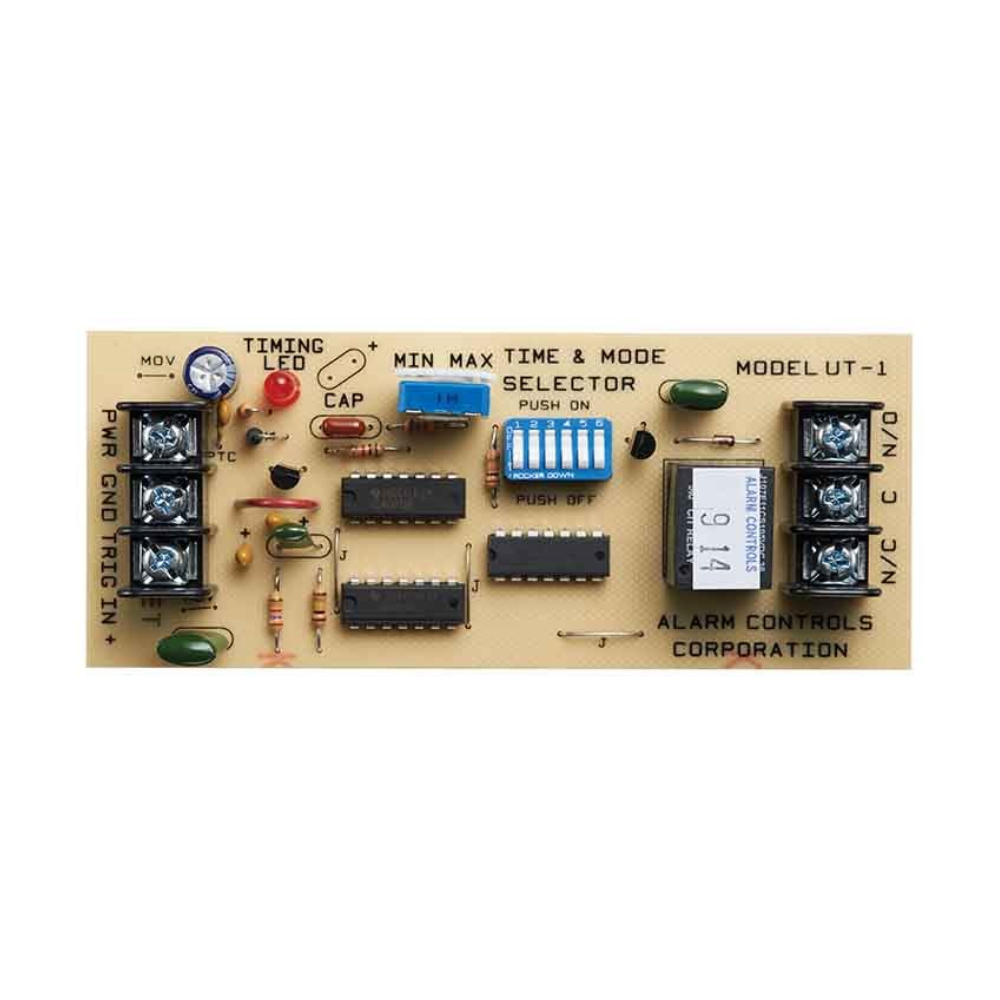

Assa Abloy UT-1 Universal Timer with Four Functions, Delay on Operate, Delay on Release, One Shot and Pulsing, 12 VDC

Universal Timer with Four Functions, Delay on Operate, Delay on Release, One Shot and Pulsing

Features:

  • Voltage range: 12VDC
  • Current Draw: 37mA (maximum)
  • Time range: 1 second to 1 hour
  • Contact arrangement: S.P.D.T.
  • Contact rating: 10 Amps @ 35VDC or 125VAC
  • Temperature rating: -25C to +70C
  • Mounting: adhesive foam tape
  • Size: 2-1/8″ x 5-3/16″

Dimensions:

  • 2-1/8″ x 5-3/16″

Electrical:

  • Operates on 12 VDC
  • SPDT contact rated 12A at 28 VDC
  • Current draw: 37mA max
  • Relay operating mode: one shot

Operating Temperature:

  • -25C to +70C
