D-Tech DH-IPC-EBW5641-AS

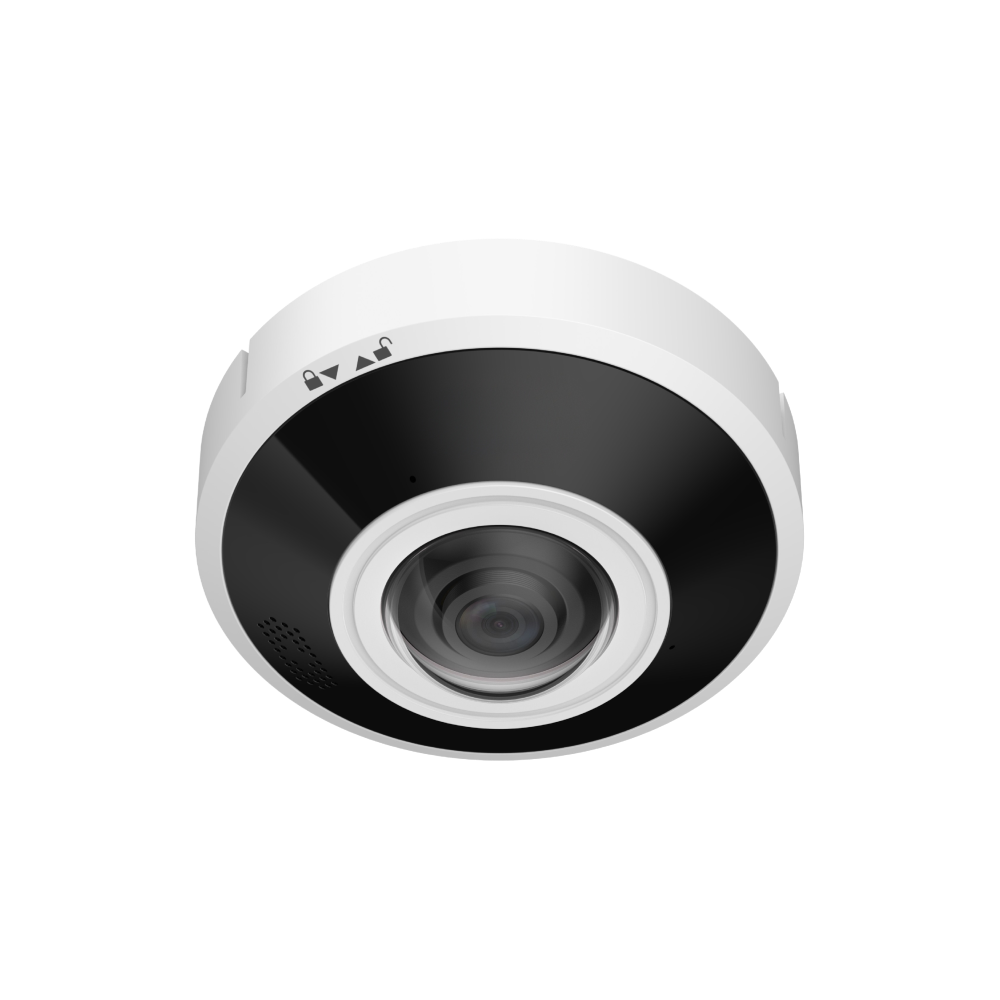

D-Tech DH-IPC-EBW5641-AS WizMind Panoramic 6MP PoE IP IR (15m) Weatherproof 360° Fisheye Dome Camera with Built-in Mic + Speaker
D-Tech Stock Clearance – Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
D-Tech DH-IPC-EBW5641-AS WizMind Panoramic 6MP PoE IP IR (15m) Weatherproof 360° Fisheye Dome Camera with Built-in Mic + Speaker
Key Features :-
- Panoramic Fisheye View
- Outputs Max. 6MP (2560 × 2560) @ 30 fps
- Supports Front-dewarp and Back-dewarp for Intuitive Viewing
- Built-in IR LED, the Max. Illumination Distance is 15m
- Built-in Dual Mic & Speaker: Secure Real-Time Talk
- 120dB WDR Ensures Clear Details in Strong Backlight Conditions
- IP67 and IK10 Ratings for Protection Against Harsh Environments
- People Counting and Heat Map for Customer Traffic Analytics
Camera
| Image Sensor | 1/2.5″ CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 2560 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 1.68 mm: Up to 15 m (49.21 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED) |
Lens
| Lens Type | Fixed-focal | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lens Mount | M12 | |||||||||||||||
| Focal Length | 1.68 mm | |||||||||||||||
| Max. Aperture | F2.0 | |||||||||||||||
| Field of View | 1.68 mm: H: 185°; V: 185°; D: 185° | |||||||||||||||
| Iris Control | Fixed | |||||||||||||||
| Close Focus Distance | 1.68 mm: 0.3 m (0.98 ft) | |||||||||||||||
| DORI Distance |
|
|||||||||||||||
Intelligence
| EPTZ | Yes |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (the two functions support accurate detection of human) |
| People Counting | Tripwire people counting, generating and exporting report (day/month/year); queue management and people counting in area, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
|---|---|
| AI Coding | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Max Resolution in O Mode by Default Main stream: 2560 × 2560@(1–25/30 fps) sub stream: 1440 × 1440@(1–25/30 fps) third stream: 1440 × 1440@(1–25/30 fps) Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); Resolution of 2 Split Windows in 2R Mode: Sub stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); Resolution of 4 Split Windows in 4R Mode: sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); |
| Streaming Capability | 3 streams |
| Resolution | 6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 × 768); 1.3M (1920 × 720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 mosaics + 4 color blocks |
Fisheye
| Installation | Ceiling mount; wall mount; ground mount |
|---|---|
| Decoding Mode | Front-dewarp;Back-dewarp |
| Display mode | Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye image view; P: Panoramic image view; R: Region image view. Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
Audio
| Built-in MIC | Yes, built-in dual Mic |
|---|---|
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exception |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Port
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
Power
| Power Supply | 12 VDC, 1 A; PoE (802.3af) |
|---|---|
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 1.4 W (12 VDC), 2.6 W (PoE); Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity) |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | Φ122 mm × 53.3 mm (Φ4.80″ × 2.10″) |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.75 kg (1.65 lb) |
