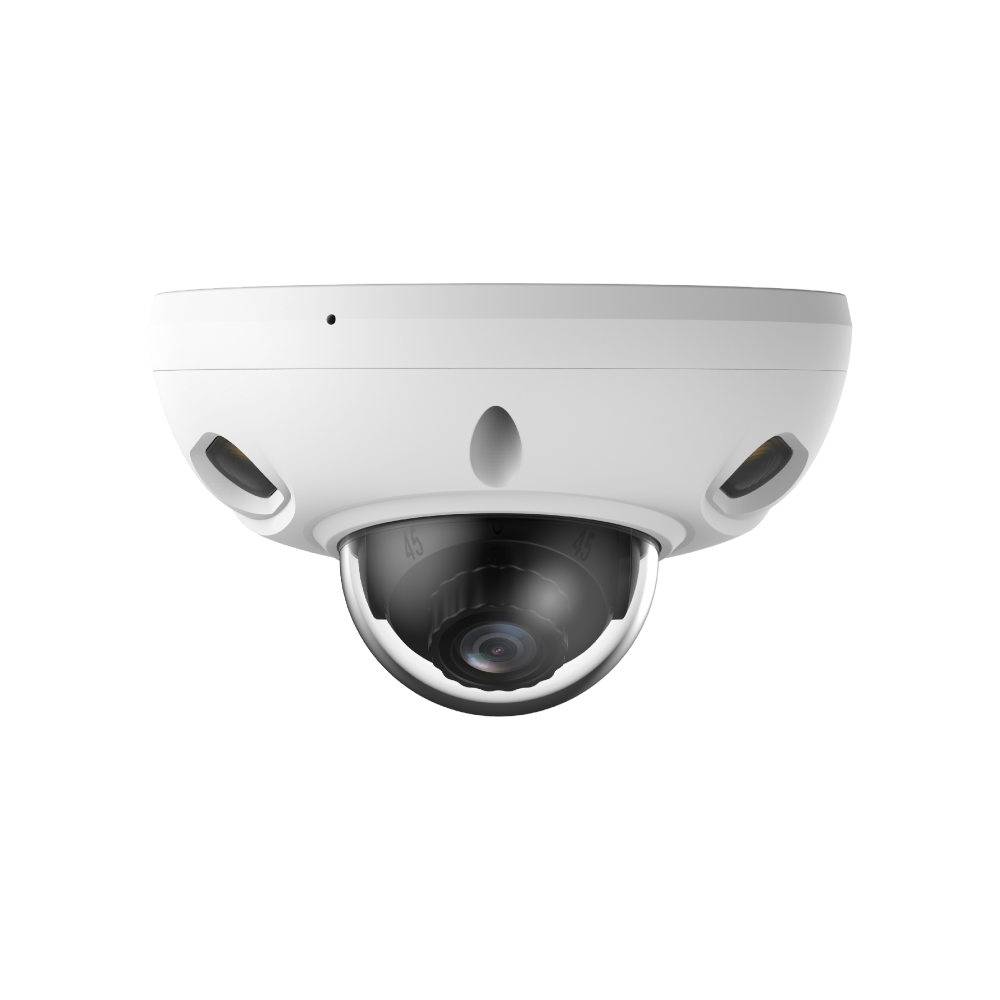

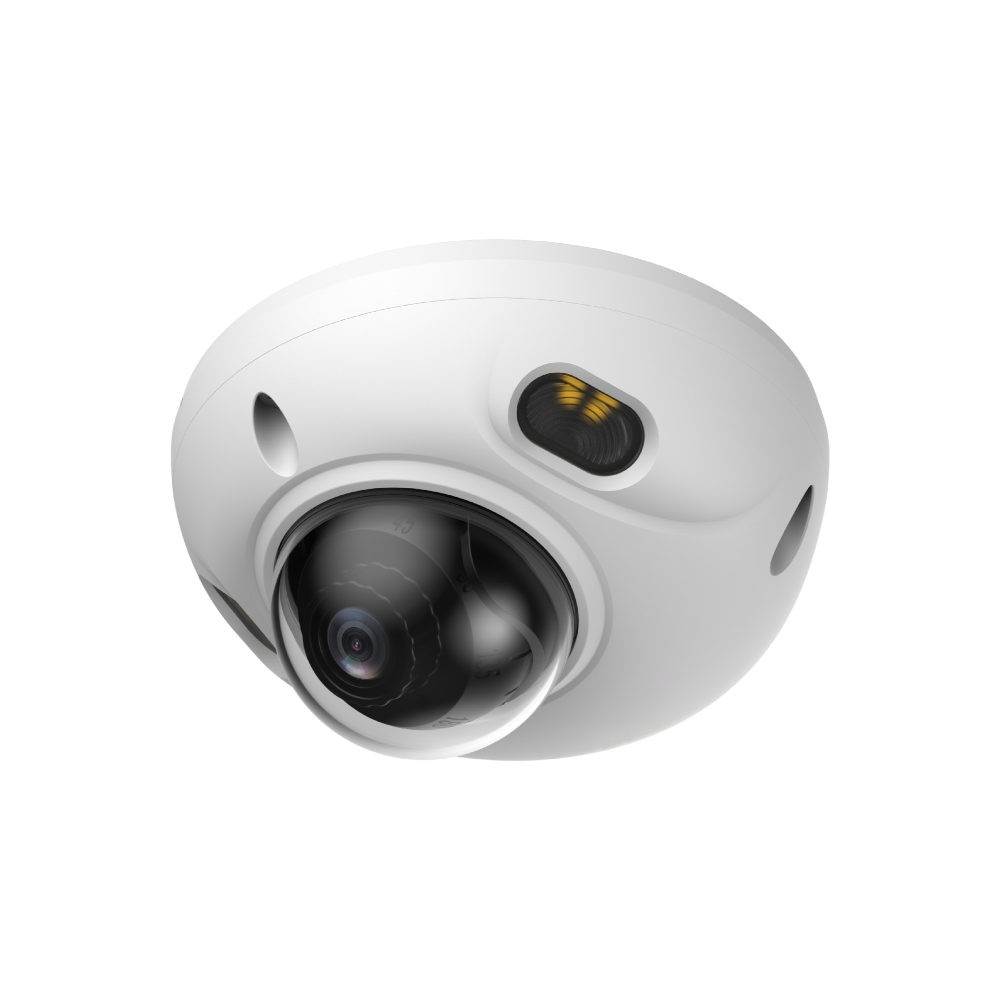

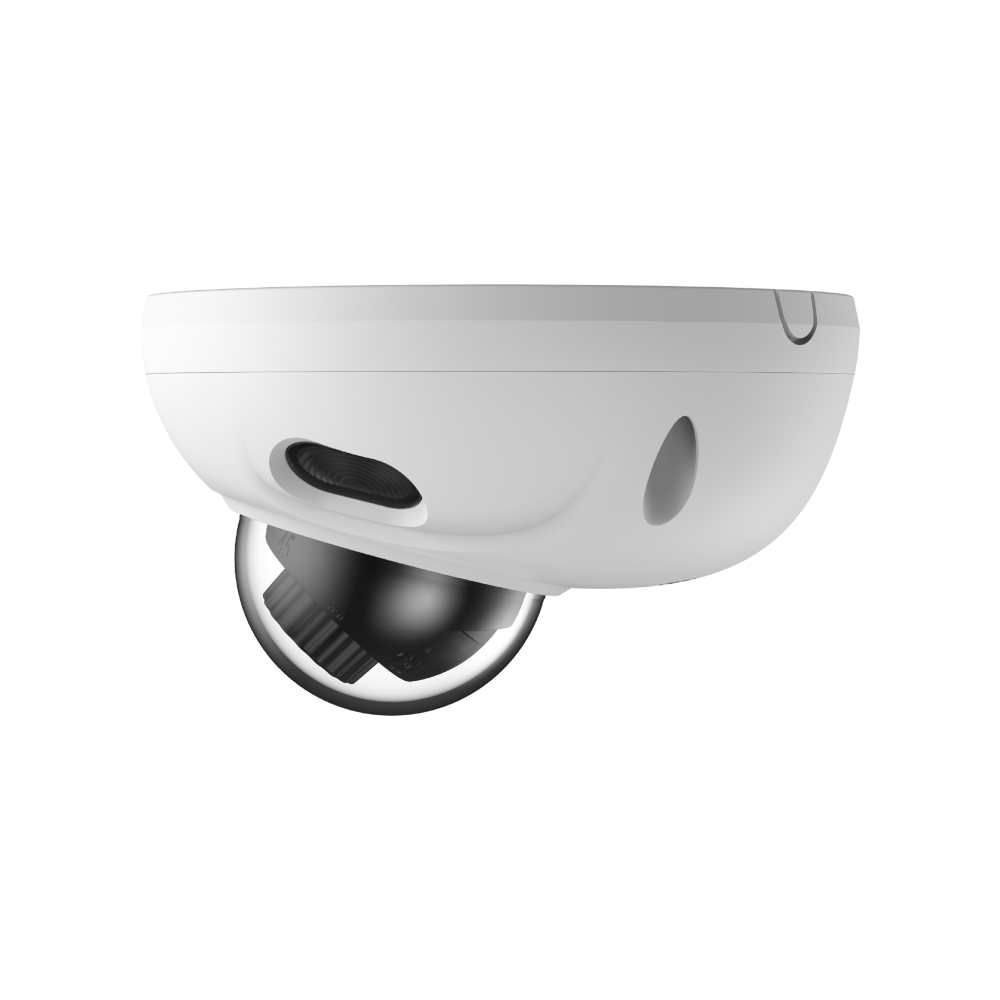

D-Tech DH-IPC-HDBW3667F-AS-IL-ANZ-2.1MM

1/2.7″ CMOS

3288 (H) × 1850 (V)

256 MB

1 GB

Progressive

Auto/Manual 1/3 s–1/100,000 s

0.008 [email protected] (Color, 30 IRE)

0.0008 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

>56 dB

Up to 30 m (98.43 ft) (IR);

Up to 30 m (98.43 ft) (Warm light)

Auto;Manual

4 (Multi-core (IR + warm) light)

Pan: –30° to 30°

Tilt: 0° to 80°

Rotation: 0° to 360°

Fixed-focal

M12

2.1 mm; 2.8 mm

F1.6

2.1 mm: H: 141.1°; V: 74.5°; D: 170.1°

2.8 mm: H: 108.4°; V: 60°; D: 127.1°

Fixed

2.1 mm: 1.0 m (3.28 ft)

2.8 mm: 1.4 m (4.59 ft)

( 189.63 ft)

( 75.79 ft)

( 38.06 ft)

( 19.03 ft)

( 230.64 ft)

( 92.19 ft)

( 46.26 ft)

( 22.97 ft)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), loitering detection, and stay detection

SMD 4.0

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

AI H.264/H.265;

*includes SmartCodec Technology，Smart H.264+ /H.265+

Main stream: 3288 × 1850@(1–25/30 fps)

Sub stream: 1920 × 1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

3 streams

6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

VBR;CBR;ABR

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Auto(ICR)/Color/B/W

Yes

Yes

120 dB

Yes

Auto; natural; street lamp; outdoor; manual; regional custom

Auto/Manual

3D NR

OFF/ON (4 areas, rectangular)

Yes (4 areas)

Yes

Yes

Yes

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Yes

8 areas

Yes

Yes, built-in Mic

PCM; G.711a; G.711Mu; G.726; G.723

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; face detection; loitering detection; stay detection; people detection; motor vehicle detection; SMD; security error

RJ-45 (10/100 Base-T)

Yes

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

20 (Total bandwidth: 64 M)

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

IE: IE11;

Chrome;

Firefox

Smart PSS Lite; DSS; DMSS; DoLynk Care

iOS;Android

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

1 channel (RCA port)

1 channel (RCA port)

1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection

1 channel out: wet contact, max load 300 mA 12 VDC

12 VDC (±30%); PoE (802.3af)

Basic: 3.8 W (12VDC); 8.7 W (PoE);

Max.: 4.6 W (12 VDC); 10.1 W (PoE) (H.265 + WDR + warm light + intelligence on)

–40 °C to +60 °C (–40 °F to +140 °F)

≤ 95% (RH), non-condensing

–40 °C to +60 °C (–40 °F to +140 °F)

≤ 95% (RH), non-condensing

IP67; IK10

Basic Protection

*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Metal

64.8 mm × Φ111.0 mm (2.55″ × Φ4.37″)

423 g (0.93 lb)

590 g (1.30 lb)
