D-Tech DH-IPC-HDW3649T-ZS-IL

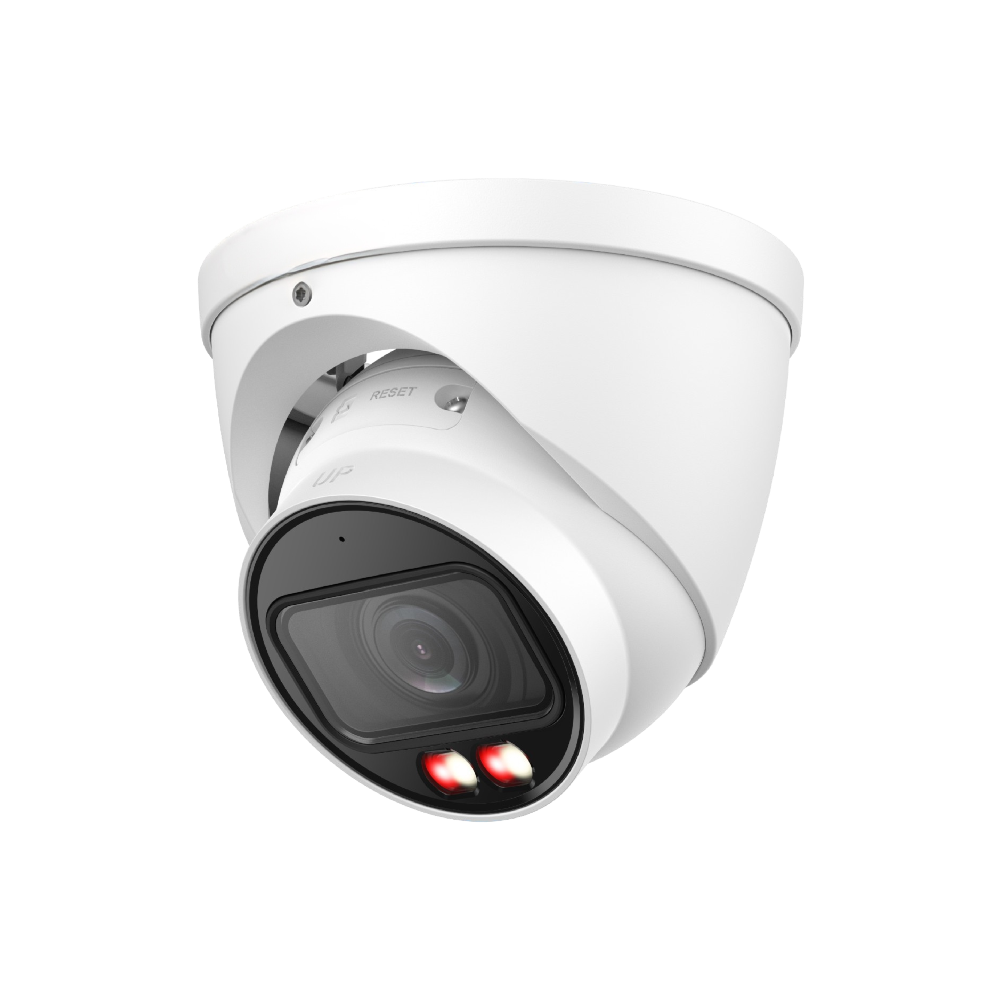

D-Tech DH-IPC-HDW3649T-ZS-IL WizSense AI H265 6MP PoE IP Smart-Dual-Light (50m IR + 50m White-Light) 120dB True-WDR SSA Weatherproof Eyeball Turret Camera with 2.7~13.5mm Motorized Zoom Lens – Built-in Audio Mic
D-Tech Stock Clearance – Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
D-Tech DH-IPC-HDW3649T-ZS-IL WizSense AI H265 6MP PoE IP Smart-Dual-Light (50m IR + 50m White-Light) 120dB True-WDR SSA Weatherproof Eyeball Turret Camera with 2.7~13.5mm Motorized Zoom Lens – Built-in Audio Mic
Key Features :-
- 1/2.7″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 6MP (3288 × 1850) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 50m and the max. warm light distance is 50m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. · Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image)
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 512 G Micro SD card; built-in Mic
- 12VDC / PoE power supply
- IP67 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
Camera
| Image Sensor | 1/2.7″ CMOS |
|---|---|
| Max. Resolution | 3288 (H) × 1850 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Motorized vari-focal | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lens Mount | φ14 | ||||||||||||||||||||
| Focal Length | 2.7 mm–13.5 mm | ||||||||||||||||||||
| Max. Aperture | F1.4 | ||||||||||||||||||||
| Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° | ||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||
| Close Focus Distance | 0.1 m (0.33 ft) | ||||||||||||||||||||
| DORI Distance |
|
||||||||||||||||||||
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
|---|---|
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Yes |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
|---|---|
| AI Coding | AI H.265; AI H.264 *includes SmartCodec Technology，Smart H.264+ /H.265+ |
| Video Frame Rate | Main stream: 3288 × 1850@(1 –25/30 fps) Sub stream: 1920 × 1080@(1 –25/30 fps) Third stream: 1920 × 1080@(1 –25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
Audio
| Built-in MIC | Yes, built-in Mic |
|---|---|
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; SMD; security exception |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Power
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7 W (12 VDC); 4.5 W (PoE); Max. : 8.2 W (12 VDC); 9.8 W (PoE) (H.265 + WDR + warm light + intelligence on) |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26″ × Φ4.80″) |
| Net Weight | 690 g (1.52 lb) |
| Gross Weight | 920 g (2.03 lb) |
