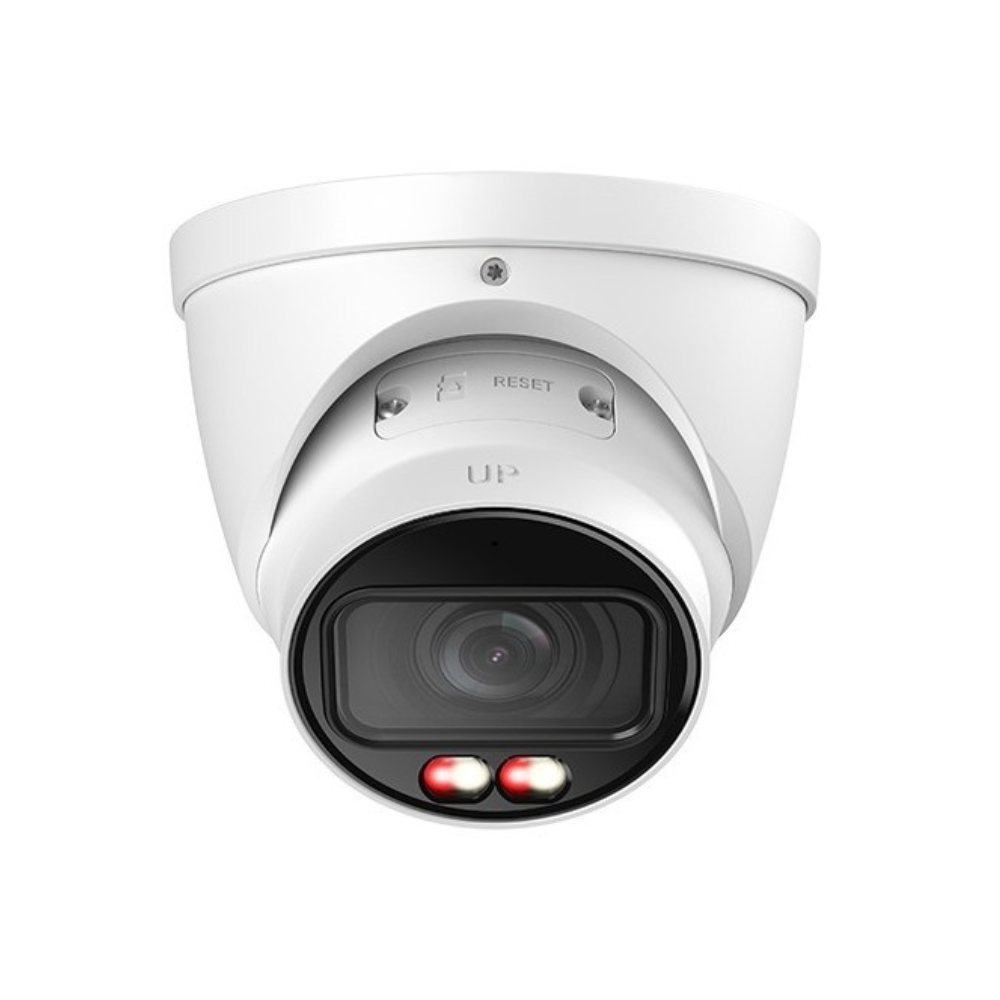

D-Tech DH-IPC-HDW3867EM-S-IL-ANZ

1/2.7″ CMOS

3840 (H) × 2160 (V)

256 MB

1 GB

Progressive

Auto/Manual 1/3 s–1/100,000 s

0.007 [email protected] (Color, 30 IRE)

0.0007 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

>56 dB

Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Auto;Manual

2 (Multi-core (IR + warm) light)

Pan: 0°–360°

Tilt: 0°–80°

Rotation: 0°–360°

Fixed-focal

M12

2.8 mm; 3.6 mm

F1.4

2.8 mm: H: 110°; V: 58°; D: 132°

3.6 mm: H: 86°; V: 49°; D: 100°

Fixed

2.8 mm: 1.4 m (4.59 ft)

3.6 mm: 1.9 m (6.23 ft)

( 278.22 ft)

( 111.22 ft)

( 55.77 ft)

( 27.89 ft)

( 323.82 ft)

( 129.59 ft)

( 64.63 ft)

( 32.48 ft)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD 4.0

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI H.265; AI H.264

Main stream: 3840 × 2160@(1–25/30 fps)

Sub stream: 1920 × 1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

3 streams

8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

VBR;CBR;ABR

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Auto(ICR)/Color/B/W

Yes

Yes

120 dB

Yes

Auto; natural; street lamp; outdoor; manual; regional custom

Auto/Manual

3D NR

OFF/ON (4 areas, rectangular)

Yes (4 areas)

Yes

Yes

Yes

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Yes

8 areas

Yes

Yes, built-in Mic

PCM; G.711a; G.711Mu; G.726; G.723

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection SMD; security exception

RJ-45 (10/100 Base-T)

Yes

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

20 (Total bandwidth: 64 M)

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

IE: IE11;

Chrome;

Firefox

Smart PSS Lite; DSS; DMSS; DoLynk Care

iOS;Android

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

12 VDC/PoE (802.3af)

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Basic: 3.7 W (12 VDC); 5.3 W (PoE);

Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

–40 °C to +60 °C (–40 °F to +140 °F)

≤95% (RH), non-condensing

–40 °C to +60 °C (–40 °F to +140 °F)

≤95% (RH), non-condensing

IP67

Metal

105.5 mm × Φ122.0 mm (4.16″ × Φ4.80″)

0.53 kg (1.17 lb)

0.71 kg (1.57 lb)
