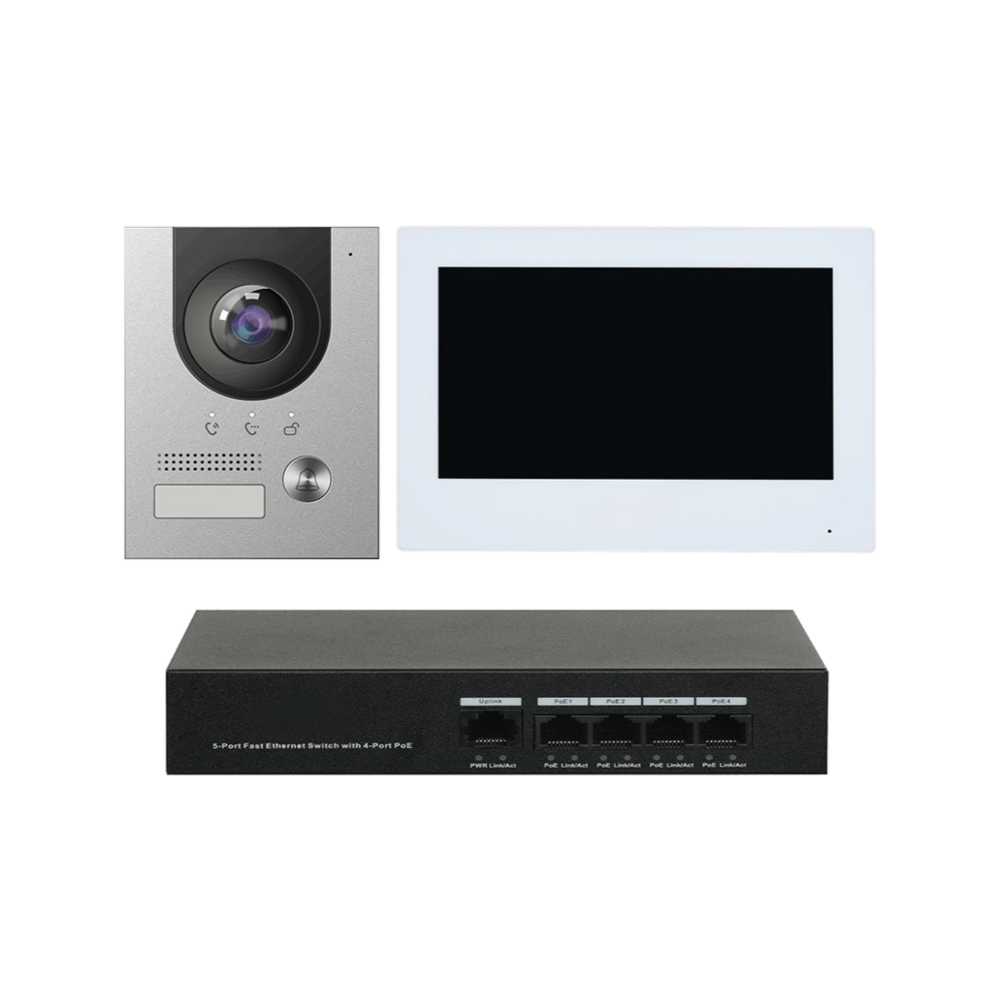

D-Tech DHI-KTP01L(S) IP Video Intercom Kit – Includes 1 * DHI-VTO2202F-P PoE Outdoor Intercom Station (Metal Case) + 1 * DH-VTH2421FW-P 7″ Indoor PoE Touchscreen Monitor + 1 * DH-PFS3006-4ET-36 PoE Switch

Key Features :-

  • IP Villa Door Station
      • Anodized alumimum front panel
      • CMOS low illumination 2MP HD colorful 140° camera
      • Video intercom function
      • Access control function that supports two locks
      • Use the app to talk to visitors or unlock the door remotely on your phone.
      • Surface mounted and flush mounted.
      • PoE
      • IK07 & IP65
  • IP Indoor Monitor
      • 7″ TFT capacitive touch screen
      • 6-channel alarm input and 1-channel alarm output
      • Supports standard PoE
      • SOS alarm
      • Supports daisy chain topology
  • Switch
      • 4 PoE ports with 10/100 Mbps Base-TX
      • 2 uplink ports with 10/100Mbps Base-TX
      • Supports 250 m long distance PoE tansmission
System (VTO)
Main Processor Embedded Processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4
Basic(VTO)
Camera 1/2.9″ 2 MP CMOS
Field of View H: 168.6°; V: 87.1°; D: 176.7°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265; H.264
Video Resolution Main stream: 720p; WVGA; D1; CIF
Sub stream: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate 25 fps
Video Bit Rate 256 kbps to 8 Mbps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W; Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kHz, 16 bits
Function(VTO)
Communication Mode Full digital
Unlock Mode Remote
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Storage Supports Micro SD card (up to 256 GB)
Web Configuration Yes
Performance(VTO)
Casing Material Aluminum
Port (VTO)
RS-485 1
Alarm Output 1
Power Output 1 port (12 V, 600 mA)
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port 1 × RJ-45 port, 10/100 Mbps network port
Alarm(VTO)
Tamper Alarm Yes
General (VTO)
Appearance Color Silver
Power Supply 48 VDC, 0.4 A;
PoE (802.3af/at)
Power Adapter Optional
Installation Surface mount (The surface mount kit comes with the surface mount bracket)
Certifications CE
Product Dimensions 200.0 mm × 98.0 mm × 35.4 mm (7.87″ × 3.86″ × 1.39″)
Protection IK08, IP65 (Silicone sealant is needed, see the quick start guide)
Operating Temperature –40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Beneath 3000 m (9842.52 ft)
Operating Environment Outdoor
Power Consumption ≤5 W (standby), ≤7 W (working)
Gross Weight 692 g (1.53 lb)
Storage Humidity 30%–75% (RH)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
System (VTH)
Main Processor Embedded Processor
Operating System Embedded Linux Operation System
Basic (VTH)
Screen Type Capacitive Touchscreen
Display Screen 7″ TFT
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1-channel all-direction microphone
Audio Output Built-in 1.5 W loudspeaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kbps
Function (VTH)
Communication Mode Full digital
Information Release Supports to receive and view notifications issued by center
Leave Videos Yes
DND Mode Do not disturb period can be set
Number of Extensions 9
Storage Embedded 8 GB card
Port (VTH)
Alarm Input 6 channel (switch quantity)
Alarm Output 1 channel
Network Port 1 × RJ-45 port
Alarm(VTH)
SOS Alarm Yes
Performance(VTH)
Casing Material PC + ABS
General (VTH)
Appearance Color Black
Power Supply 12 VDC, 1 A, PoE
Installation Surface Mount
Certifications CE; FCC; UL
Accessory Default bracket Default alarm cable
Product Dimensions 119.6 mm × 221.5 mm × 23.5 mm (4.71″ × 8.72″ × 0.93″)
Operating Temperature -10°C to +55°C (+14°F to +131°F)
Operating Humidity 10%-95% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Operating Environment Indoor
Power Consumption ≤4 W (standby), ≤6 W (working)
Gross Weight 0.35 kg (0.77 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH), non-condensing
Storage Humidity 30%–75% (RH)
System(Networking Device)
Main Processor Embedded Processor
Port(Networking Device)
Network Port 4 × PoE ports with 10/100 Mbps Base-TX
2 × uplink ports with 10/100 Mbps Base-TX
General (Networking Device)
Appearance Color Black
Power Supply Built-in power supply: 100–240 VAC
Certifications CE; FCC
Product Dimensions 194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ ×1.38″)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Power Consumption Idling: 0.5 W; Full load: 36 W
Gross Weight 1.11 kg (2.15 lb)
