Digitus DN-38010

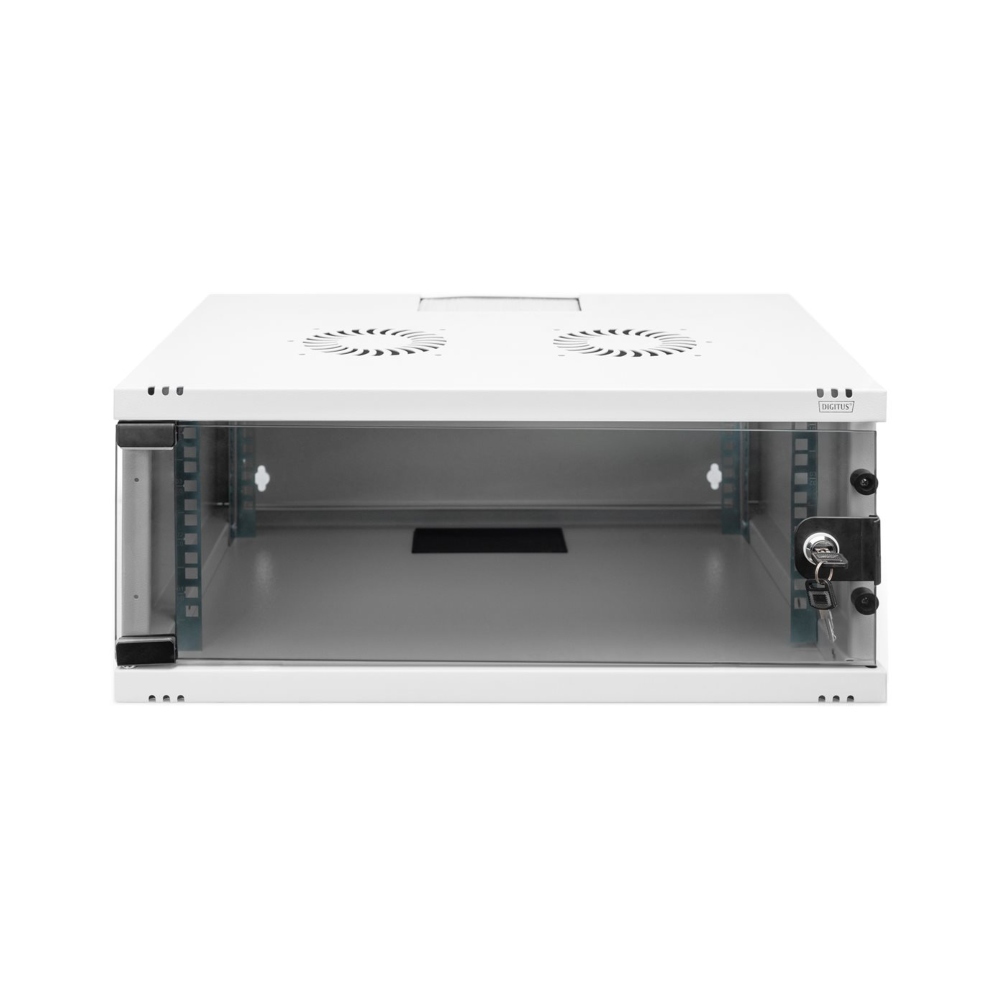

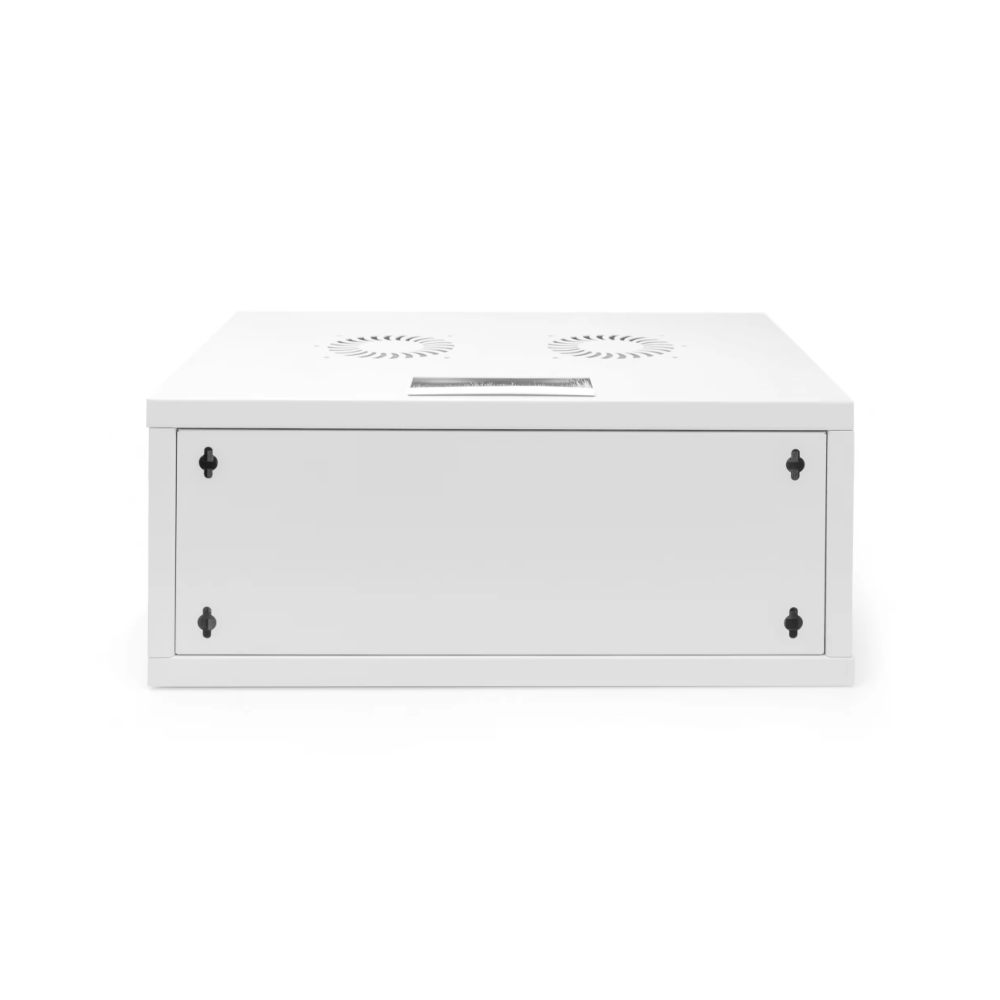

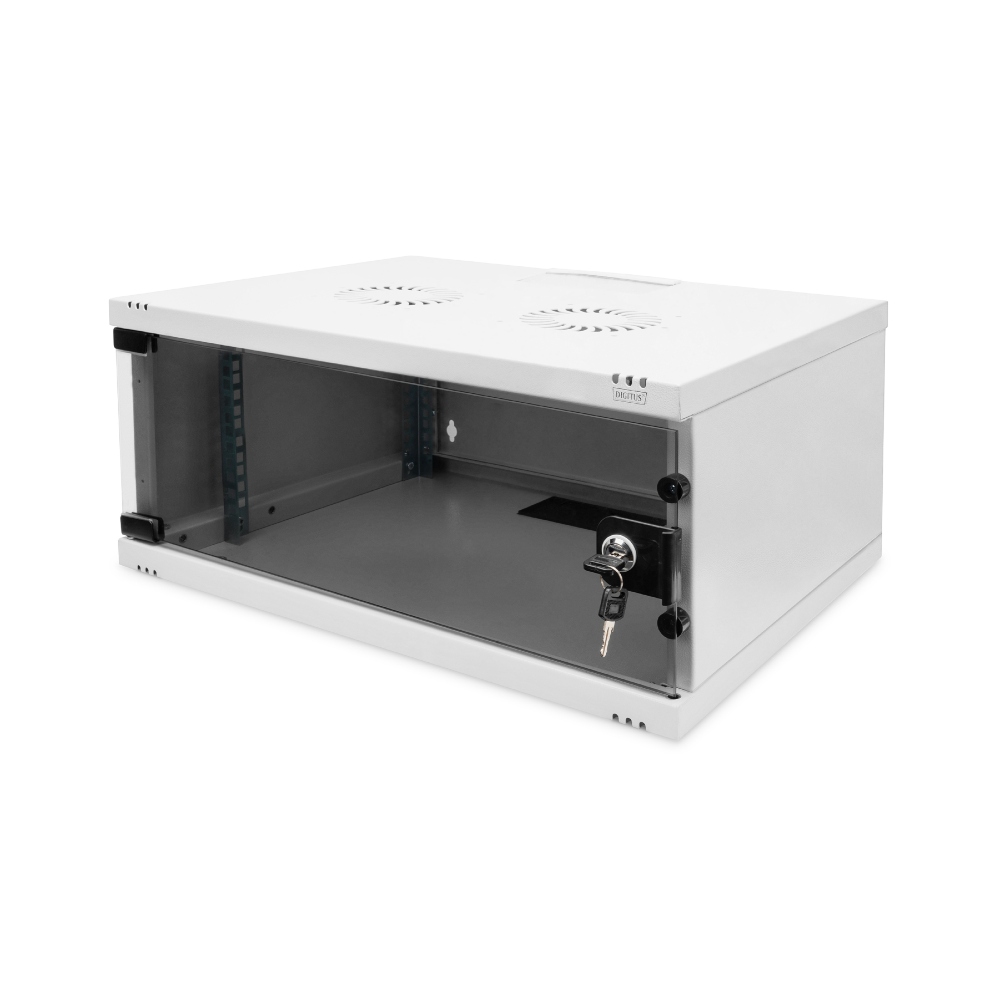

Digitus DN-38010 4U 19″ Wall-Mount Server / Data / Network Cabinet – White – Flat-Pack Supply – Dimensions: 241mm (H) x 540mm (W) x 400mm (D)
SKU: DN-38010
Categories: Indoor Wall-Mount Cabinets, Network / Data / Server - Cabinets & Enclosures, Networking Products
Tags: 4U, Data Cabinet, Digitus, Network Cabinet, Server Cabinet, Wall-Mount, White
Digitus DN-38010 4U 19″ Wall-Mount Server / Data / Network Cabinet – White – Flat-Pack Supply – Dimensions: 241mm (H) x 540mm (W) x 400mm (D)

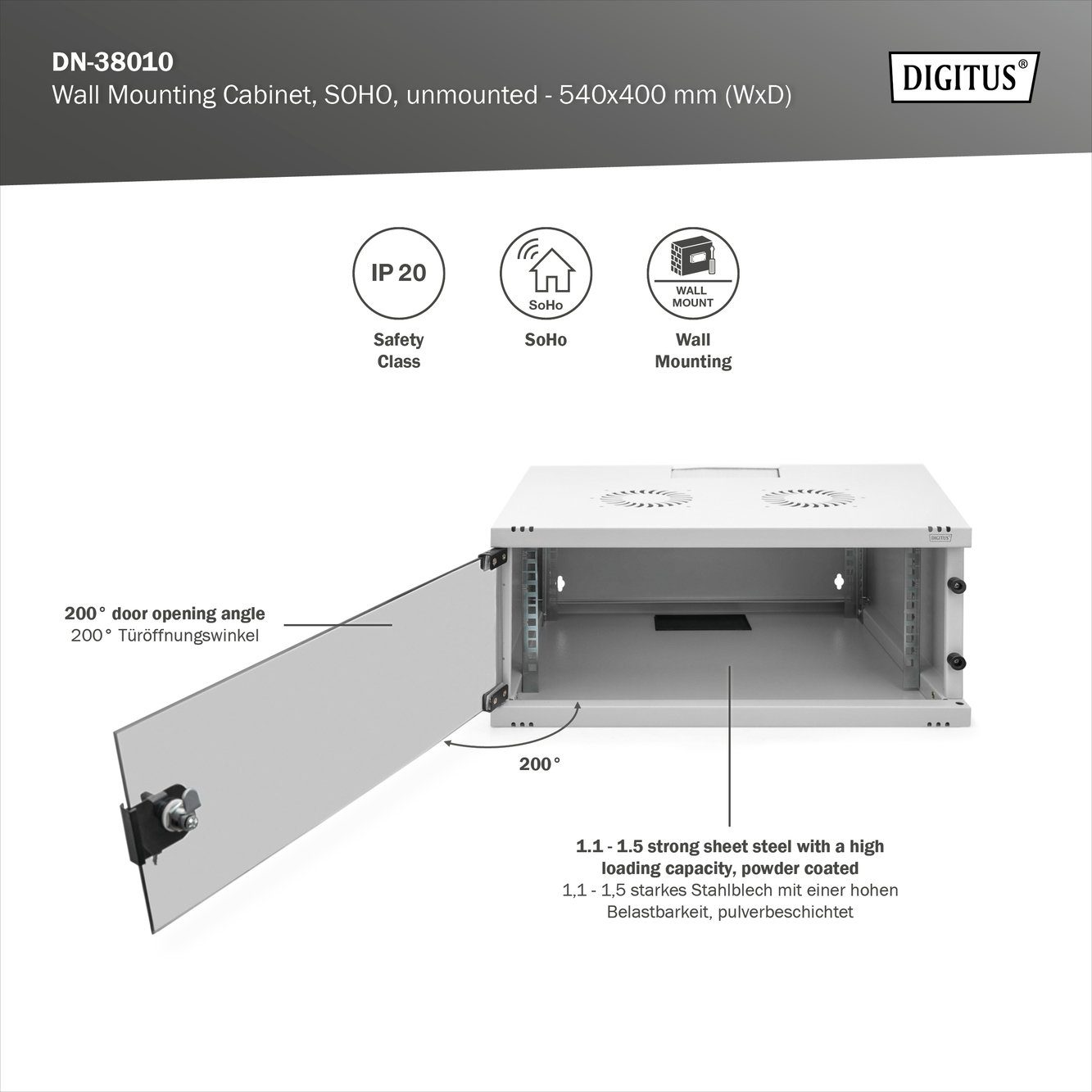

Technical details
- Safety class rating IP20
- Lockable safety-glass door
- 200° door opening angle
- 1-point-locking-mechanism on the front door
- 483 mm (19”) profile rails are adjustable in depth
- 1.1 – 1.5 strong sheet steel with a high loading capacity, powder coated
- Cable entry with brush strip on the top and with plastic cover on the base
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- Equipment mounting depth min.-max.: 170-270 mm
- Installation depth for components min. – max.: 170 – 270 mm
Attributes
- Cabinet type: Wall mounting cabinet
- Color: light grey, RAL 7035
- Depth: 400 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 4
- Width: 540 mm
- IP protection class: IP20
- Mounted: no
Package content
- Installation set (screws, cage nuts, washers)
- 2 x keys
- 1 x QIG
| Door | Lockable Safety-glass door 200° door opening angle 1-point-locking-mechanism |
| Equipment Mounting Depth | Min: 170mm Max: 270mm |
| Cabinet Type | Wall Mounting Cabinet |
| Colour | Light grey |
| Depth/Width | 400mm/540mm |
| Load Capacity | 60kg |
| Side Panels | Both Sides |
| Units | 4 |
| IP Protection Class | IP20 |
