Dynamix C-C6-SLD24-GREEN

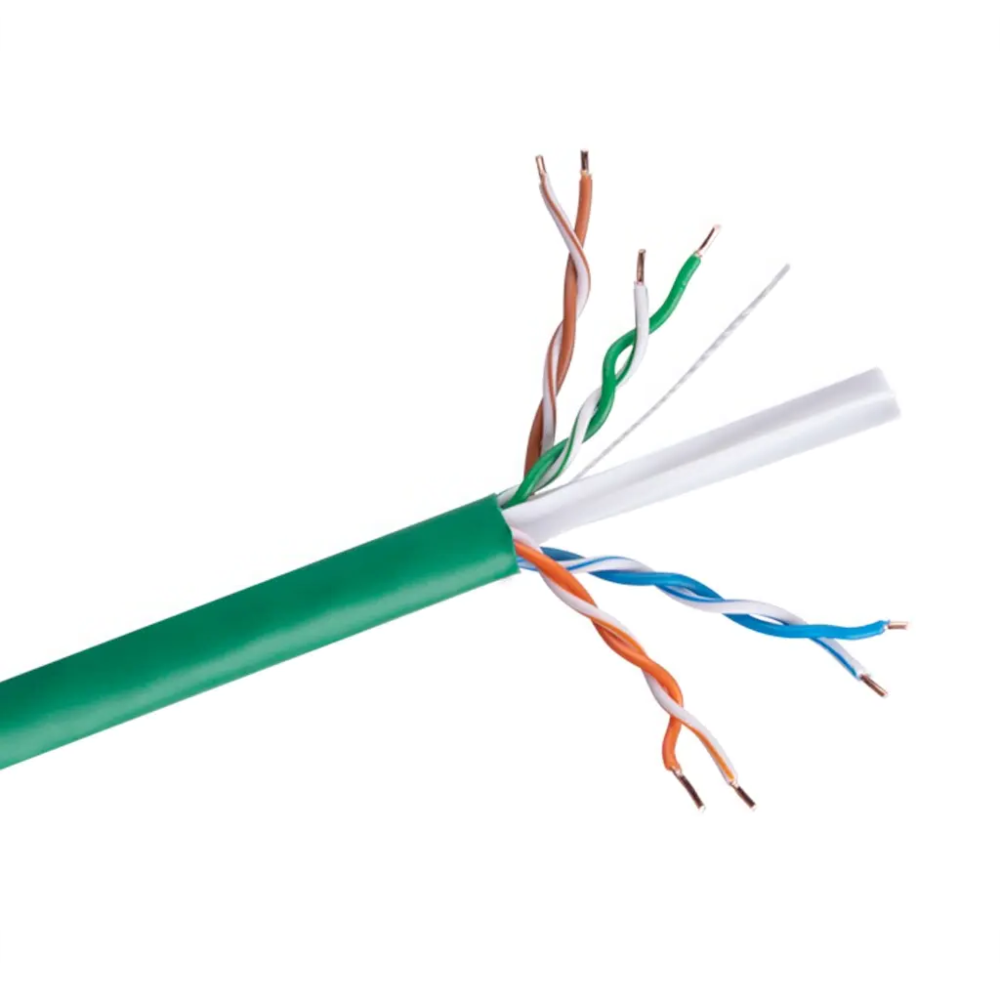

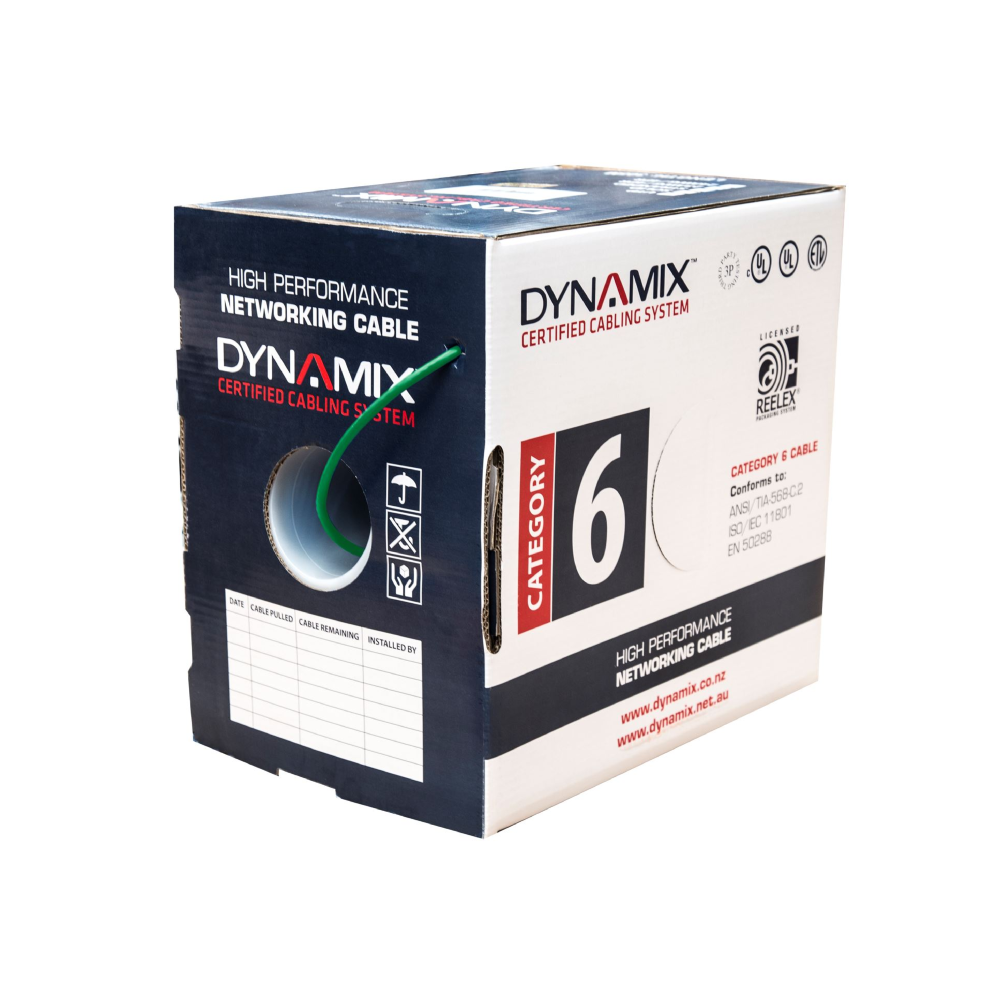

Dynamix C-C6-SLD24-GREEN 305m CAT6 GREEN UTP SOLID Cable Roll, 250MHz, 24AWG x 4P, PVC CM UL Rated Jacket – Supplied on Plastic Reel in Pull Box
SKU: C-C6-SLD24-GREEN
Categories: Cables & Accessories, CAT6 Cable
Tags: 305m, Cable, CAT6, Dynamix, Green, Network
Dynamix C-C6-SLD24-GREEN 305m CAT6 GREEN UTP SOLID Cable Roll, 250MHz, 24AWG x 4P, PVC CM UL Rated Jacket – Supplied on Plastic Reel in Pull Box
Key Features :-
- 305m Solid UTP CAT6 Cable Box
- Green Colour
- 24AWG
- PVC CM UL Rated Jacket
- HDPE (High Density Poly Ethylene) Inner Insulation
- SOLID-Bare 24AWG Copper
- 250MHZ Rating
| onductor | Material | SOLID-Bare Copper |
|
24AWG |
||
| Insulation | Material | HDPE |
| Diameter |
0.87 ±0.03mm |
|
| Colour | A. White-Blue, Blue | B. White-Orange, Orange |
| C. White-Green, Green | D. White-Brown, Brown | |
| Rip-cord | Yes | |
| Drain Wire | No | |
| Sheath | Thickness | 0.55 ±0.05mm |
| External O.D. | 4.9 ±0.4mm. | |
| Surface | Clean, Frap, Satiation | |
| Material |
PVC (RoHS Complied) & CM rated (UL E225668) |
|
| Colour | Green | |
| Sheath Physical Properties | Before Aging | Tensile Strength (Mpa) ≥13.5/Elongation (%) ≥150 |
| Ageing Period (°C x hrs) | 100°C x 24h x 7d | |
| After Aging | Tensile Strength (Mpa) ≥12.5/Elongation (%) ≥125 | |
| Cold Blend (-20 ±2°C x4h) | No visible cracks | |
| Electrical Characteristics (20°C) | 1.0-250.0MHz, Characteristic impedance (Ω) | 100 ±15 |
| 1.0-250.0MHz, Delay Shew (ns/100m) | ≤45 | |
| DC Resistance (Ω/100m) max | 11.0 | |
| DC Conductor Resistance Unbalance (%) max | 5.0 | |
