Dynamix RJ-45PTC6AS-50J

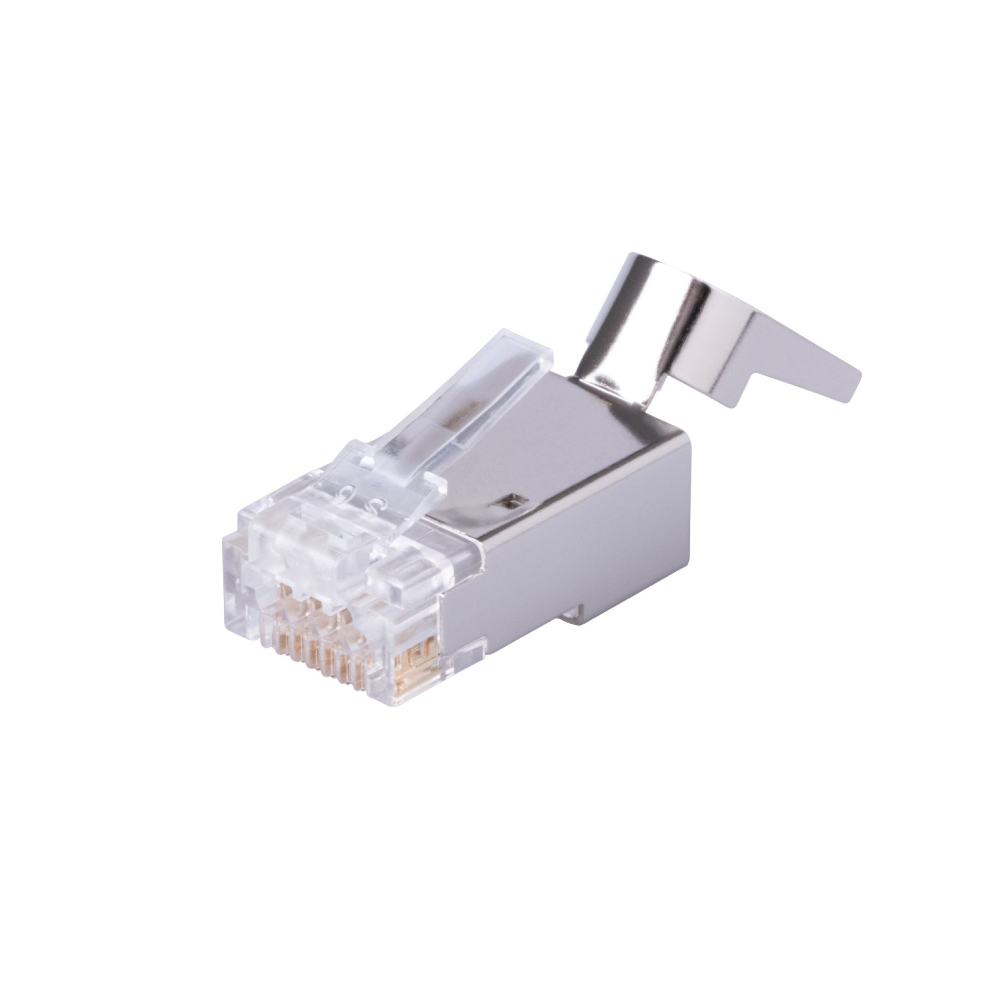

Dynamix RJ-45PTC6AS-50J CAT6/6A STP External Ground Push Through / Pass Through Modular RJ-45 Plug – 50 * Pieces Pack in A Jar
Dynamix RJ-45PTC6AS-50J CAT6/6A STP External Ground Push Through / Pass Through Modular RJ-45 Plug – 50 * Pieces Pack in A Jar
Our DYNAMIX RJ45 Pass-through modular plug connectors are designed to simplify the process of terminating RJ45 modular plugs, by allowing the wires to be inserted through the connector and out the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector this optimizes the performance of the termination.
Key Features :-
- Wire conductor up to 23AWG
- Gold plated 50 Micron rated connectors
- Supports Solid and Stranded Cables
- Transparent polycarbonate
- Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Compatible with “Platinum Tools” crimping/cutting tools
|
Wire Conductor |
23AWG |
|
Flame Auto-extinguish |
UL94V-2 |
|
Shielded Material |
Hard Brass (CAT6/6A STP Plugs Only) |
|
Plug Material |
Transparent Polycarbonate |
|
Insertion Life |
2000 Minimum cycles |
|
Certification |
ANSI/TIA568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
